Cable Genie

Keeping a particular minimum cable insulation thickness is a requirement by many standards world over, which the companies have to comply with. The big trade off for the cable companies is to keep the material minimum so that the costs are controlled and on the other hand keep the minimum thickness more than the statutory requirements. For this to be possible, exact measurements of the insulation thickness measurement are very important.

Salient Features
  • Better Accuracy leads to increased profitability
  • Faster results: Measurement time is less than 1 second
  • Operator Independent
  • Can be used both in laboratory and on the production shop floors.
  • Reduce Errors and measure diameter and ovality also

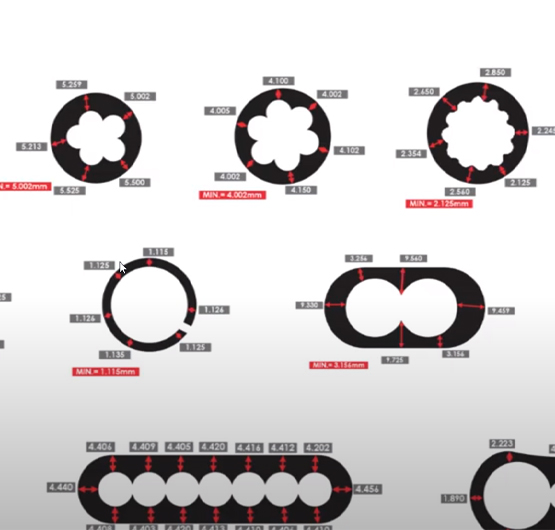

Sipcon Introduces the fastest cable measurement system ever- Cable Quickie. Now measure any kind of 2D geometry in parts with just one click. This ONE CLICK MEASUREMENT SYSTEM is capable of measuring You have all the results displayed on the screen with the indication of pass and fail. Fully customisable excel report formats with width deviation analysis, trend analysis, etc.

The reports are according to EN 60811-1-1 and IS: 10810 standards. With features like 360° compensation, you can keep the part in any orientation and no need for any reference for measurement. More than 10000 points on a feature guarantee utmost accuracy and repeatability and features like batch processing makes measurement of multiple parts in one click.

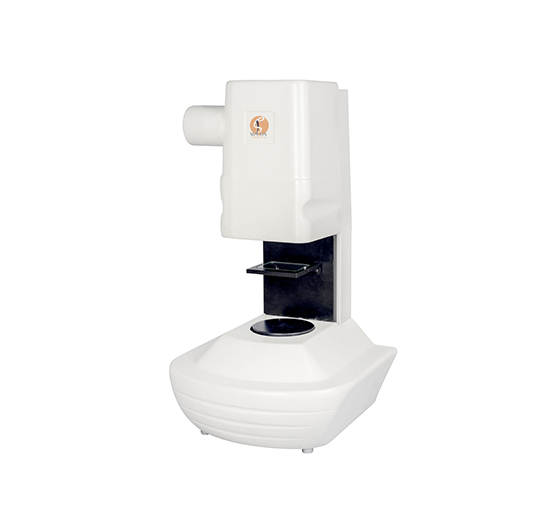

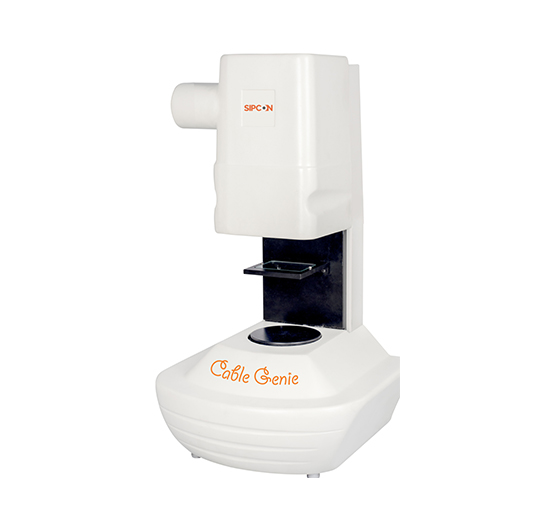

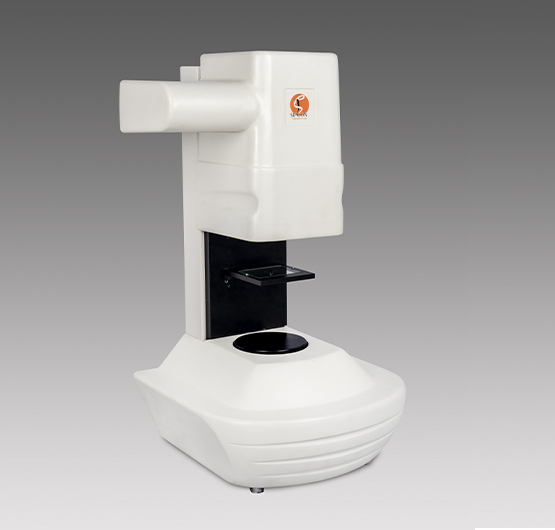

Cable Genie
Pdf download icon

To know more about this product —

Download Product Catalouge

Model SVI-CQ-16 SVI-CQ-36 SCI-CQ-48 SVI-CQ-64 SVI-CQ-120 SVI-CQ-144
Max. Sample Diameter 16mm 36mm 48mm 64mm 120mm 144mm
No. of Cameras 1
Camera 5MP Industrial Camera (optionally upto 16MP)
Accuracy ±10μm ±15μm
Repeatability ±5μm ±10μm
Least Count 0.1μm
Illumination-Surface (optional) LED
Illumination-Countour LED
Focusing Range Optional(30mm)
Power Supply 110/220V @ 50Hz ±5%
Machine Weight 25Kgs. 35Kgs. 42Kgs. 50Kgs. 80Kgs. 95Kgs.
Interface USB/Ethernet
Optional Hardware Laptop/PC with WIN7/8 operating system
Base Platform & Column Metal
Auto Alignment 360° Compensation
Max. Measurement Point 10,000
XLPE Cable Optional
Color percentage Module Optional
Touch Screen Monitor Optional
Table Optional (Floor Standing)
Software Features
Element Tools Point / Line / Circle / Arc / Distance / Angle
GD&T Concentricity / Eccentricity / Ovality / Cross-Sectional Area
Edge Detection AutoTools / Auto Edge Detection
Manual Measurement Yes
Coordinate System Configuration Yes
Element List Editing Yes
Colour Measurement System Optional
Measurement of Images Yes
Report Format Customizable
Foot Switch Optional

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Outer Sheath 3 Core

Outer Sheath 3 Core

Outer Sheath 4 Core

Outer Sheath 4 Core

Outer Sheath 5 Core

Outer Sheath 5 Core

Outer Sheath 6 Core

Outer Sheath 6 Core

Multi Core Sheaths

Multi Core Sheaths

Sectoral Cable

Sectoral Cable

Cut Sectoral Cable

Cut Sectoral Cable

XLPE Cable

XLPE Cable

Cut Single Core Cable

Cut Single Core Cable

Twin Flate Core Cable

Twin Flate Core Cable

Figure 8 Cable

Figure 8 Cable

3 Flat Core Cable

3 Flat Core Cable

Multi Flat Core Cable

Multi Flat Core Cable

Flat Core Cable

Flat Core Cable

Benefits of This Products

Measure from 0.5 mm -144 mm cable diameter.

XLPE cable and color percentage measurement.

10000 points to calculate the minimum thickness.

Measurement in less than 1 second.

Customized reporting formats.
