Precision 2D & 3D measurements with advanced optics and smart software.
Our Vision Measuring System is engineered for uncompromising precision making it the perfect choice for industries like automotive, aerospace, and electronics.

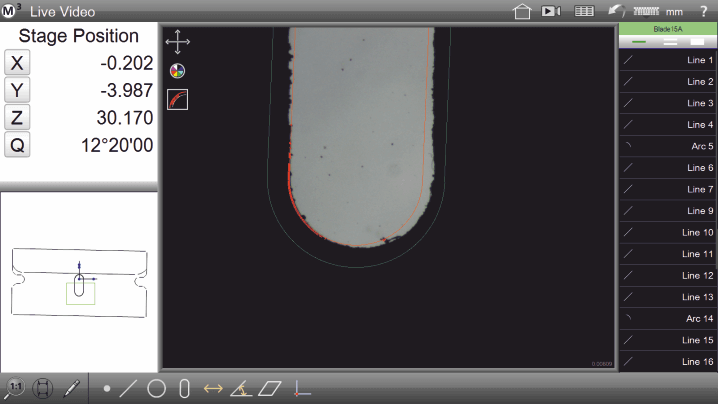

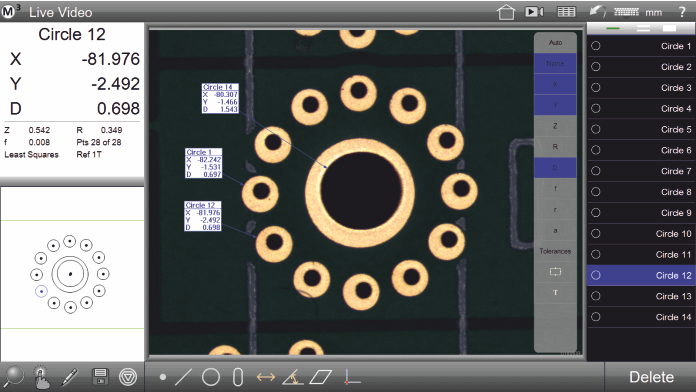

The system comes with intelligent edge detection technology that automatically identifies edges with micron-level precision, eliminating the need for manual alignment
Experience precision lighting like never before. The system offers software-controlled illumination with adjustable intensity and multiple lighting modes, ensuring clear visibility of even the most intricate features.

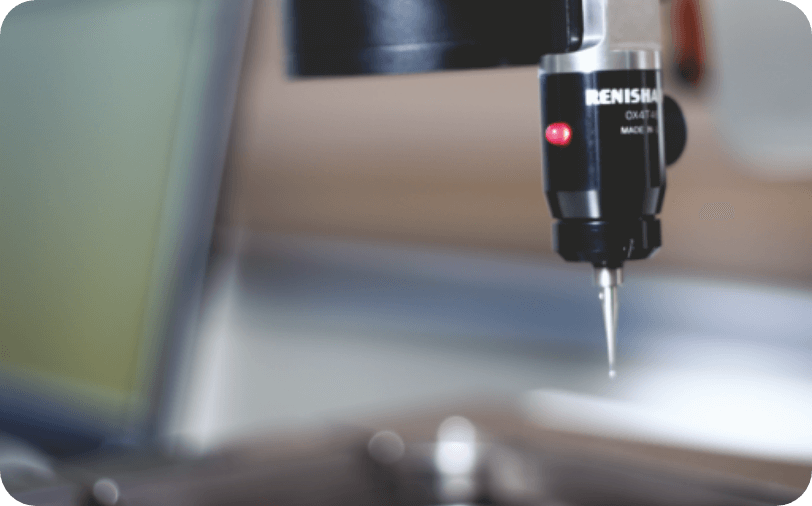

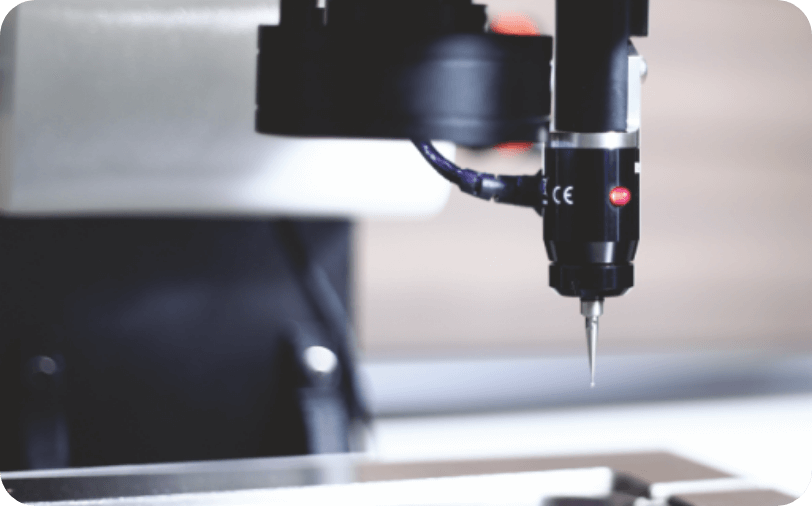

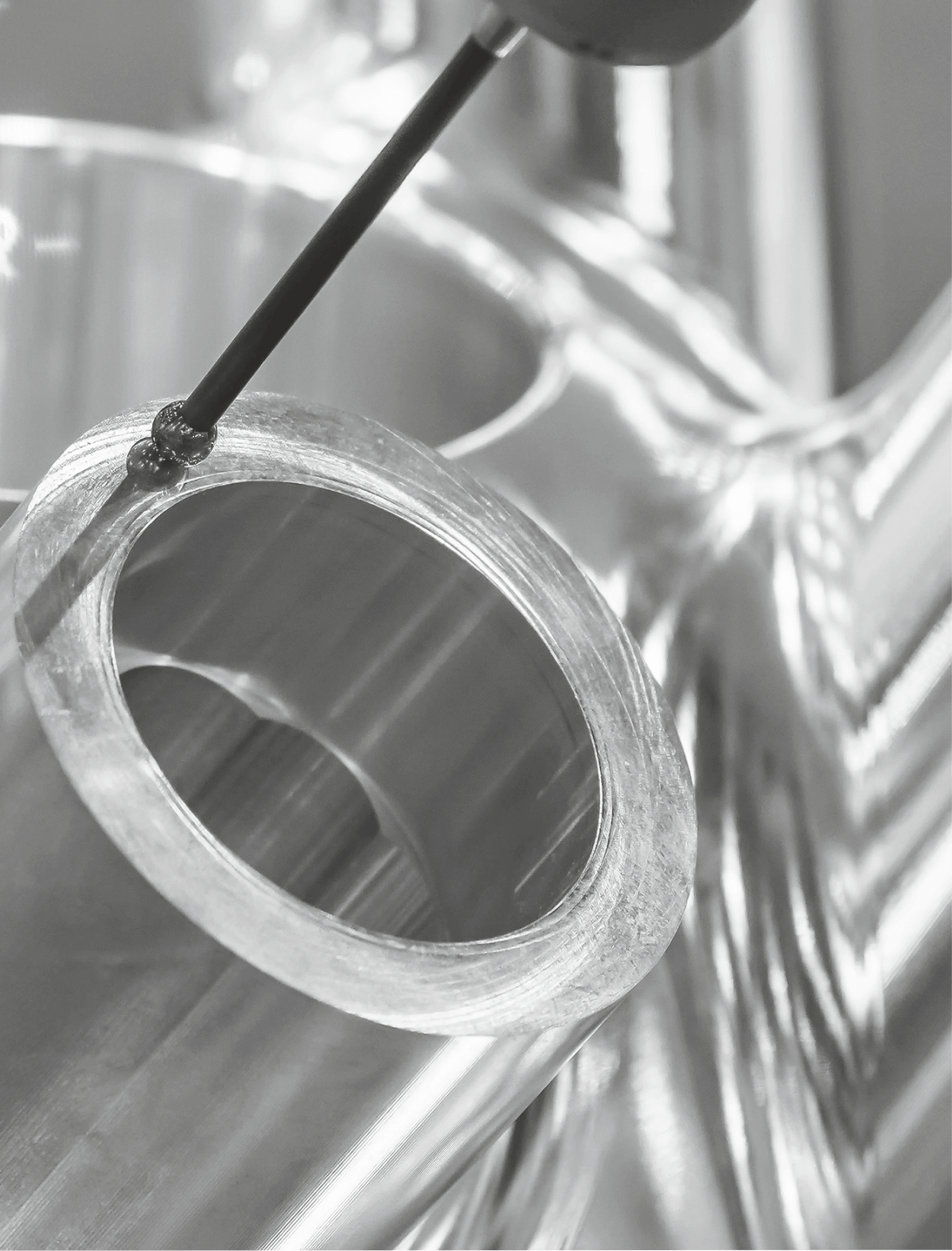

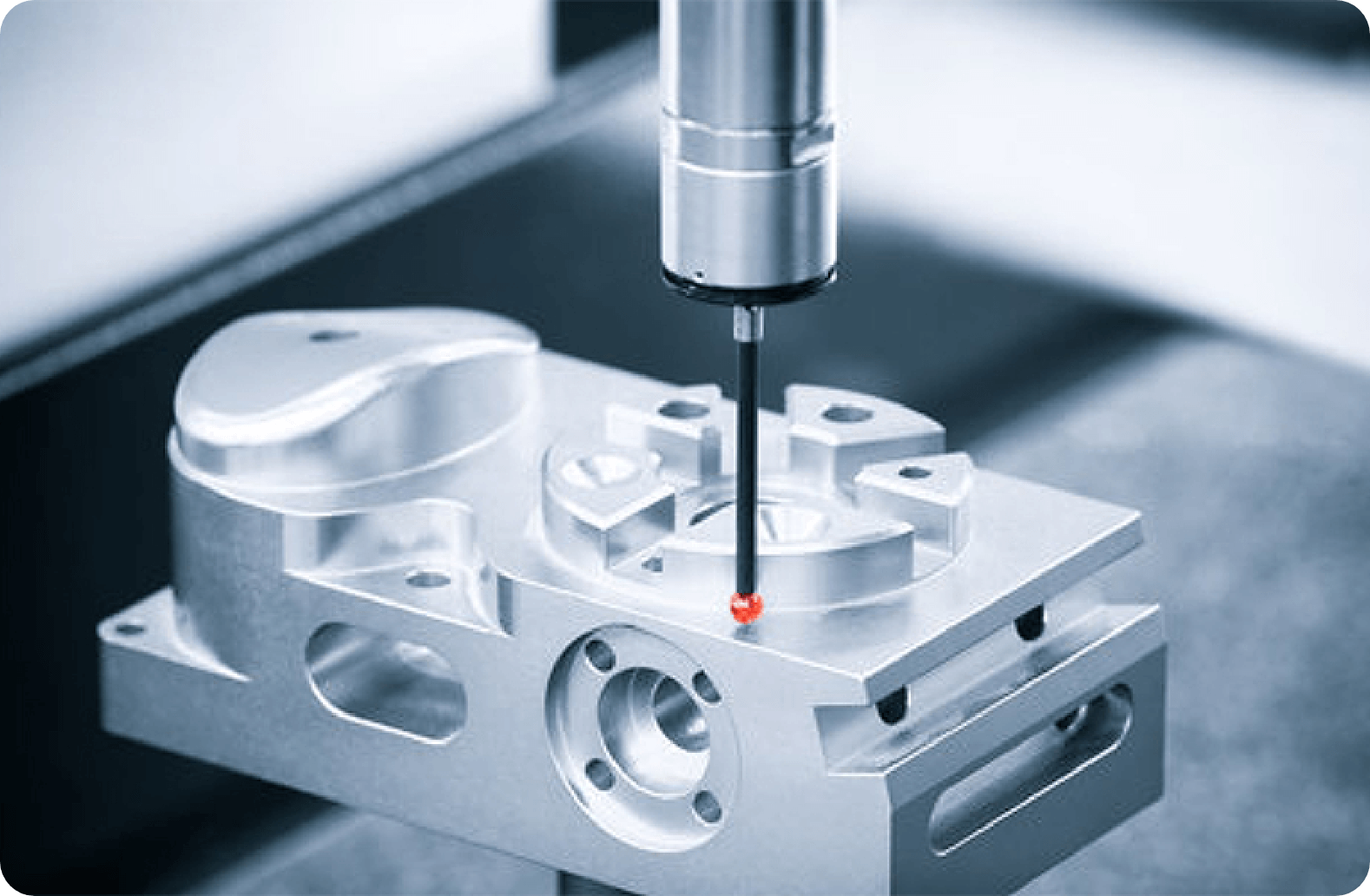

This probe is ideal for components requiring depth, height, and geometric dimension analysis. Whether you’re inspecting automotive parts, plastic components, or intricate assemblies
Achieve precision across angles, contours, and radii simultaneously
4 channel light controller with programming capability for each channel i.e. intensity value for each channel source would be memorized in the program and would be repeated at the time of running.

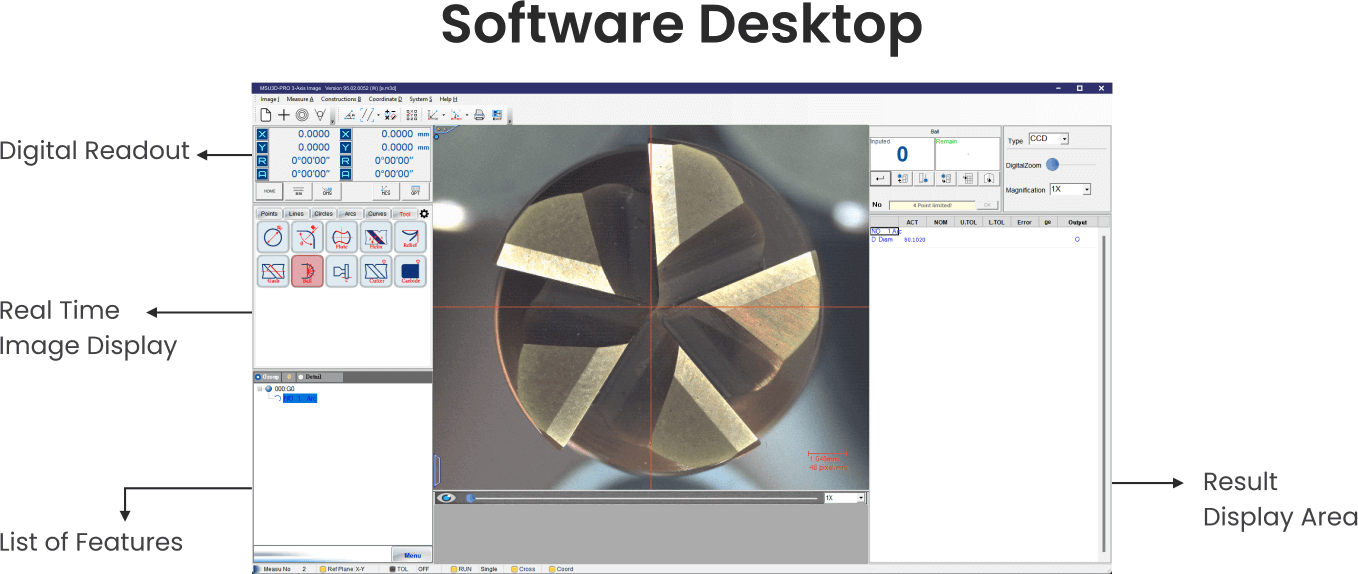

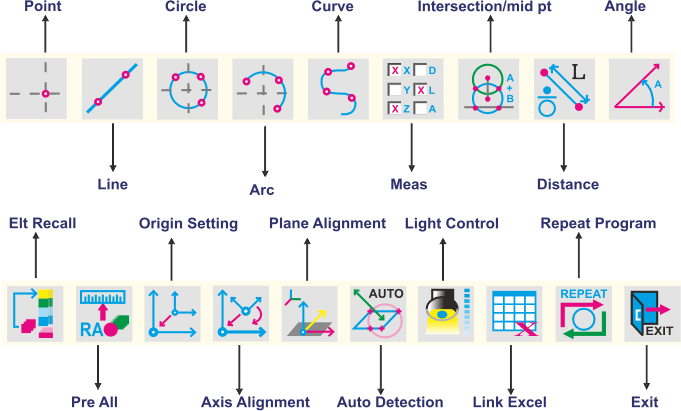

One Click Menu bar for all geometric measurement origin setting, axis alignment, MS-excel output & Programming.

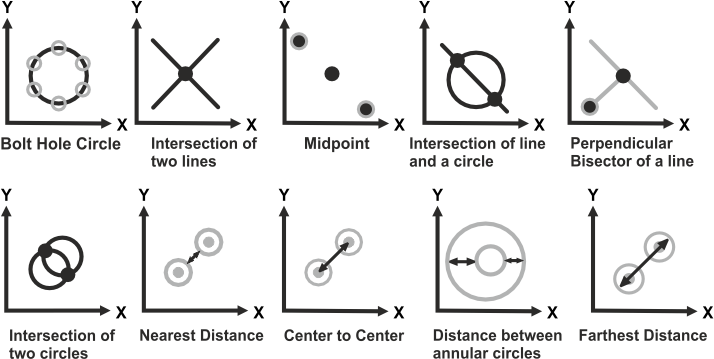

Select two or more features to create intersections or constructions. This reduces operator effort by eliminating confusing construction menus.

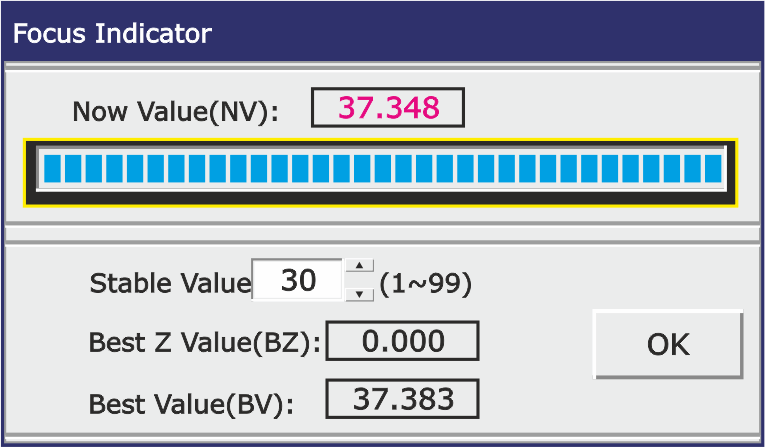

This will indicate the best focus value and the corresponding Z value to make sure focus is clear before measurement. A must to do for 3-D Measurement

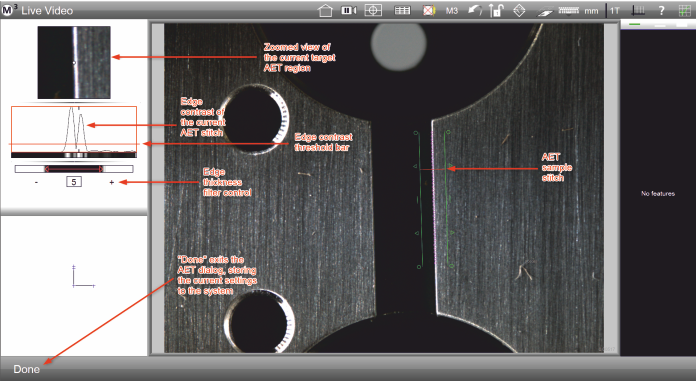

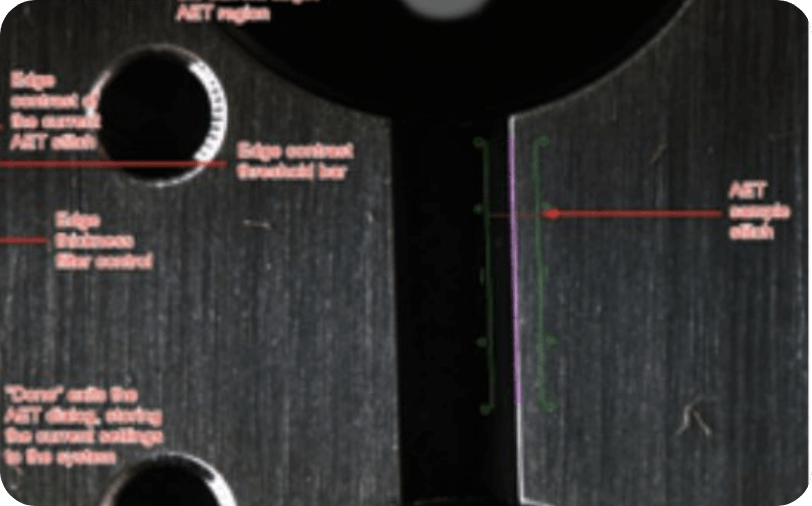

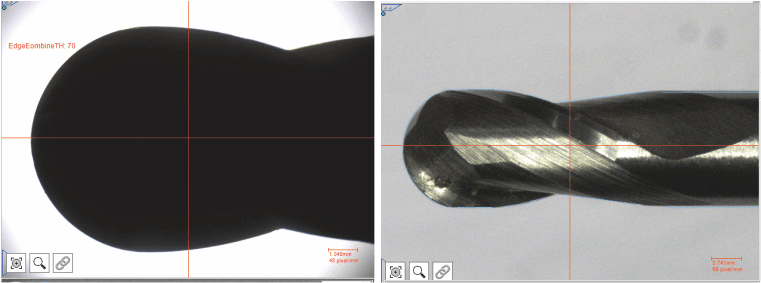

Improve edge detection performance under a variety of image and lighting conditions. Features with poor edge contrast, or difficult spacing can be captured in a snap.
CAD overlays (DXF Files) can be easily imported for “comparative style” Go/No-Go feature and part inspection. This includes a live error whisker display for violations of the original DXF tolerance zones.

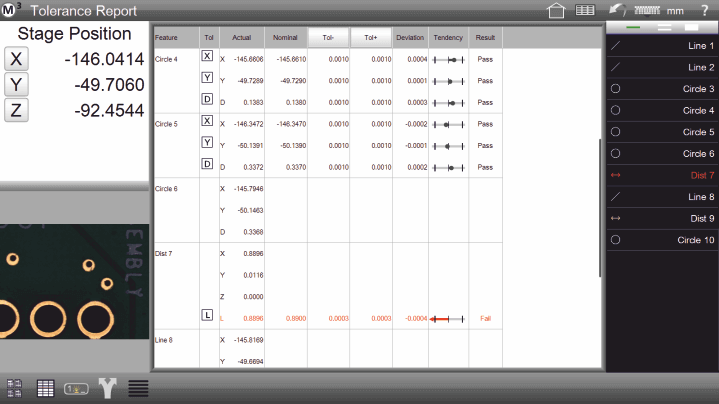

• Data format
• Header information (Company Name)
• Header and footer graphics (Logo and Page no)
• Add Part view graphics in report
• Add time and date stamps
• Add operator or part information

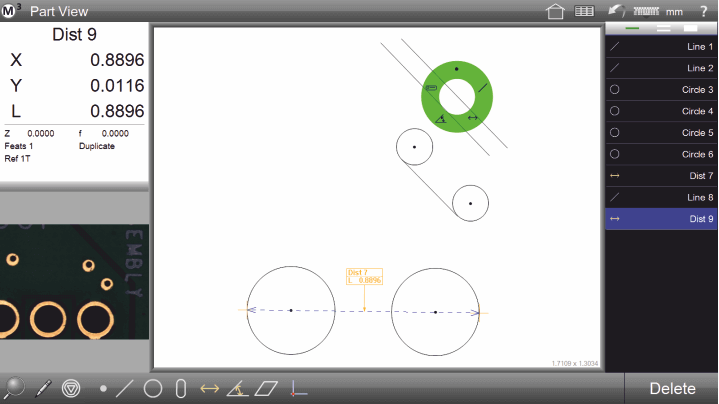

Gain access to instant feature tools using the part view “Gesture Menu”. Add customized feature data to your live video image or part view displaying only the desired coefficients.
Points: Average , Mid/Center, End, Intersections Distances: Shortest, Center to center, point to point, Farthest Lines: Tangent, Mid lines, Offset Skew Lines Perpendicular/Parallel, Bisector , Gage. Circles: Bolt Circle, Gage Circle(s), P.C.D Angle: Compliments
