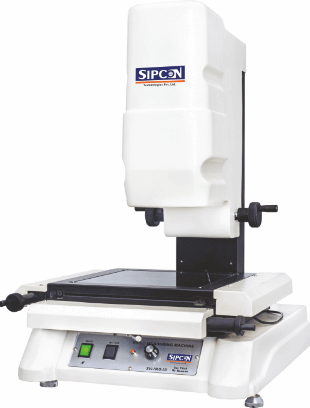

Precision 2D & 3D Measurement with Optics and Intelligent Software
Built for high-accuracy dimensional measurement for Italy's automotive, electronics, plastic and rubber parts manufacturing industries, — Get insights from the leading manufacturer of video measuring systems.
The Vision Measuring System uses Contour detection technology which automatically gives micron-level precision eliminating time of manual alignment

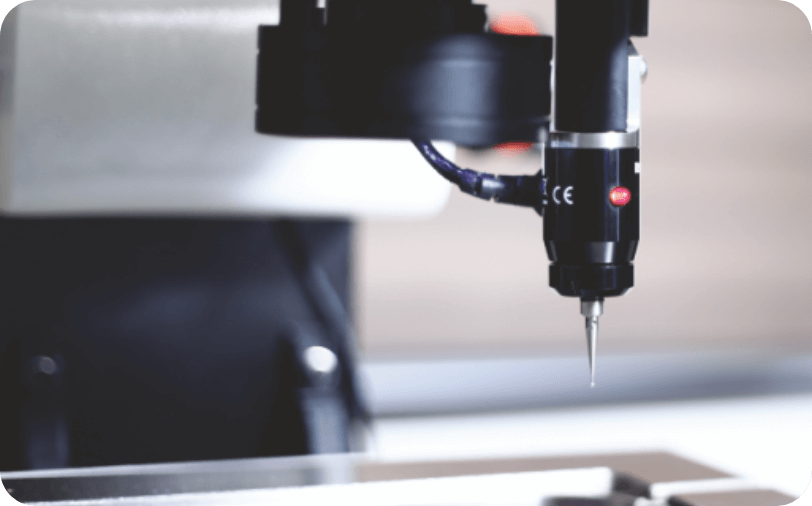

The Vision Measuring System provides unmatched precision lighting with software controlled lighting fully Customizable brightness and multiple lighting conditions to get specific detail that it be visual or measurement

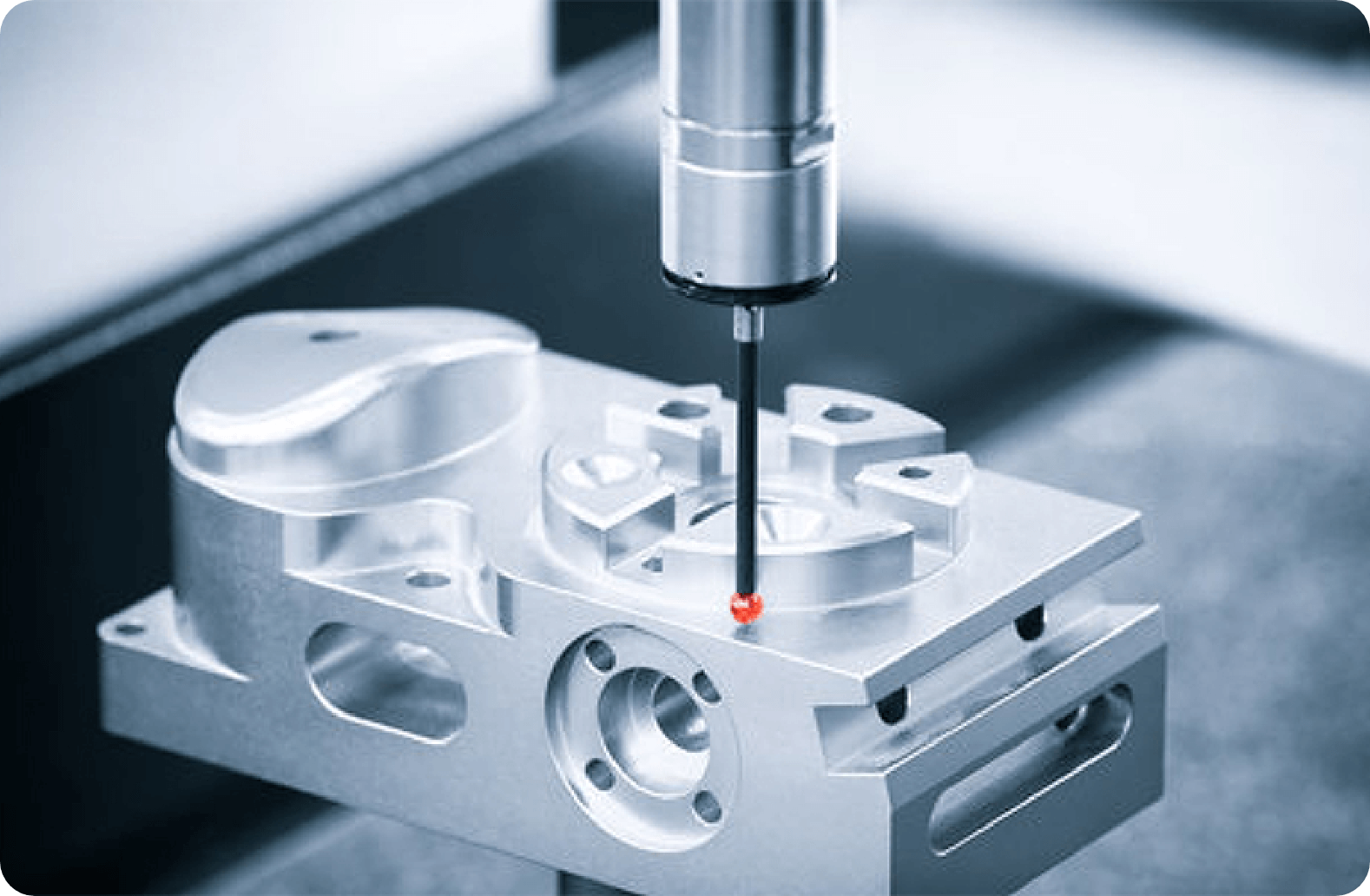

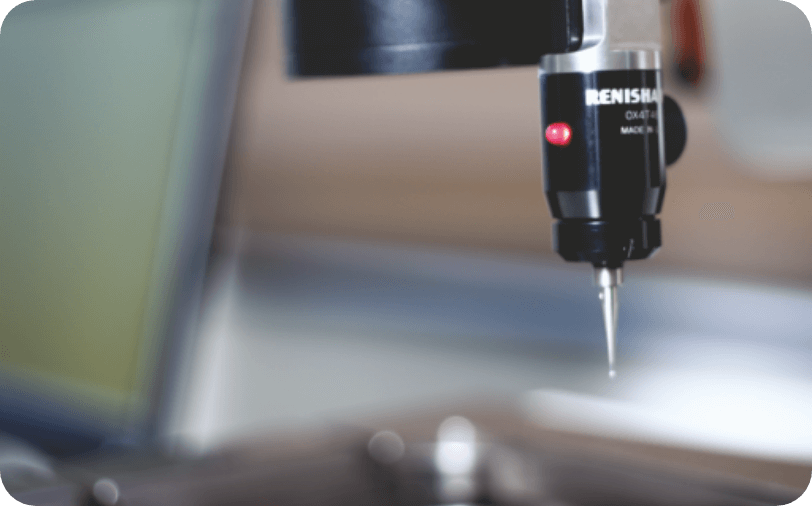

This probe is well-suited to the measurement of depth, height, and Geometric parameters for a variety of parts. Whether measuring parts from the automotive industry, plastic parts and complex assemblies, the inspection will be consistent and accurate
Witness precise measurements simultaneously in angles, contours, and radii
The 4-channel lighting lets each channel to be programmed separately with focused brightness settings that are recalled for each measurement and consistent results for consistency of sample testing

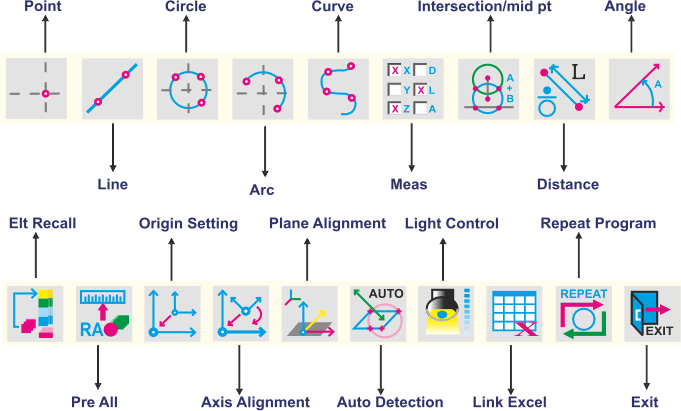

The one-click menu gives quick access to Geometric parameters, axis alignment, Excel export, and programming for fast, seamless operation
Choose two or more measurement features and create intersections or constructions to speed up the process for the operator by eliminating complex measurement construction menus
The system uses the best focus position and corresponding Z value, ensuring focus is confirmed to measurement and the most important step for précised 3D inspections

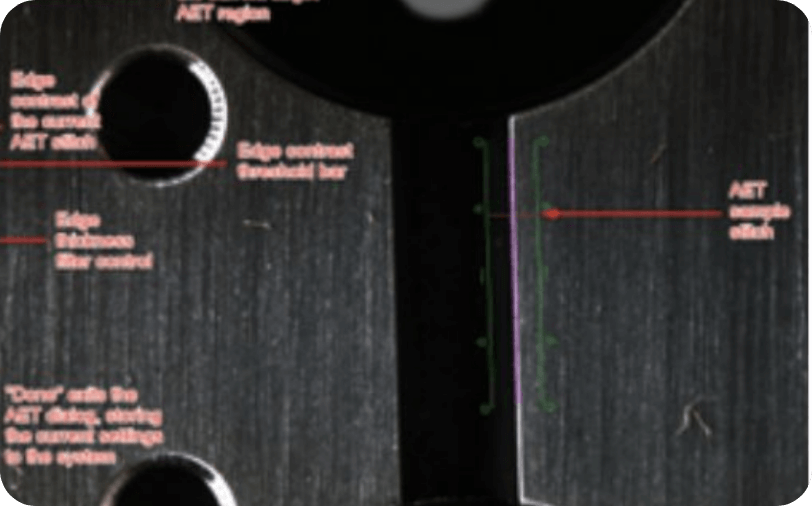

Edge detection efficiency for different imaging conditions and lighting situations. Even features that are low contrast or tightly spaced can be checked effectively and quickly

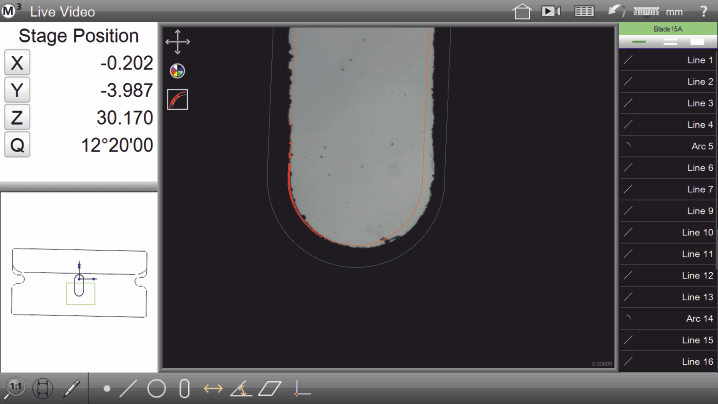

Import your CAD overlays (DXF files) for “comparative style” Go or No-Go inspections. The system also gives a live error whisker display indicating where your contour detection strayed from the original DXF Control limits
• Flexible data formats
• Include company name
• Provide logos and page numbers
• Include images of part view
• Include time and date stamps
• Record operator and part info for full documentation

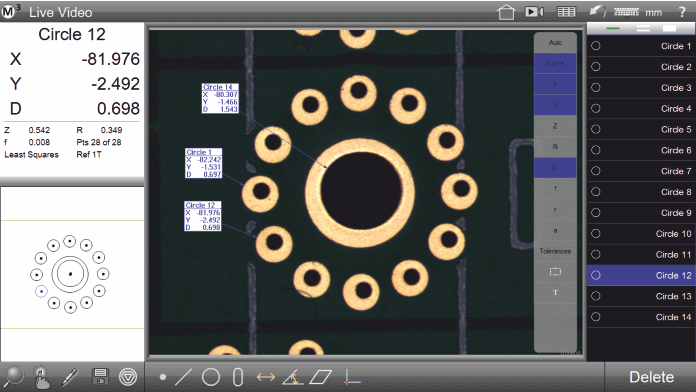

Easily access feature tools from the part view “Gesture Menu.” Select only feature data you want to view on your live video image, or part view live, for continuous and direct inspection of dimensions
Measurement Capabilities Points:
Average, Mid/Center, End, Intersections Distances: Shortest, C-C, P-P, Farthest Lines: Tangent, Midline, Offset, Skew, Perpendicular/Parallel, Bisector, Gauge Circles: Bolt Circle, Gauge Circle(s), P.C.D Angles: Complementary Angles
Explore all our dimensional measurement solutions together in one complete catalogue
Discover the entire range of highly- precision video measuring machine
Make a right decision with the expert measurement guide, If still confused do contact us for a quick call
