Precision 2D & 3D Measurements with Cutting-Edge Optical and Software Technology

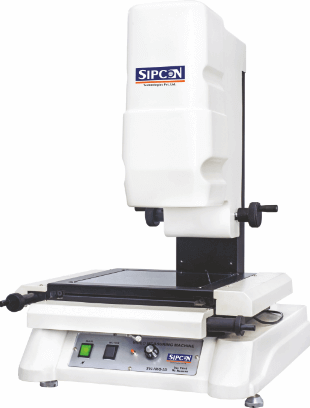

Our Vision Measuring System provides remarkable accuracy, making it the system of choice for automotive, aerospace, and electronics in Australia.
The system has a new intelligent edge detection technology that automatically detects edges within a micron, avoiding manual alignments.

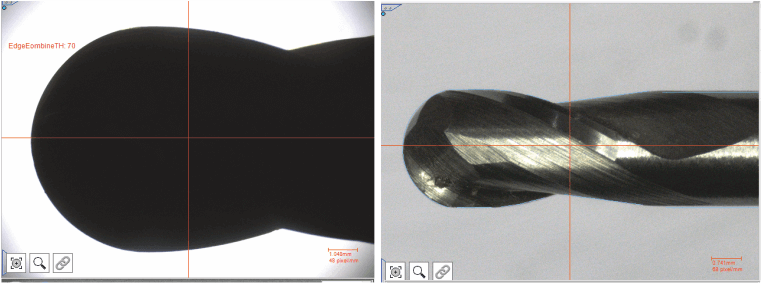

Discover precision lighting that you've never experienced before. This system brings you software control over illumination, adjustable light intensity, and many different lighting modes, ensuring even the most intricate details are visible.

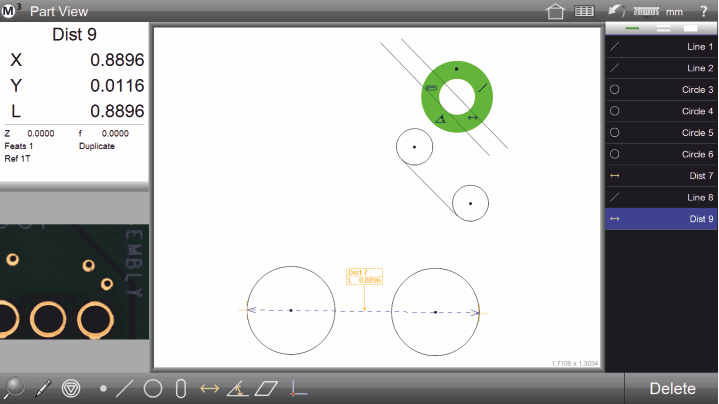

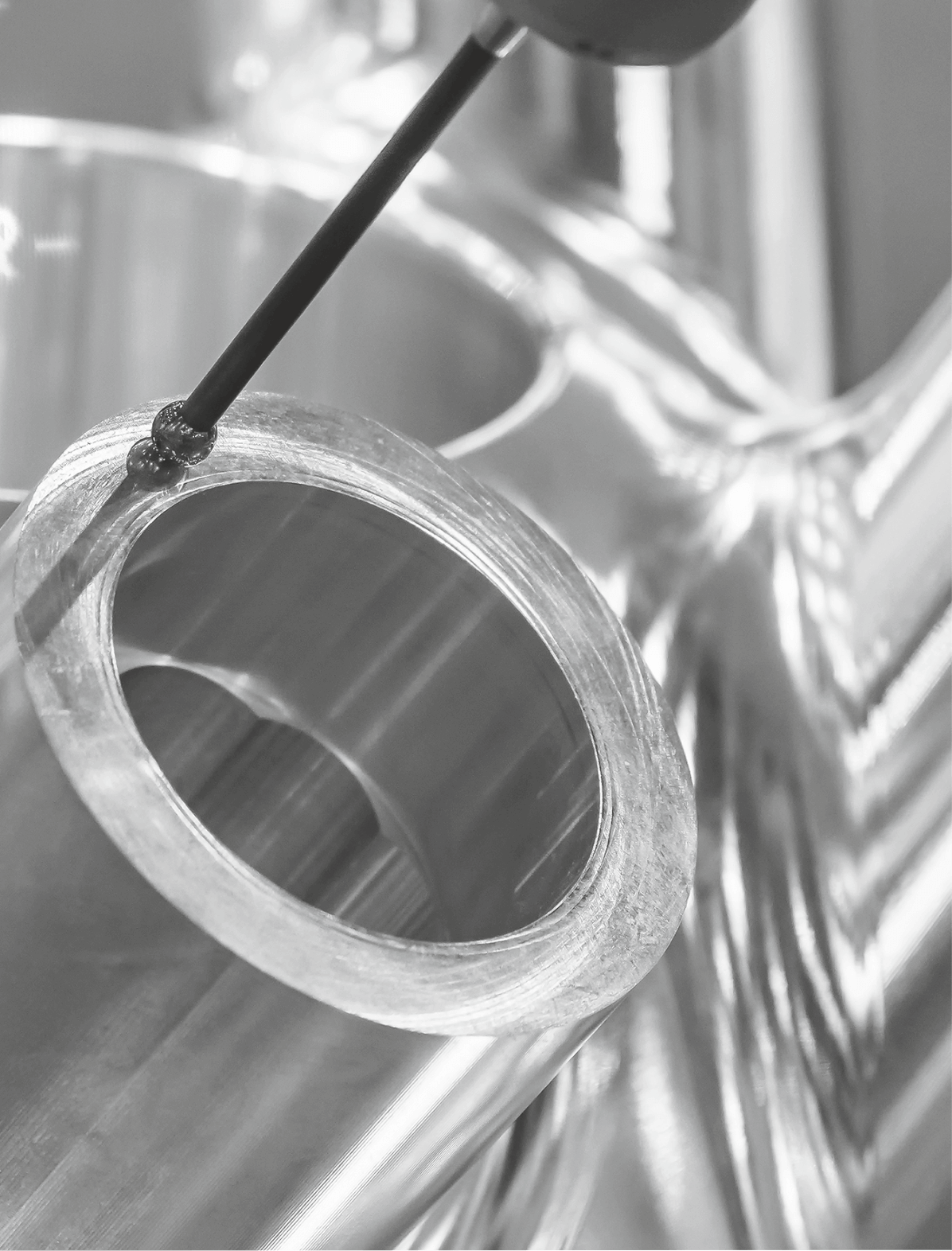

This probe is best suited for analysing depth, height, and geometric dimensions of components. plastic components, complicated assemblies you can be guaranteed accurate and reliable readings time after time.
Measure angles, contours, and radii all at the same time.
4-Channel Light Controller with Programmable Features The intensity of each light channel can be preset and stored in the program, which automatically utilizes the same light configuration every time the system runs.

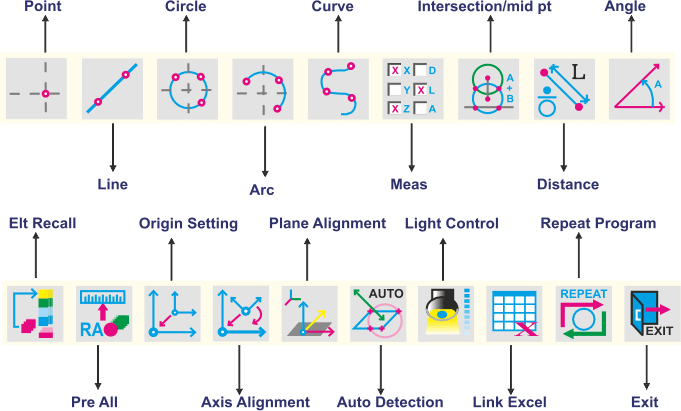

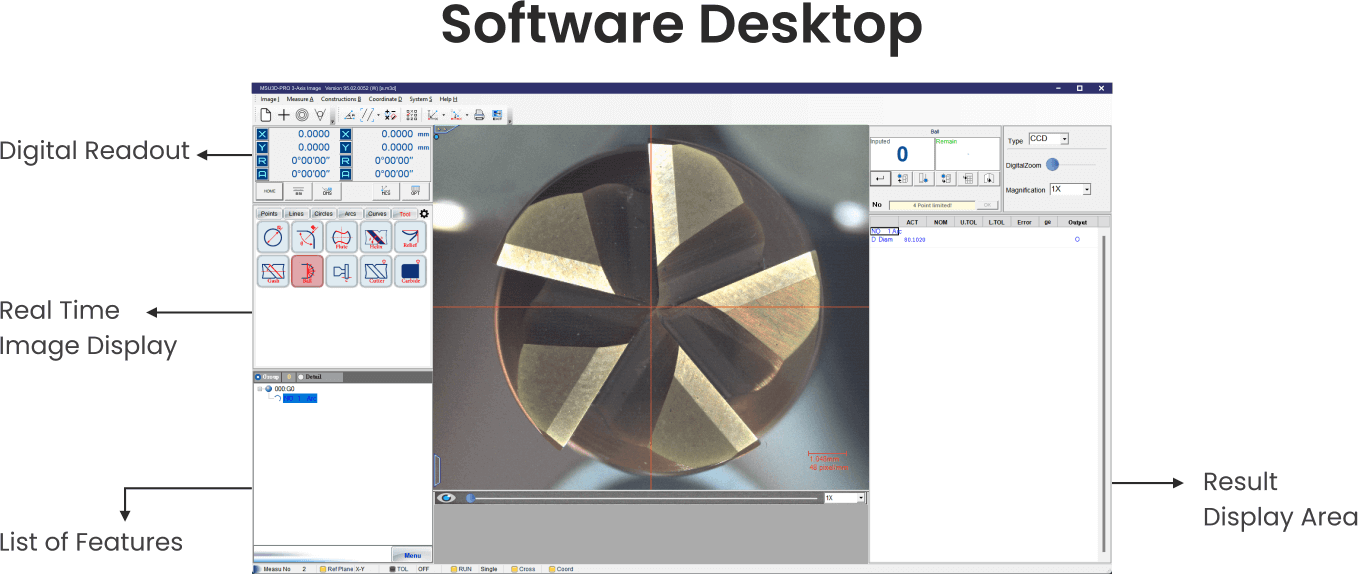

One Click Menu Bar - Easily establish measurement origins, align axes, export data to MS Excel, and manage programming functions with a single click.

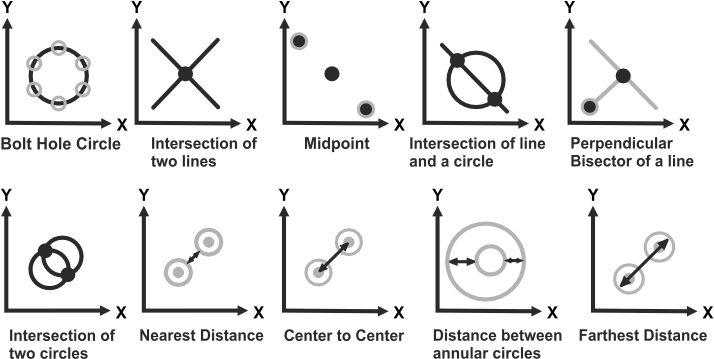

Select two or more features to create intersections or constructions. This reduces operator effort by eliminating confusing construction menus.

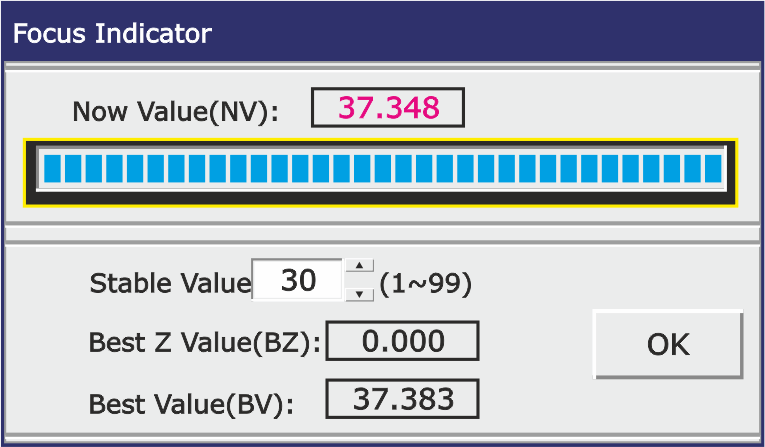

Automatically find the best focus at the associated Z value, and be assured of a sharp focus prior to measurement, which is a critical step in the quality of 3D inspections.

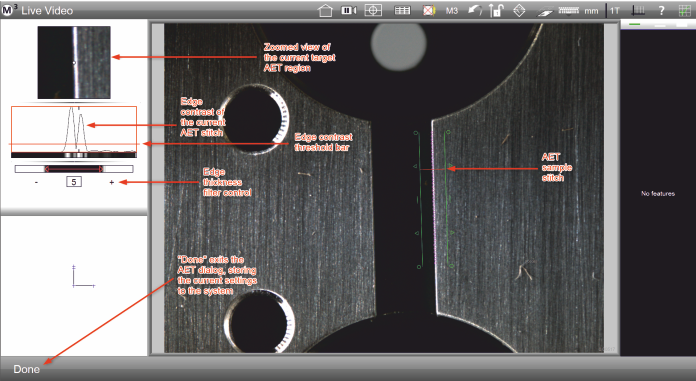

Improves edge detection performance under various light and imaging conditions - even under low contrast or when features are close together - and can do this quickly and accurately.

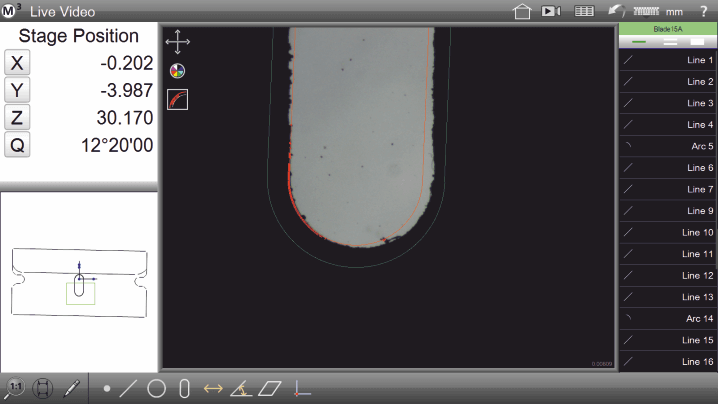

Quickly import CAD overlays (DXF files) to check Go/No-Go for comparative inspections. The system will provide a live error whisker display whenever the original DXF tolerance zones are traversed.

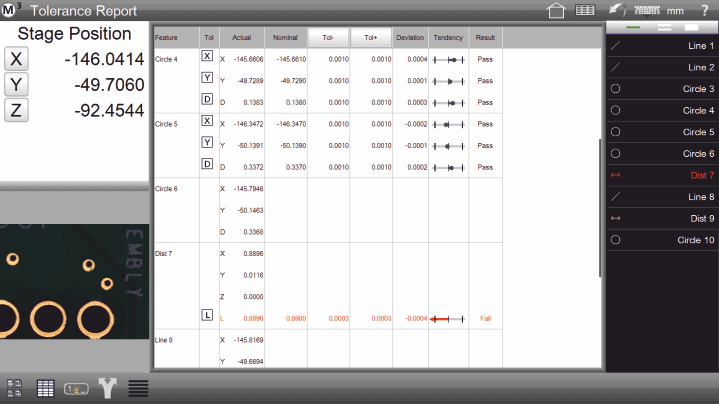

• Choose your preferred data format
• Include company name
• Add graphics (logo, page numbers)
• Insert part view graphics directly into the report
• Include time and date stamps
• Add operator or part details for complete documentation

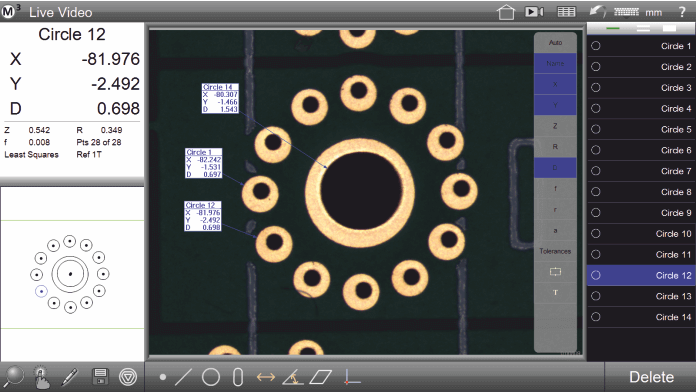

Instant Feature Access with the Part View “Gesture Menu” Quickly access essential feature tools directly from the part view. Add customised feature data to your live video image or part view, displaying only the coefficients.
Measurement Options:
Points: Average, Mid/Center, End, Intersections Distances: Shortest, Centre-to-Centre, Point-to-Point, Farthest Lines: Tangent, Midline, Offset, Skew, Perpendicular/Parallel, Bisector, Gage Circles: Bolt Circle, Gage Circle(s), P.C.D Angles: Complementary
