Optical Coordinate Measuring Machines

Optical Coordinating Measuring Machine is actually a big size vision measuring system, is used for quick and accurate 2d and 3d measurements of large parts like metal stampings, LCD panels with Video edge detection technique. Edges detection on high-resolution video with a single click making the measurement process fast and operator-independent.

Salient Features
  • Magnification range from 28X-180X
  • Measuring range from 400x400x200mm to 1000x1200x300mm
  • Full 3D software with least count – 1/0.5/0.1 micron
  • Fully integration with CAD for reverse engineering application
  • Autofocus
  • Thread less worktable – Zero Backlash

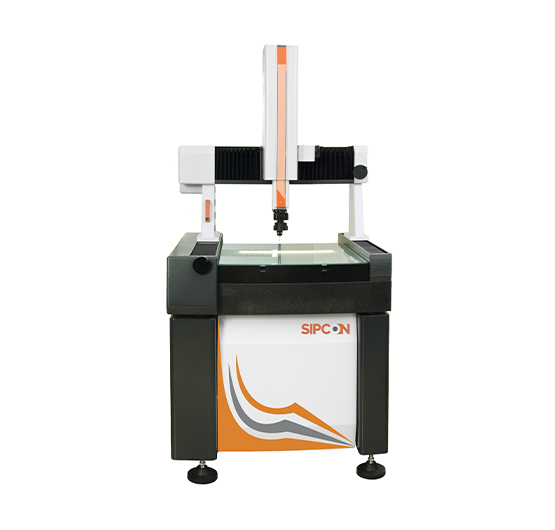

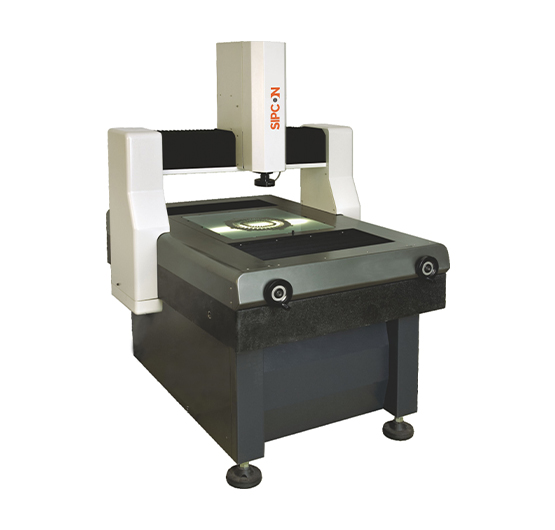

Sipcon Optical Coordinate Measuring Machines comes with bridge type structure like CMM but with an option for glass workstage with bottom, illumination to use video edge detection effectively. high-resolution telecentric lenses and a 5MP camera for bright and sharp images. The user-friendly 3D measurement software ensures the results are user-independent.

OCMM
Pdf download icon

To know more about this product —

Download Product Catalogue

Model No. SVI-OCMM-442 SVI-OCMM-662 SVI-OCMM-10122
Measuring Rang 400 X 450 X 200 600 X 600 X 200 1000 X 1200 X 200
Linear Accuracy UI 3+L/200 um 3+L/200 um 5+L/200 um
U2 5+L/150 um 5+L/150 um 6+L/150 um
Magnification Optical Magnification 0.7X - 4.5X & Magnification on Monitor 35X - 225X
Software Ik 5000
Resolution 0.005 / 0.001 / 0.0005/ 0.0001mm
Repeatability ± (0.003mm)
Transmission Linear Guide way + Rolling Drive nut Air Bearing
Vision 1/3" High Resolution CCD Camera)
Video Edge Detection Standard
Optional Hardware PC +19' TFT Monitor
Illumination Surface Fibre Optic/LED
Illumination Contour Halogen Lamp/LED
Operation Manual with Quick Release Knob / CNC
Base Platform & Column Granite DIN 876 Grade 0
Power Supply 220-240 V ± 5%, 50/60 Hz
Motion Control through Joystick Optional
Programmable Light Control Optional
Touch Probe Optional
Non-Linear Error Correction Optional
Platform Load Capacity 20Kgs Optionally upto 50 kgs
Machine Dimensions 1500 X 1150 X 1650 mm 1800 X 1700 X 1700 mm 2000 X 2200 X 1800 mm

This Product is Ideal For —

Stamping Industry

Stamping Industry

Electronics LCD/ LED Panel Industry

Electronics LCD/ LED Panel Industry

Benefits of This Products

GD&T Compliant

All GD&T tolerances like parallelism, perpendicularity, circularity, and true position, etc. can be measured in just one click.

Full 3D Software

Can be integrated with touch probe and can measure as a full fledged CMM.

Autofocus

Built-in autofocus option results in no focusing error and better accuracy in height measurement.

Reporting

Built-in 10 types of report format to choose from and also option to create your template.

Reverse Engineering

Compatible with all CAD modeling software in the market.

Accurate Worktables

Highly accurate worktable up to 500x400 mm with a load capacity of up to 25 kgs.
