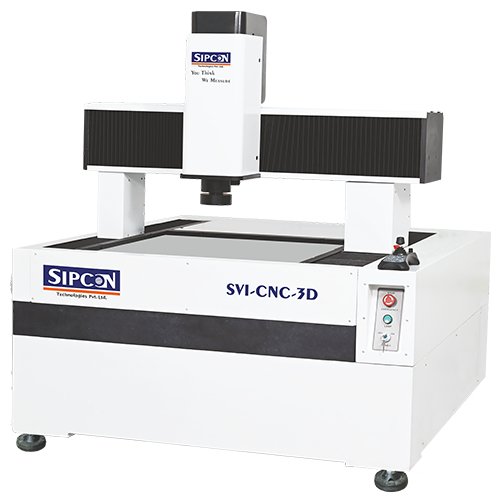

CNC Video Measuring machine or CNC Vision Measurement system provides noncontact dimensional measurements with speed, accuracy, and above all, flexibility. In general, with features that are mainly microscopic, or with flat parts where operators cannot physically touch an edge it is best to use a vision measuring system.
- Magnification range from 9X-500X
- Measuring range from 100x100x100mm to 500x400x300mm
- Full 3D software with least count – 1/0.5/0.1 micron
- Fully integration with CAD for reverse engineering application
- Stable Granite base construction
- Accurate Servo or Stepper motor CNC control system
- Autofocus
- Thread less worktable – Zero Backlash
Sipcon Video measuring machines are capable of measuring edges anywhere on the parts using a variety of lighting techniques like quadrant lighting, pad lighting, ring lighting and coaxial lighting. If something can be measured optically and tactilely then vision system will give you the fastest and most accurate results. High speed repetitive inspection even of complex geometric features increases productivity dramatically.
After first piece of inspection, measurement functions and stage movement are driven by the closed loop positioning system, and take place automatically, without operator’s intervention or subjectivity. Affords internal process control, lets you generate Histograms, X-bar, Range and sigma charts, and other pertinent capability and process control data.
| Model No. | SVI-CNC-3D | SVI-CNC-3D VT | SVI-CNC-3D VTL |
|---|---|---|---|
| Software | SIPMEAS | ||
| Measuring Range-Standard | 400 X 400 X 250 mm | ||
| ACCURACY NON-CONTACT OPTICAL SENSOR |
XY 1D: < 3 microns in 400 mm XY 1D: 1.2 + L/500 XY 2D: < 4 microns in 400 mm XY 2D: 2 + L/500 Z Direction: 1.5 + L/500 in 250 mm length |
||
| Accuracy Contact Sensor Touch Probe |
X,Y, Z: 2.5 +L/500 XY DIRECTION 2D 2.5 +L/500 |
||
| Repeatability | < 1.5 micron | ||
| Vision | CMOS 2MP with High definition image | ||
| Magnification |
Optics: 0.5x to 7.5x Objective lenses: 0.58x to 7.5x CNC Motorized Z`oom Lens with 5 steps |
||
| Autofocus | Enabled | ||
| Lighting | White LED light and Colour LED with | ||
| Computer System | i9 Processor, 24MB Cache Memory 128GB, 4X32,DDR5, 4800MHz, 1TB SSD, OS Win. 11Pro License., 32 GB RAM, Graphics: NVIDIA RTX A3000, 16 GB, GDDR6. 27” Color Monitor, Laser Jet Printer, Keyboard, Mouse and UPS. Latest Workstation with the Graphic Card | ||
| Illumination Contour | Calibration master(Optical Sensor and Touch Probe), Table, Voltage Stabilizer, Anti Vibration Pads, Standard Zoom Lenses, Mounting Hardware, Cleaning Kit & Case | ||
| Base Platform & Column | Granite | ||
| Speed | X-Axis 300mm/sec, Y-Axis 300mm/sec, Z-Axis 100mm/sec | ||
| Platform Load Capacity | 30Kg | ||
| Power Supply | 220-240 V ± 5%, 50/60 Hz | ||
| Motion Control through Joystick | Fully CNC motorized with joystick control | ||
| Structure | Bridge Type | ||
| Probing Error | < 2.5 micron | ||
| Programmable Lite Control | Optional | ||
| Non-Linear Error Correction | Optional | ||
| Autofocus | Optional | ||
