Accurate die geometry is critical for maintaining consistent wire quality and smooth drawing operations. Small changes in die angles and bearing length can negatively impact the drawing process. Possible consequences include
It is an advanced measurement system that helps in inspecting the whole dies geometry quickly and accurately
(1)(1).webp)

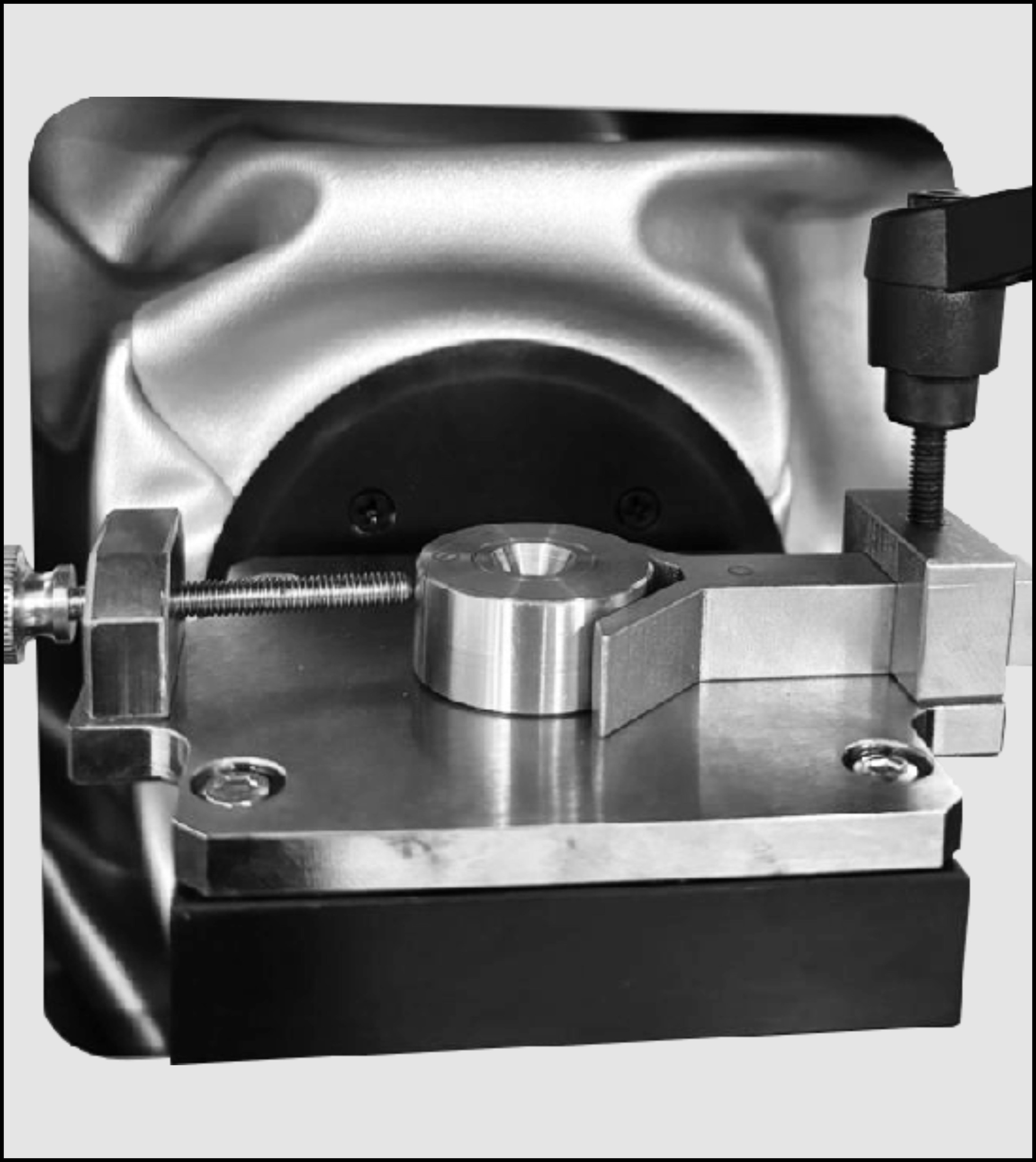

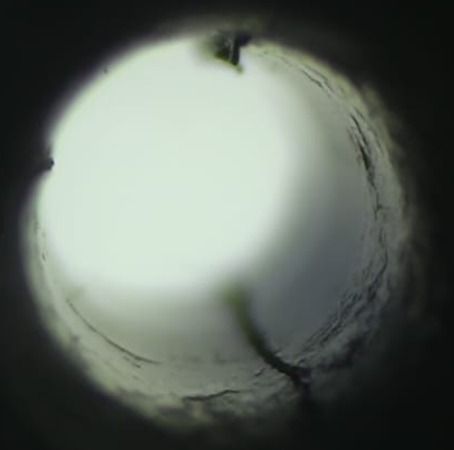

Highβresolution optical imaging helps in capturing the internal die geometry with exceptional precision for accurate profile inspection
.webp)

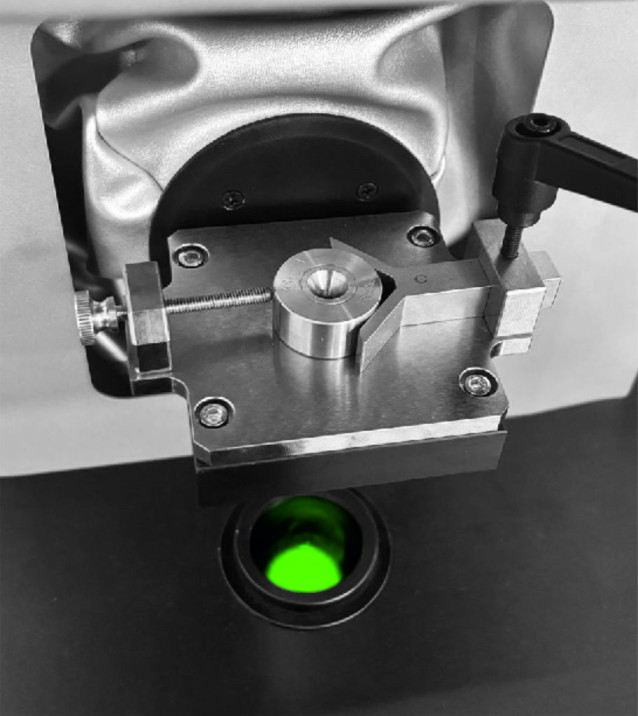

Collimated green light enhances the angles visibility, enabling clearer edge detection and improved measurement accuracy
Generate comprehensive inspection report automatically in Excel and PDF Formats for seamless documentation

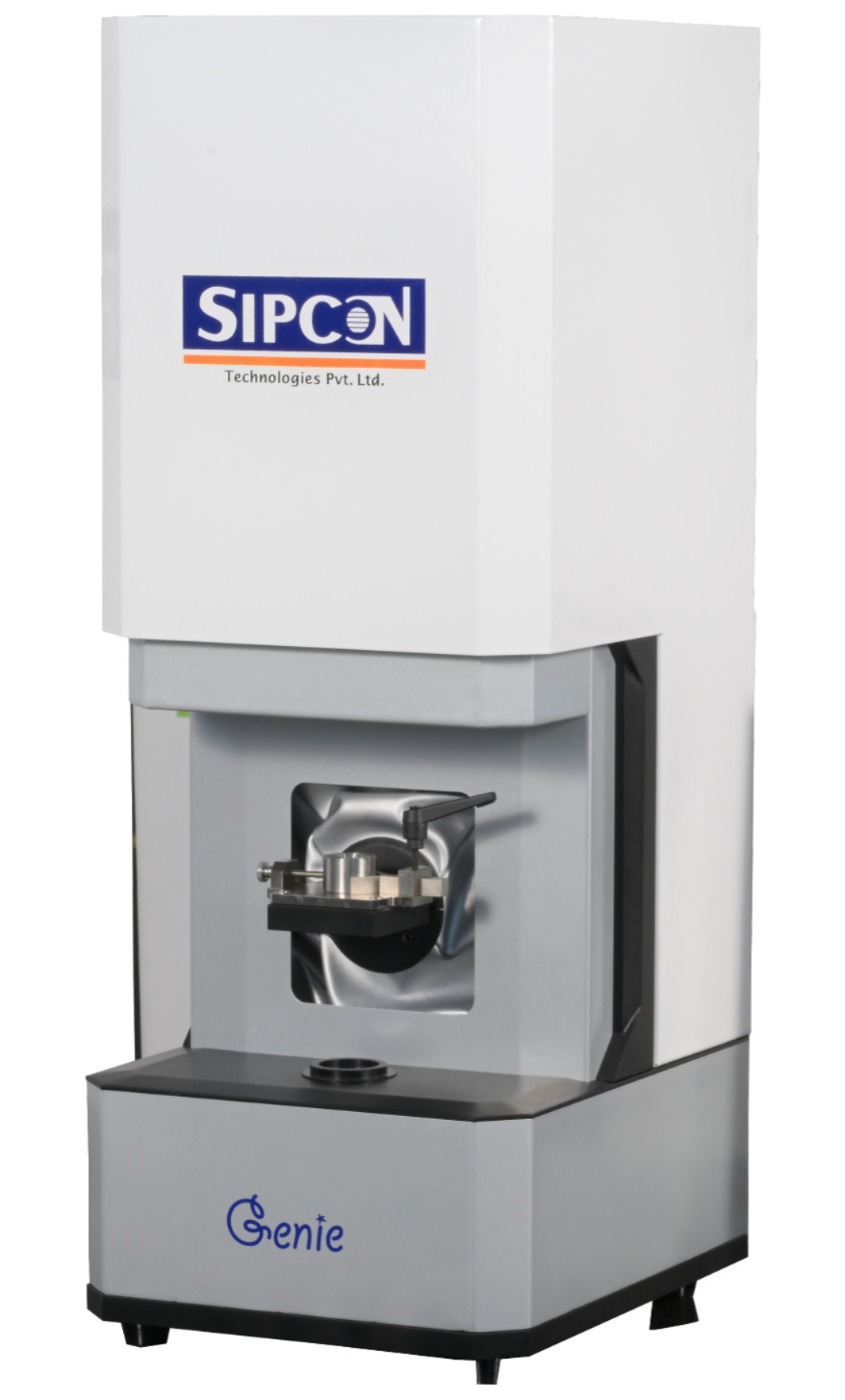

Drawing Die Measurement Machine measures critical die geometry parameters to the users to maintain drawing accuracy, improves process efficiency and ensure consistent product quality
See how this system can measure the every die from every angle with Drawing Die measurement system
Connect with our expert to find the right solution for drawing die geometry measurement
Sipconβs advanced solution for measuring shaped dies Quickly and reliably of Complex profiles too. Built for wire, cable and extrusion industries, it provides consistent results and simplified operation with oneβtouch measurement

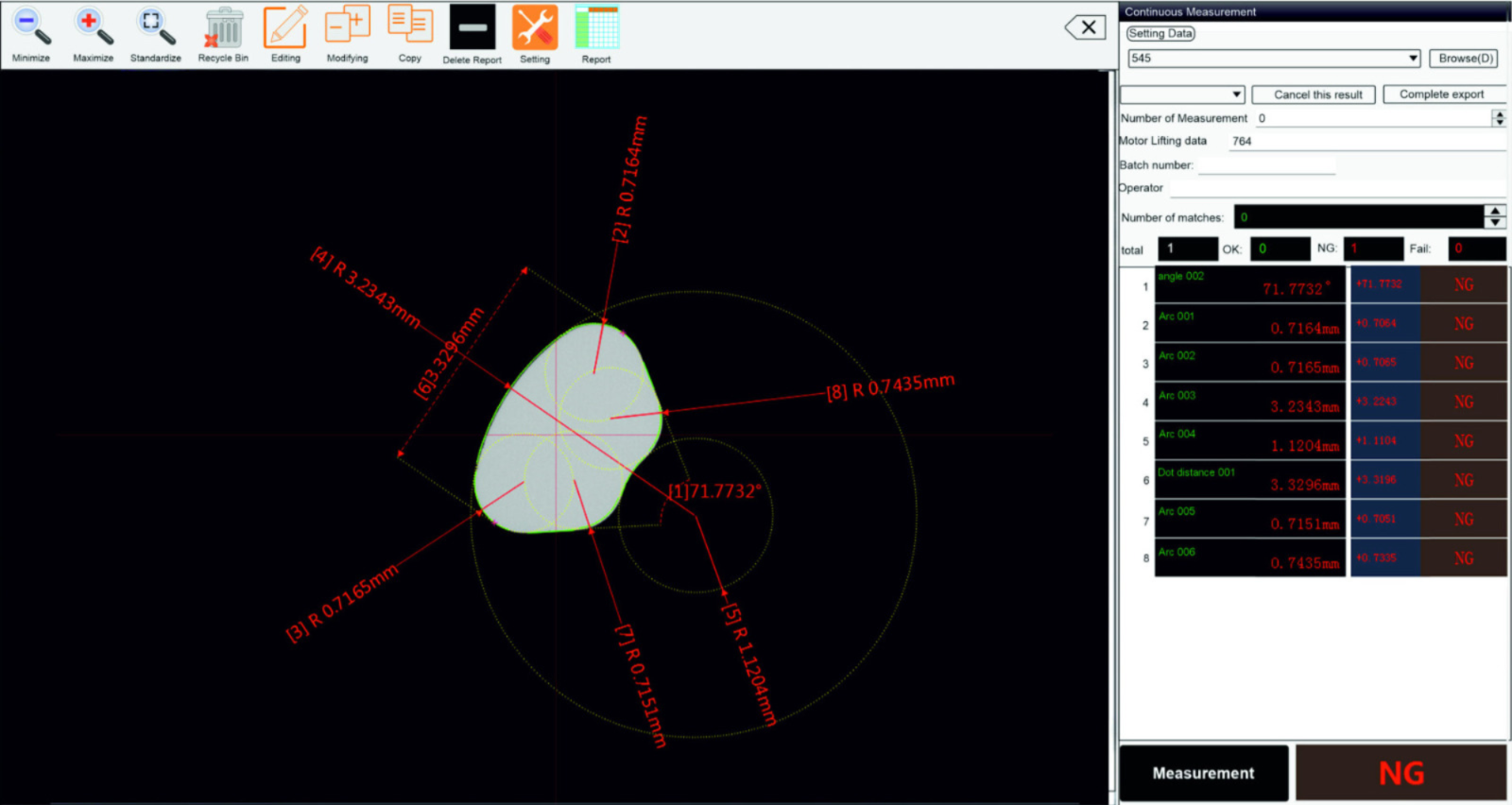

Trapezoidal Die

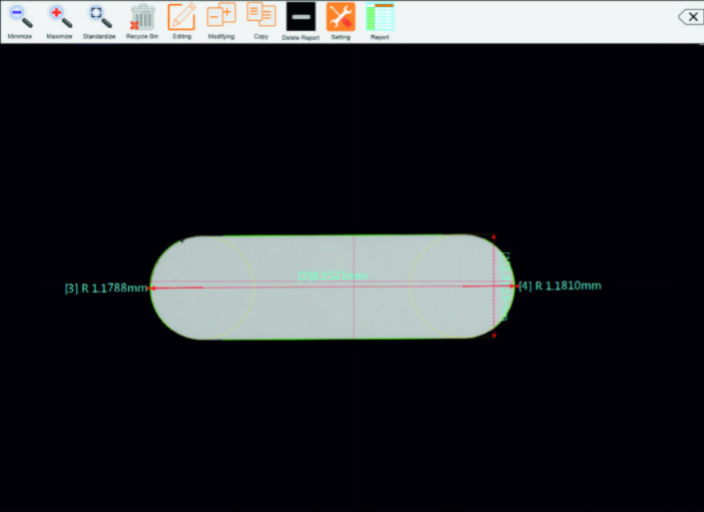

Slot Die

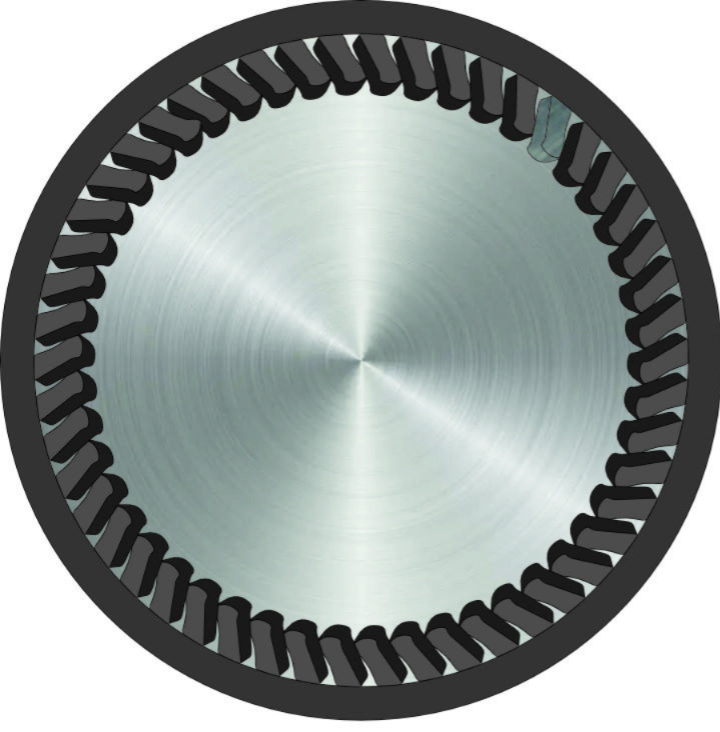

Circle Die

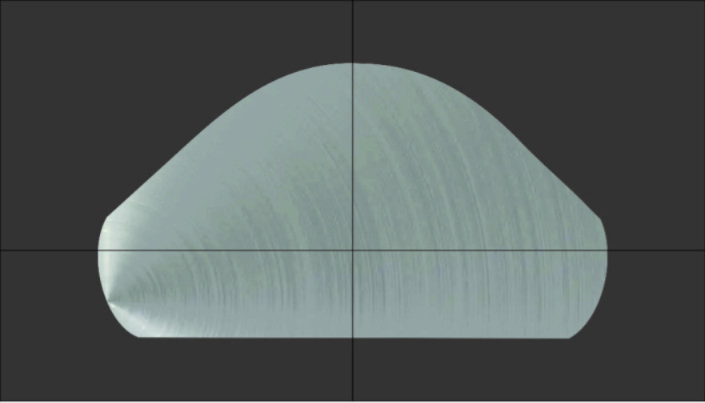

Triangle Die

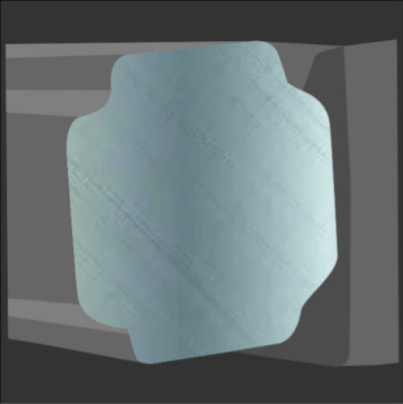

Square Bar Die
.png)

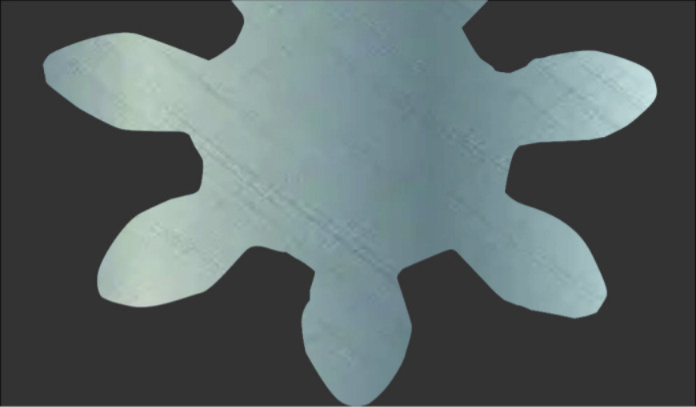

Star Die
.png)
Discover our several range of measurement solutions according to your needs
Explore features and software of drawing die measurement (Saudi Arabia) in detail
Factor you may understand before buying Drawing Die Measurement System in Saudi Arabia

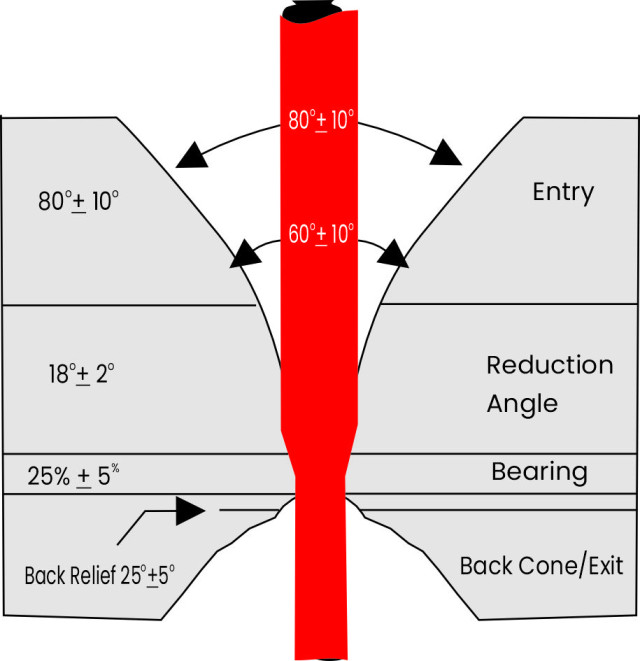

It's a machine made to inspect the internal geometry of drawing dies. Because the important features are inside the die hole, a Drawing Die Measurement Machine is used to measure the entrance, approach angle, bearing, and relief accurately.
The internal geometry of the die directly controls the quality of the drawn wire. Accurate die geometry measurement helps avoid surface defects, dimensional errors, and premature die wear during production.

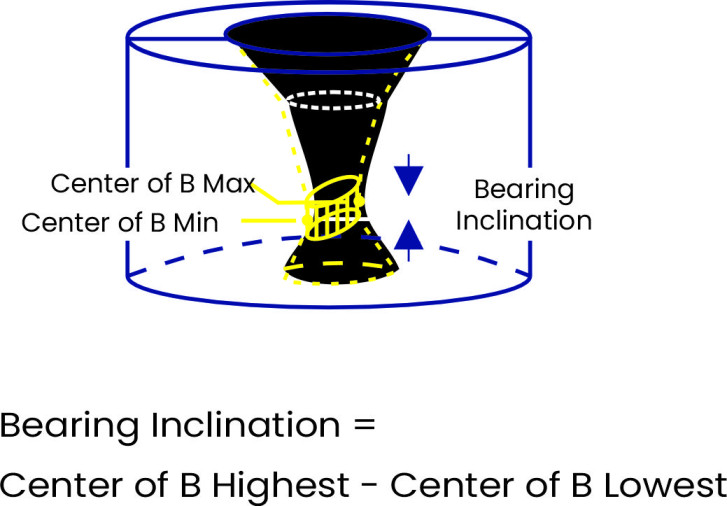

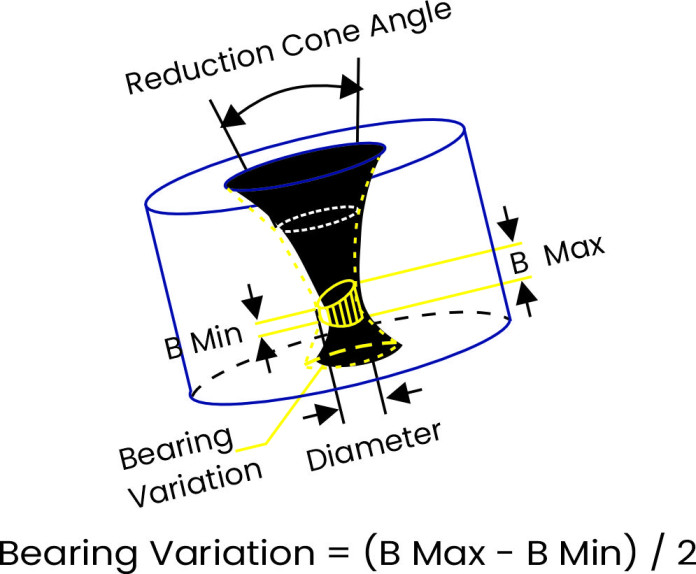

A Drawing Die 3D Profile Measurement System captures the complete internal contour and builds a 3D profile of the die. From that, all the critical angles and bearing dimensions can be measured precisely.
The price depends on the measuring range, camera and optics, software features, and the amount of 3D profile detail required. The specific inspection need determines the final configuration.
SIPCON is known as a trusted Drawing Die Measurement System Manufacturer in Saudi Arabia, supplying systems for drawing die measurement and internal geometry inspection.
