Non-contact measurement for flawless profile inspection

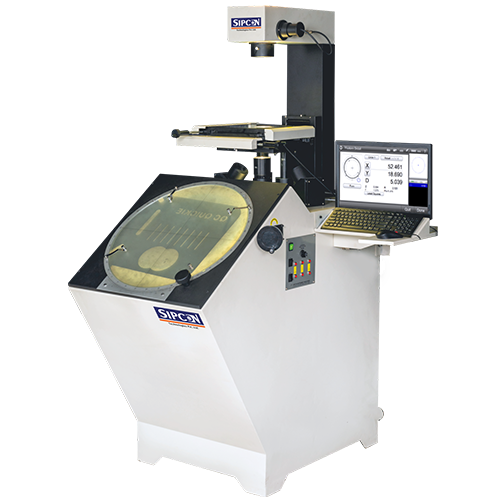

High-precision Shadowgraph Profile Projector measuring machine for accurate dimensional inspection of intricate parts—fast, sharp, and reliable results every time
Illumination ensures clear shadow of component on the screen to get right measurements- Best fit for the rubber, cable and complex profiles
Shadowgraph Profile Measuring machine comes with a threadless workstage that offers the operator to move the stage smoothly according to part size
METLOGIX'S MLX-200
Select any one reporting format from the three - CSV, Tolerance or Standard. You can record the measurement results with a report title, time and date stamps
Simplify tolerance application with help of advanced Metlogix interface of DRO system. Define geometric tolerances and check feature accuracy. Automates the daily routine measurement task
Designed for precision and ease, this feature works for both optical edge and crosshair systems. Contact free measurement control-just cross the same edge twice to record results
Tolerance Setting & Result Display Define measurement tolerances and get clear, instant visual results with every reading
User-friendly desktop software that simplifies measurement, reporting, and data management — all in one place
Directly saving graphs as DXF or IGS files makes it possible to export our measurement to CAD.
Select two or more features to create intersections or constructions.
Buying guide for Profile Measuring Machine Take your informed decision with leading manufacturer of profile projector in US
