Drawing Die Geometry directly influences the wire diameter, surface quality and overall drawing efficiency. Even the small variation in die angle bearing length lead to

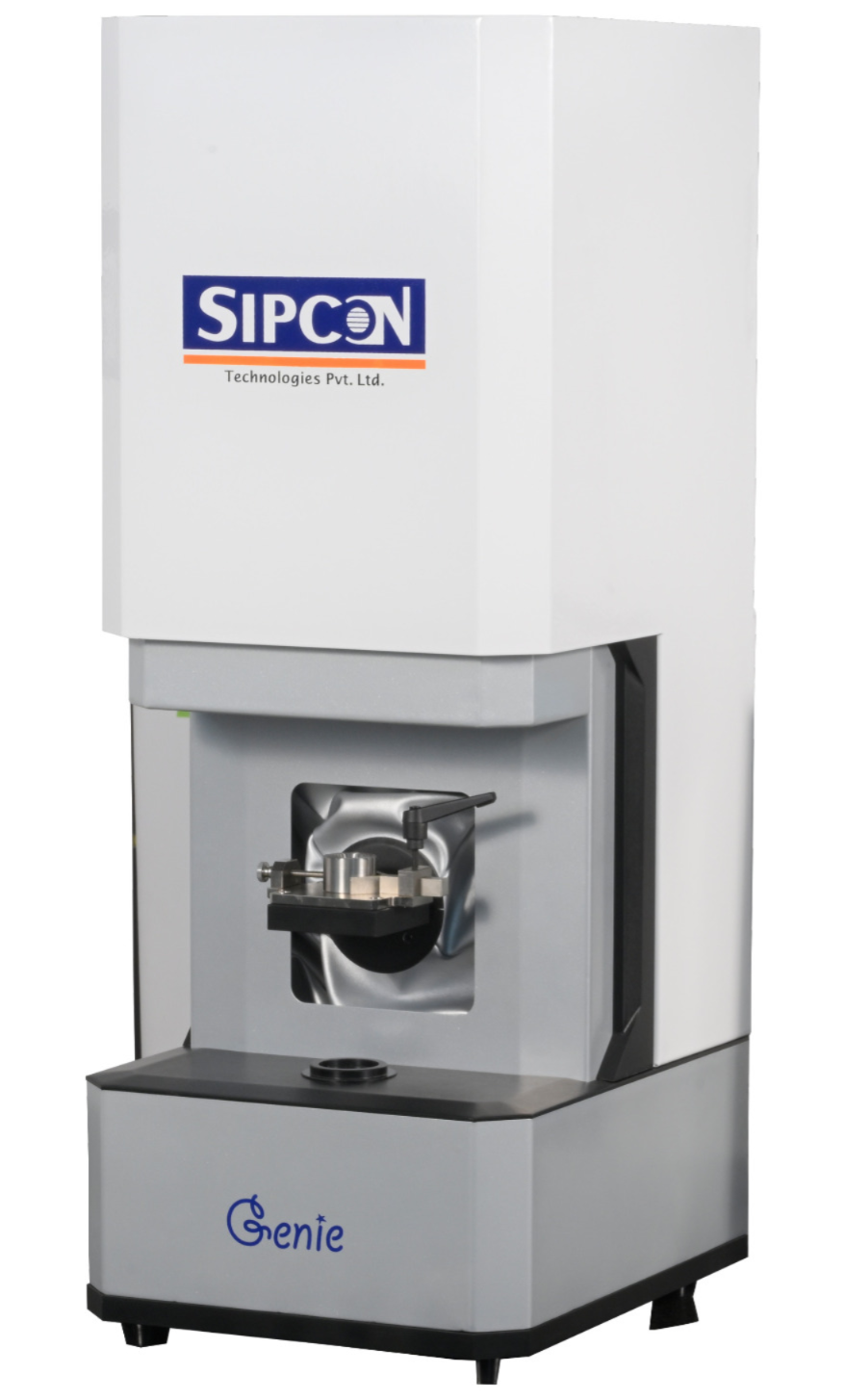

Drawing Die Measurement machine (Italy) measurement solution designed for fast and accurate inspection of drawing die internal geometry. It enables the analysis of die profile quickly, ensuring consistent accuracy and improved process control

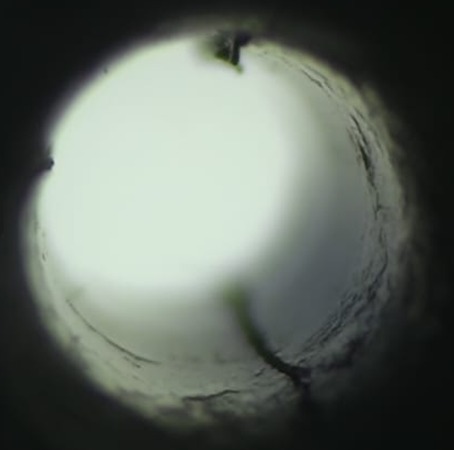

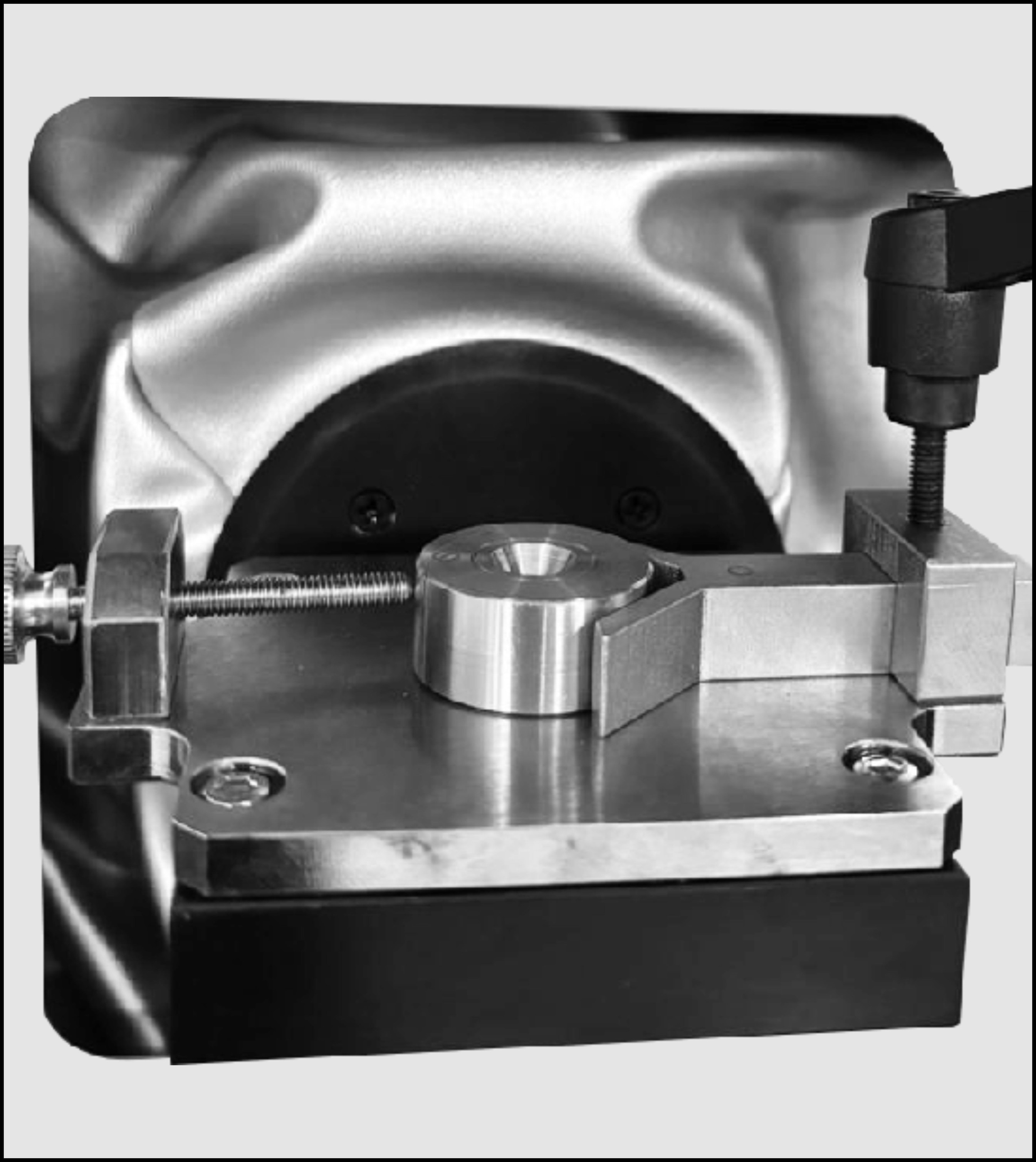

Advanced Optical Imaging Technology captures the proper inner hole geometry with high precision enabling accurate inspection of drawing dies
.jpg)

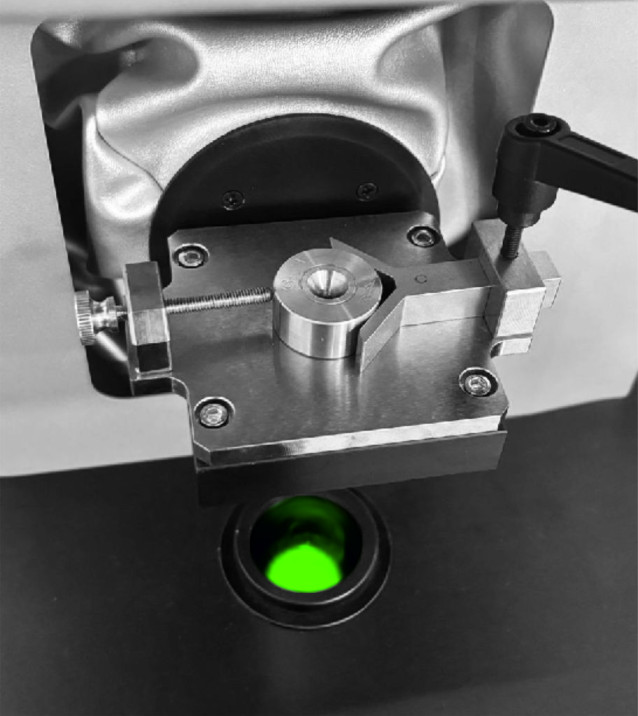

A smart green collimated illumination technology that highlights die contours clearly, ensuring better edge detection and improved measurement accuracy
Reports are automatically generates the inspection reports in excel and pdf formats for convenient documentation

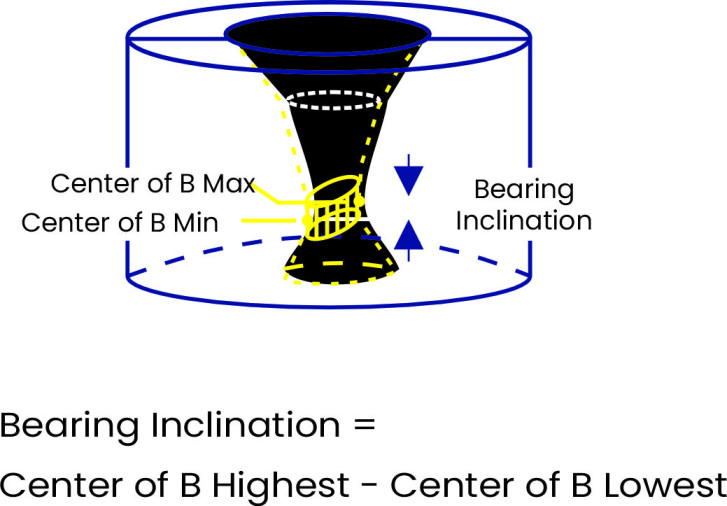

It enables users to inspect the critical die geometry parameters accurately and ensures the die performs according to the drawing specifications and delivers production quality. Such as
Measure small to ultraβfine dies effortlessly with Drawing Die Geometry Measurement system
Consult with our experts and get the precise drawing die measurement system
Sipcon Die inspection system enables fast and reliable measurement of shaped diesβ no matter how complex the profile it can easily measure the whole part. Also it minimizes operator dependency and delivers precise, repeatable results with a single touch

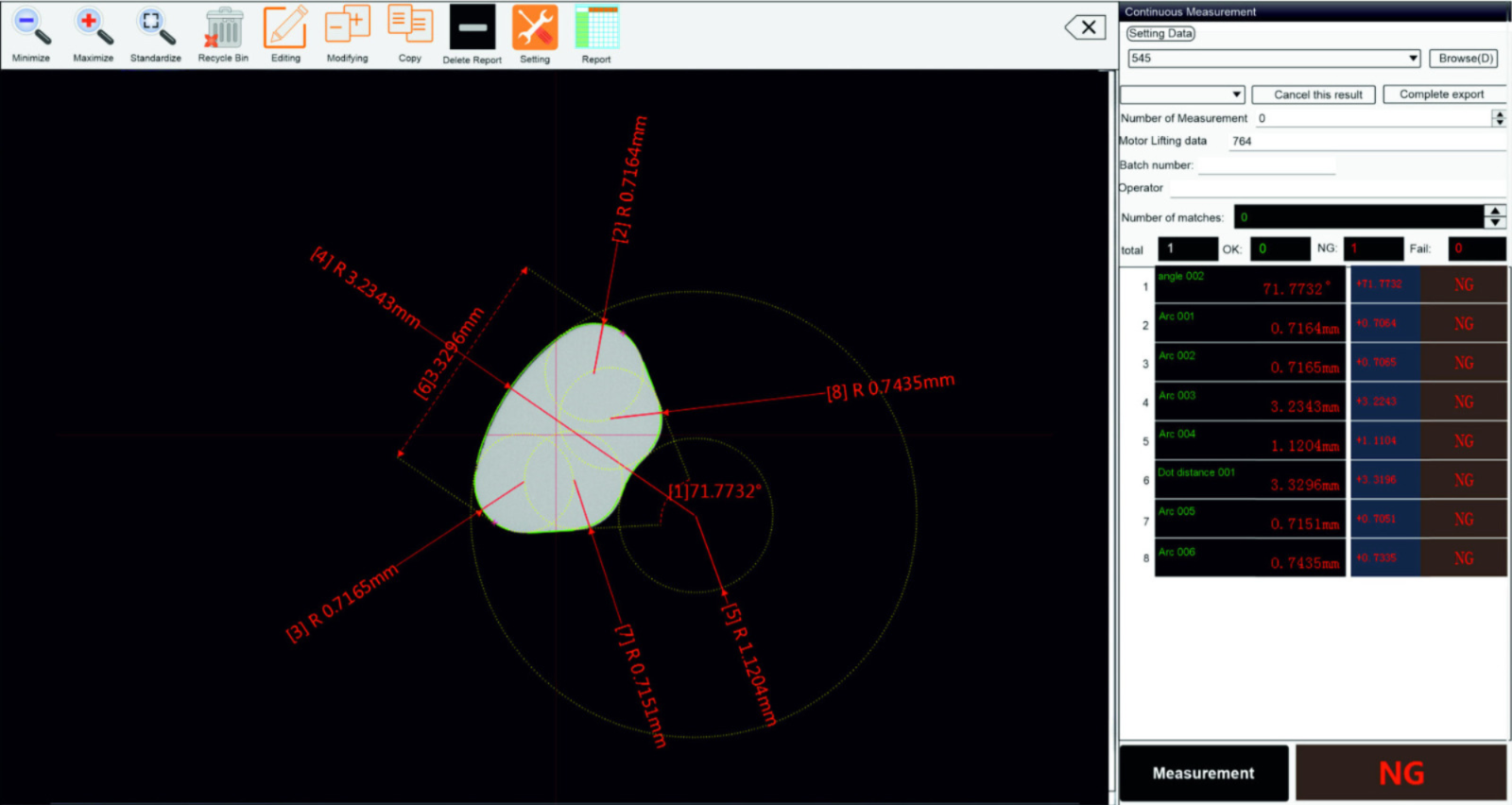

Trapezoidal Die

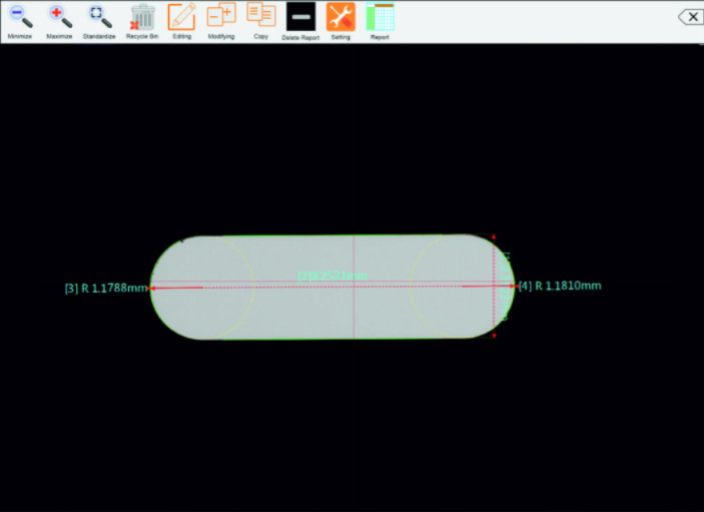

Slot Die
Circle Die
Triangle Die
Square Bar Die
.png)

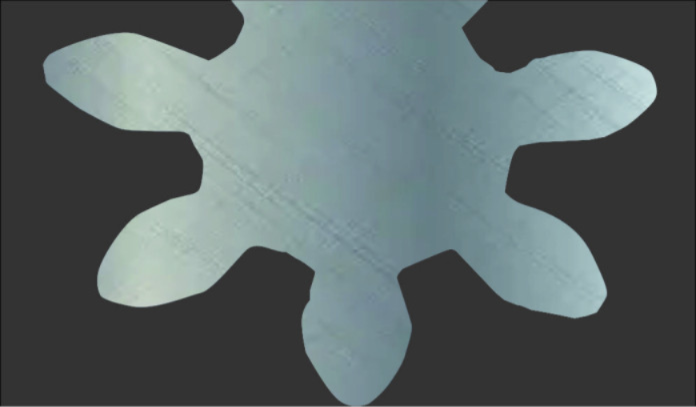

Star Die
.png)

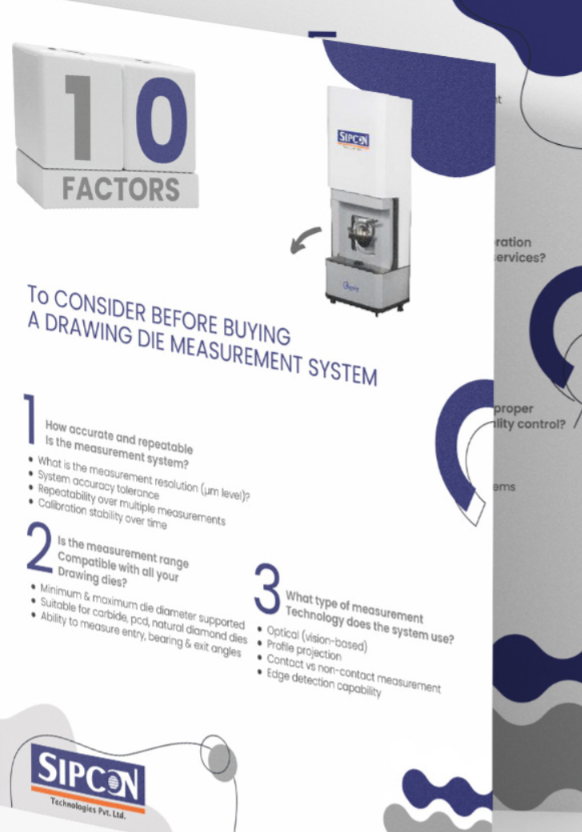

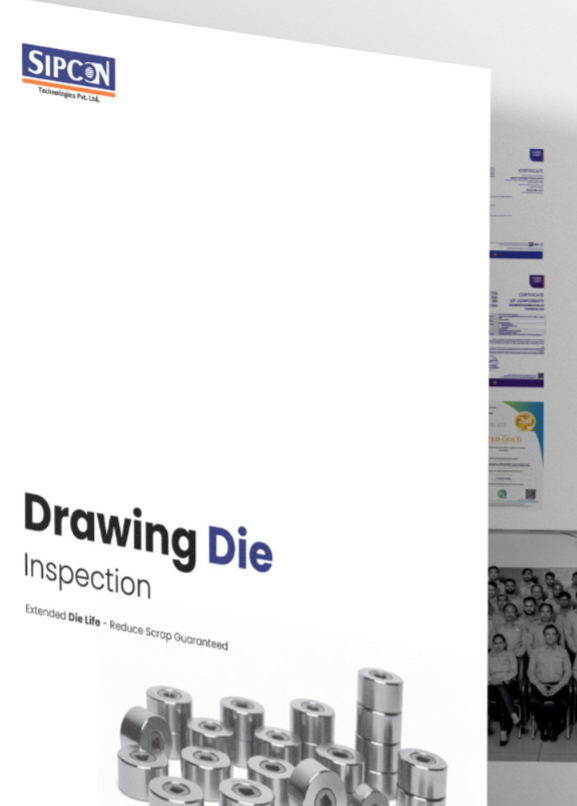

Explore our various types of Precision Measurement solution in one guide
Discover the complete drawing die measurement system in Italy
An expert guide by top Drawing Die measurement machine manufacturers for choosing right measurement solution

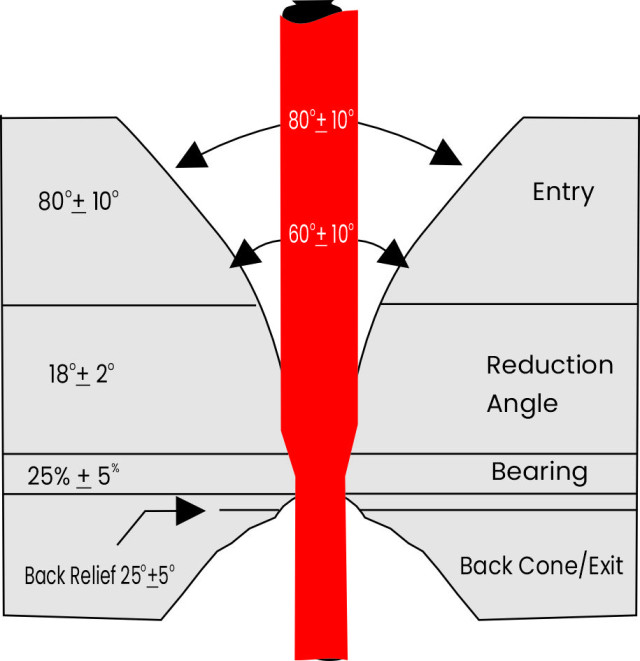

It's built to inspect the internal geometry of drawing diesβthe part you can't easily reach with conventional instruments. The machine measures the entrance, reduction angle, bearing, and relief accurately during quality control.
Because even small deviations in the internal profile affect the finished wire or tube. Proper drawing die geometry measurement helps ensure the die produces consistent results and lasts longer in production.
A Drawing Die 3D Profile Measurement System captures the complete internal shape rather than just a few points. That provides a true picture of the die's geometry, allowing the angles and bearing length to be verified accurately.
The price mainly depends on the measuring range, optics, software features, and the level of 3D detail required from the internal profile. The specific application also influences the final cost.
SIPCON is a trusted Drawing Die Measurement System Manufacturer in Italy, supplying reliable systems for die geometry measurement and internal profile inspection.
