Precise measurements for every detail with Vision Measuring Machine

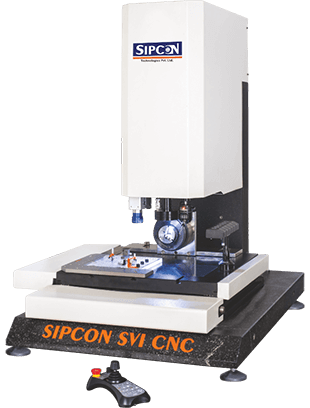

Our video measuring machine (CNC) comes with multi sensor feature which allows you to inspect the most complex profile of any part such as rubber and plastic parts

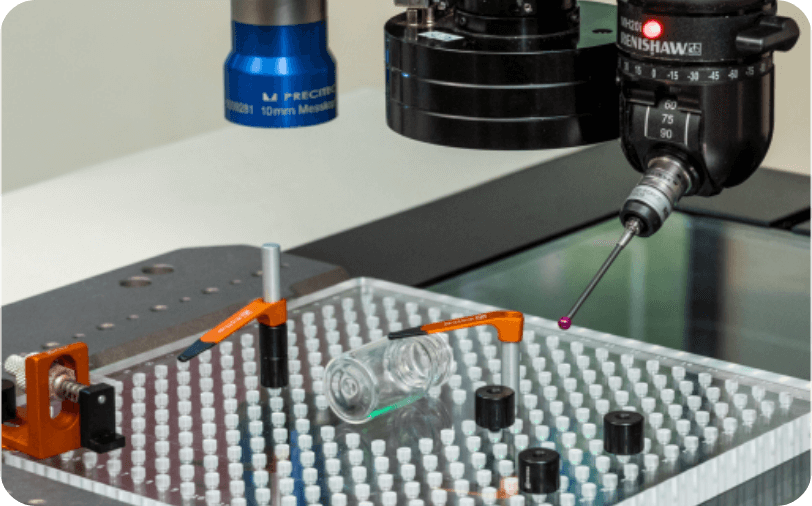

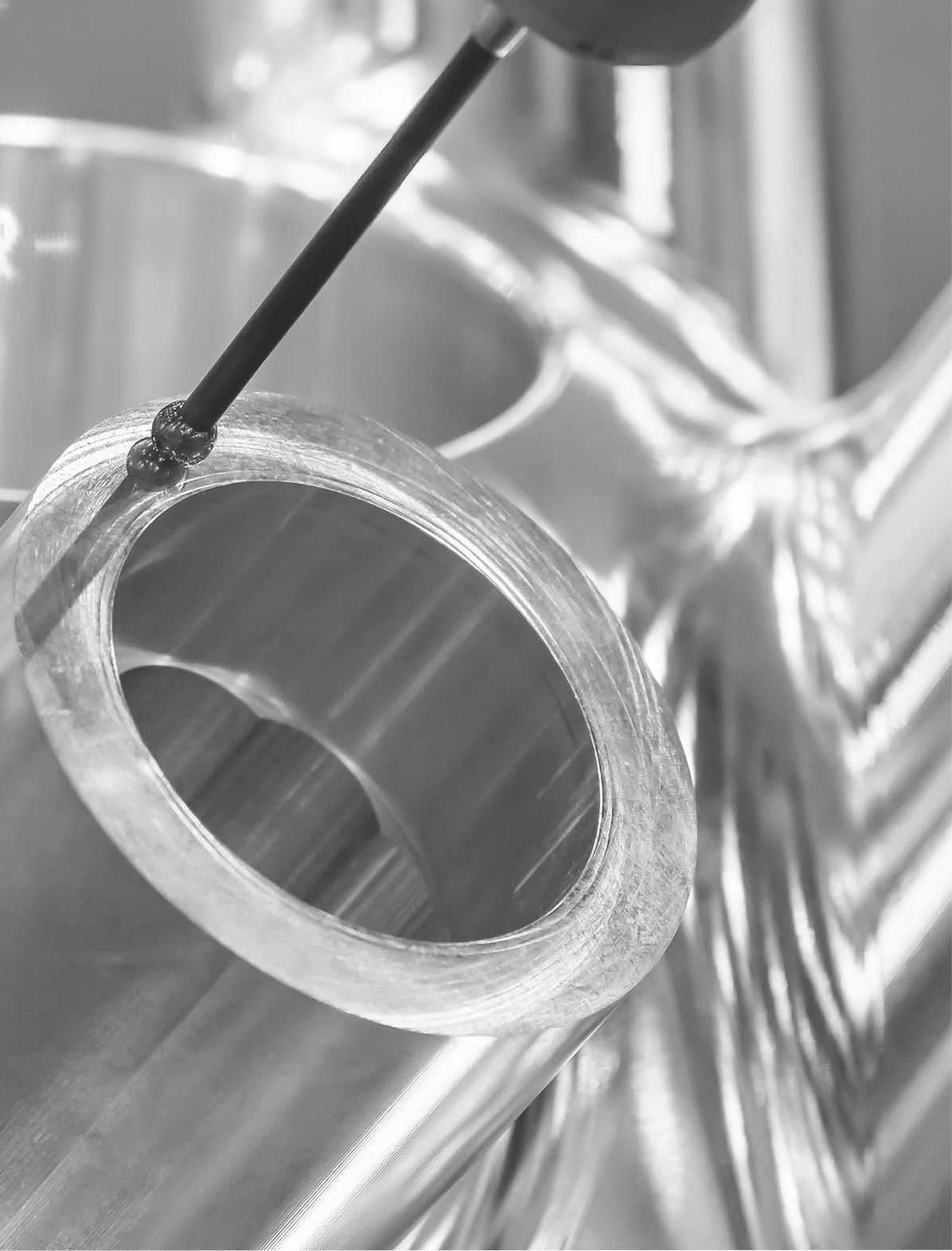

Using three sophisticated measuring technologies in a single system Vision for quick 2D inspections, and Touch Probe for detailed 3D inspection, all meticulously programmed for the Italian market

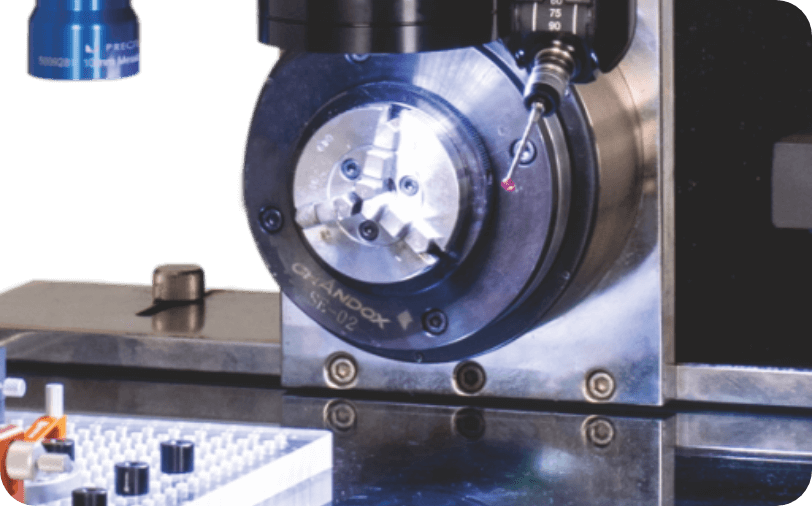

Rotary Indexer for seamless multi-angle inspection, automatically rotating the item throughout inspection

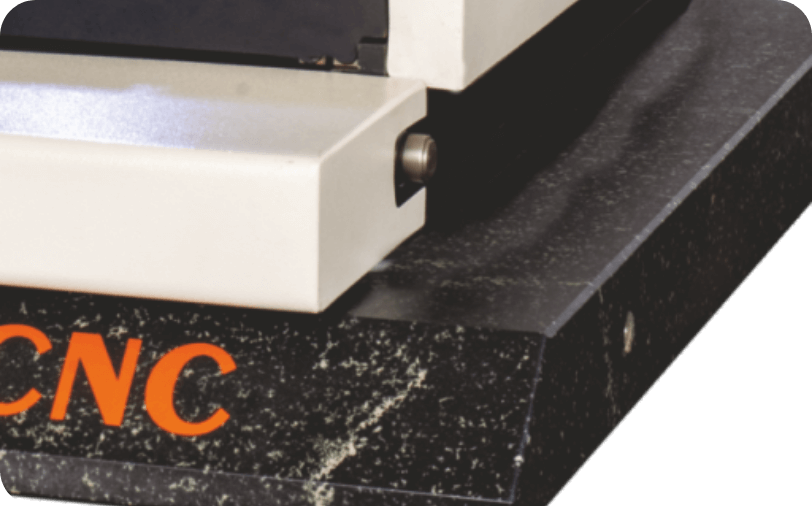

Sits on a robust granite base and platform to provide superior stability and has minimal vibration and thermal effects for precision measuring

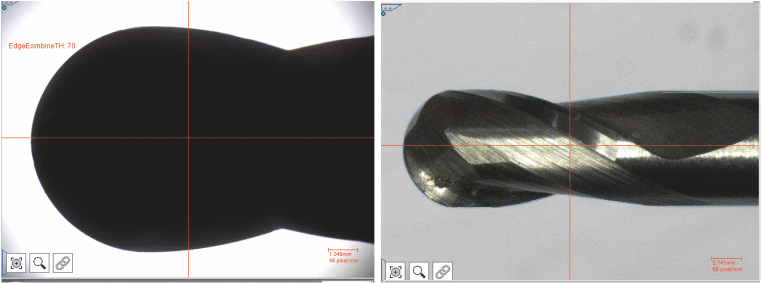

The unique variable lighting feature has four programmable channels, and each intensity can be saved and later applied automatically during inspection

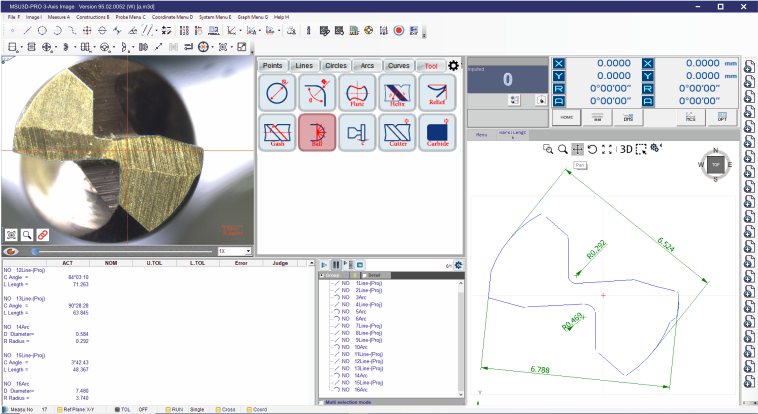

Export data quickly to save graphs as a DXF or .IGS file format for copying measurements over to CAD or CAM software for further edits. Click directly on the features in the graph section and have the system do the calculations for distances and measurements between features
Easily overlay your DXF files on the magnified image in order to quickly cross-check if your part is within tolerance

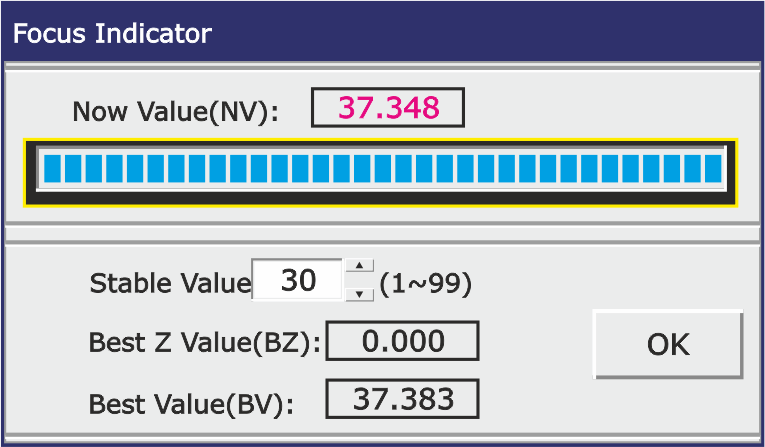

Automatically input the best focus and Z value to ensure a crisp accurate reading of your measurements which is vital for 3D inspections

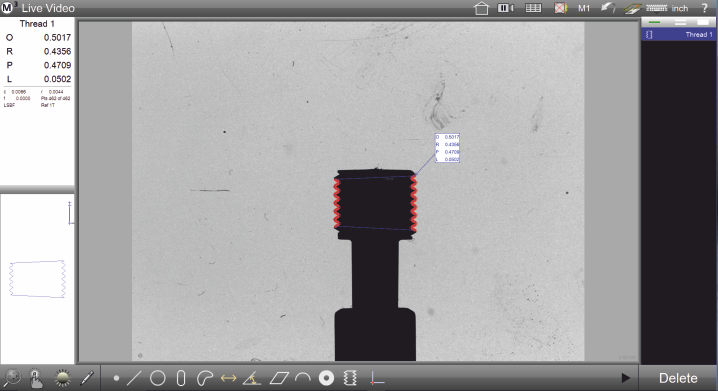

Threads can be measured rapidly and accurately without time and manual errors
You can measure planes, cones, cylinders, and spheres in 3D space (do so in the XY, YZ and ZX planes), and then see the full 3D view of the part. You can use the 3D model to markup the measurement results and rotate the model around it to see view it from any angle

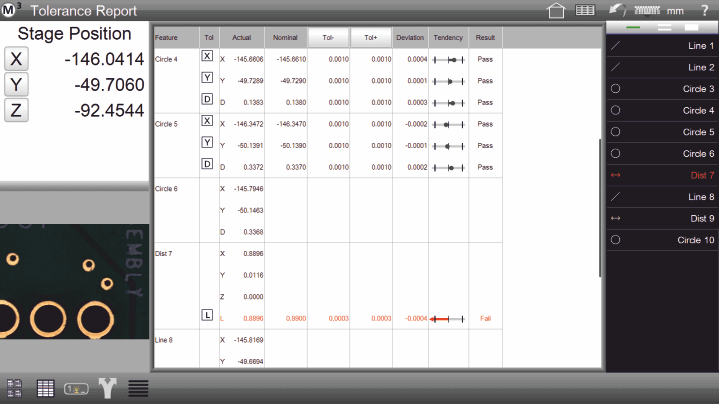

• Select your required data format
• Add company name, logos and page number
• Add pictures of the part
• Add timestamps to your measurements
• Add operator and part information

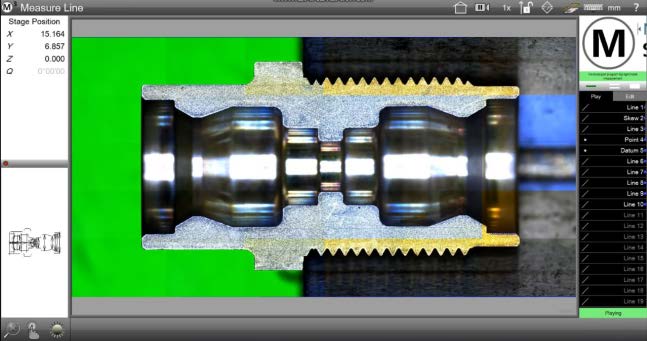

The Super Image feature stitches together captured camera frames into scaled, fully large images in the field of view of both manual and CNC systems

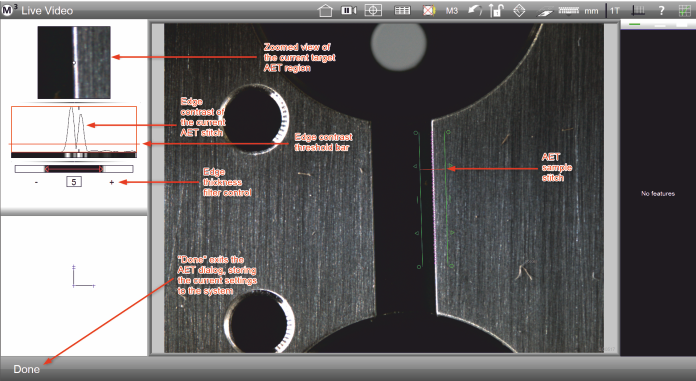

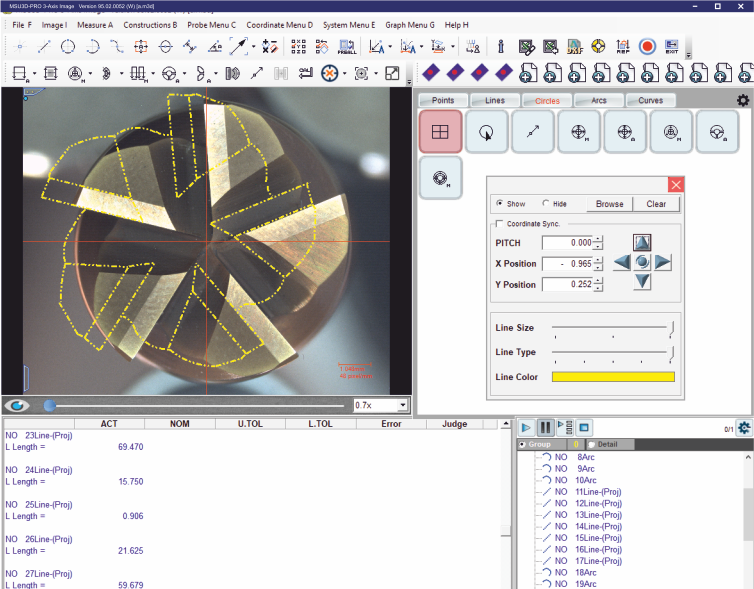

Improve edge detection performance in varying lighting and image conditions, capturing features with low contrast or closely spaced features without difficulty
Access all our dimensional measurement solutions in one comprehensive catalogue

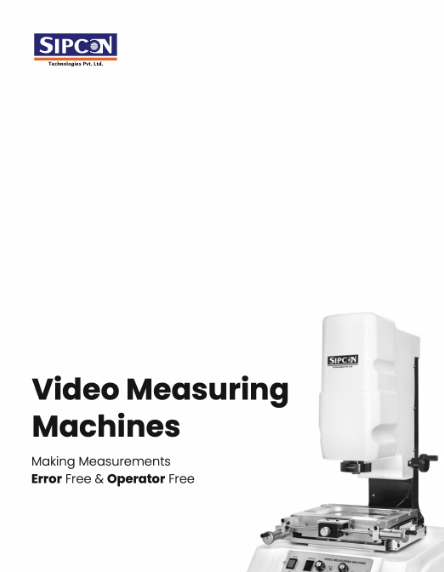

Explore the VMM catalogue to know about our complete range of Vision measurement system in Italy

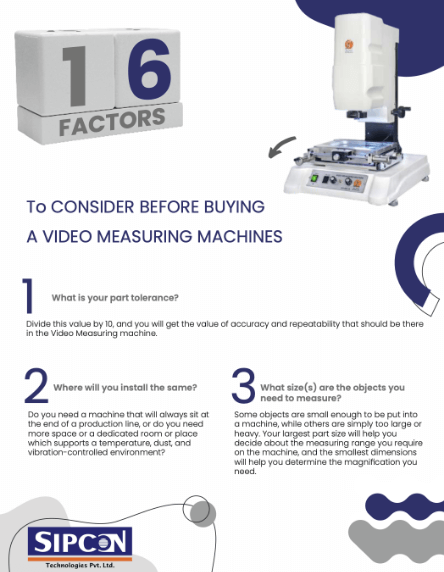

Walk through the factors that can ease your purchase decision for the right video measuring system
