Profile Measuring machines for error-free inspection

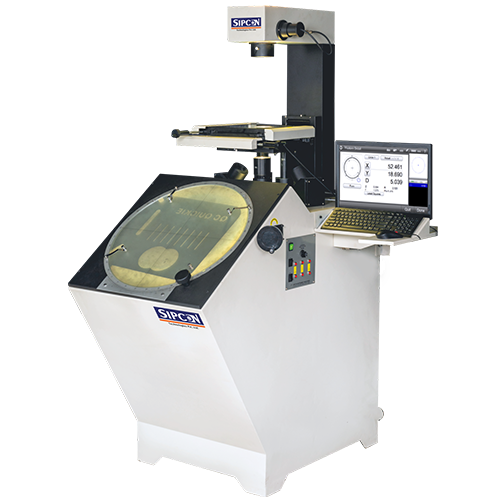

Precision management and analysis of complex parts made easy with a Digital Profile Projector—fast, sharp, and reliable.

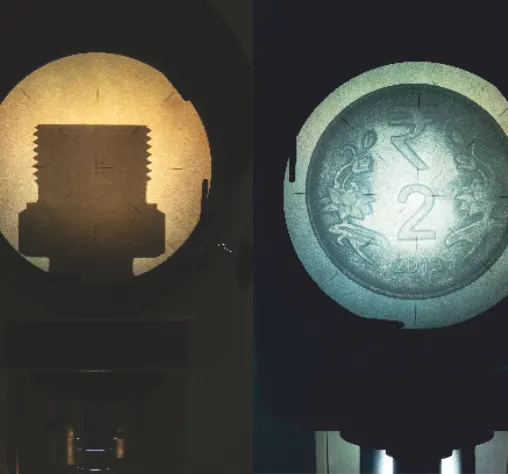

Uniform illumination of optical projectors by top Profile Projector manufacturers in Italy for precise measurement of rubber parts, cables, and intricate geometries

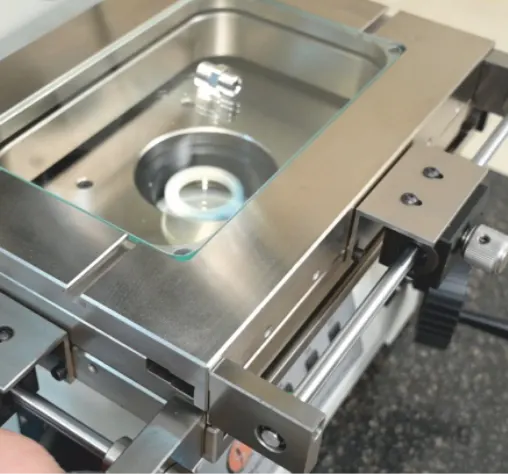

Digital Profile Projector with Threadless Workstage provides the friction-free movement for long-lasting alignment
METLOGIX'S MLX-200
Choose from 3 formats of report: CSV, Standard or Tolerance. Title, date and time stamps and complete feature measurement can be integrated in every report
Using the Metalogics system, simple application of geometric tolerances is possible. Created with programmable features to preset and pull up countdown times to second, monitor results in real time, and store presets for repeatable testing
The Mx200 provides intuitive probing for use with Optical Edge and Crosshair systems. With Edge Logic™, just cross the repeated measurement of the profile to begin and readings are automatically logged, eliminating the need for DRO data entry.
Set tolerances for dimensional checks and see if your SCP meets tolerance limits after every reading easy, clear readings every time
Desktop software that is an easy-to-use administrative program that simplifies scoring, reporting, and data management through a single place
Save measurement graphs in DXF format or IGS file format with a single mouse click for easy loading into CAD systems
Easily create intersections or constructs with two or more features
