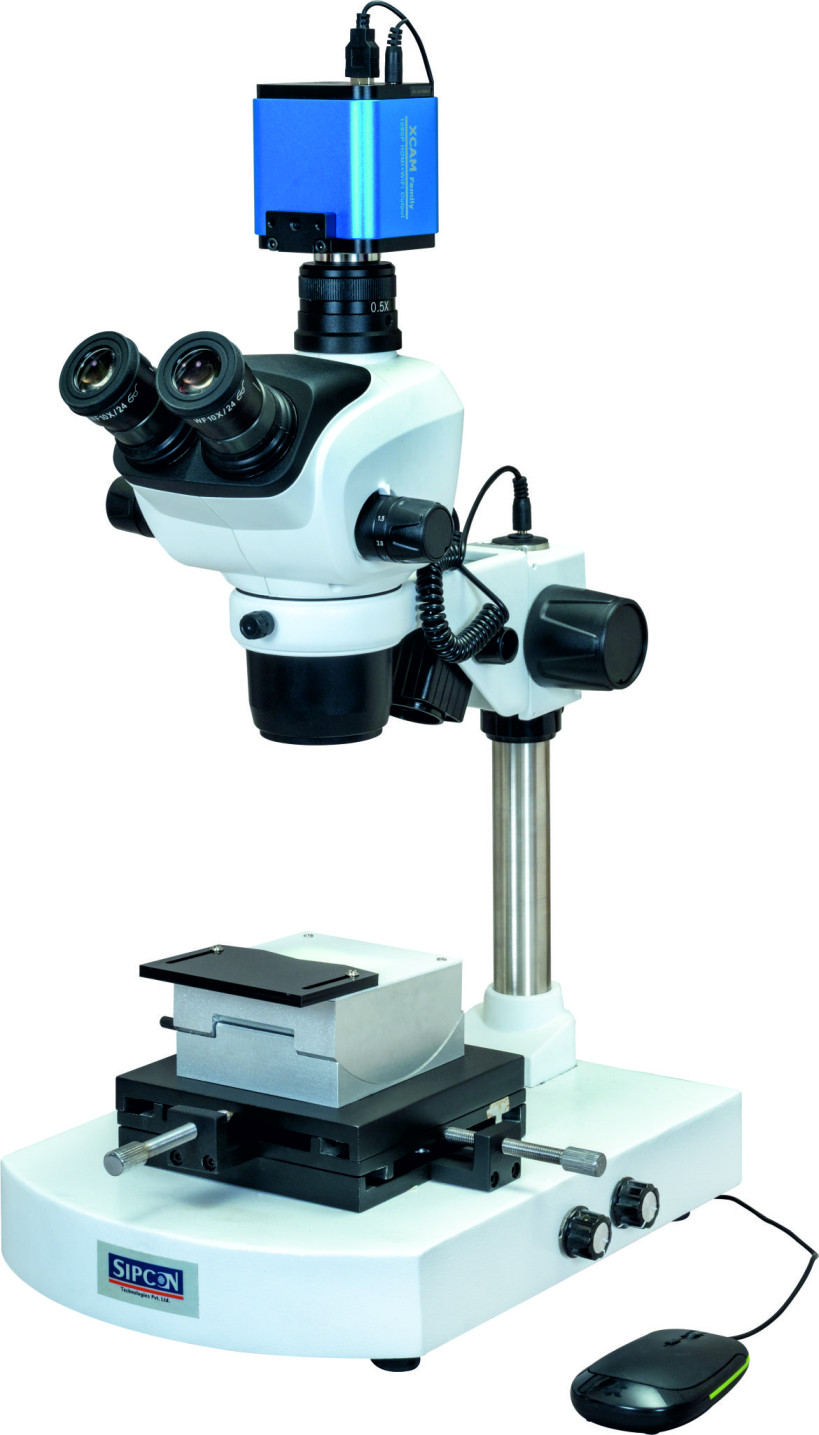

SIPCON is one of the trusted manufacturers of Die inspection microscopes in the United States offering advanced systems for inspecting the die complex profiles. It ensures quick, accurate and reliable inspection results very quickly
| Parameter | If Too Small | Effects | If Too Large | Effects |
|---|---|---|---|---|
| Entry Angle | Sharp entry | Scratches, surface cracks, lubrication problems |
Overwide entry | Poor guidance into reduction zone, lubricant washout |
| Reduction Angle | Too shallow | High friction, overheating, high force, more die wear |
Too steep | Poor material flow, internal cracks, uneven reduction |
| Bearing Length | Too short | Size instability, ovality, poor surface |
Too long | Excess friction, higher drawing force, die overheating |
| Exit Angle | Too small | Wire rubs against die exit, surface scratches |
Too large | Weakens die edge, risk of premature die chipping |

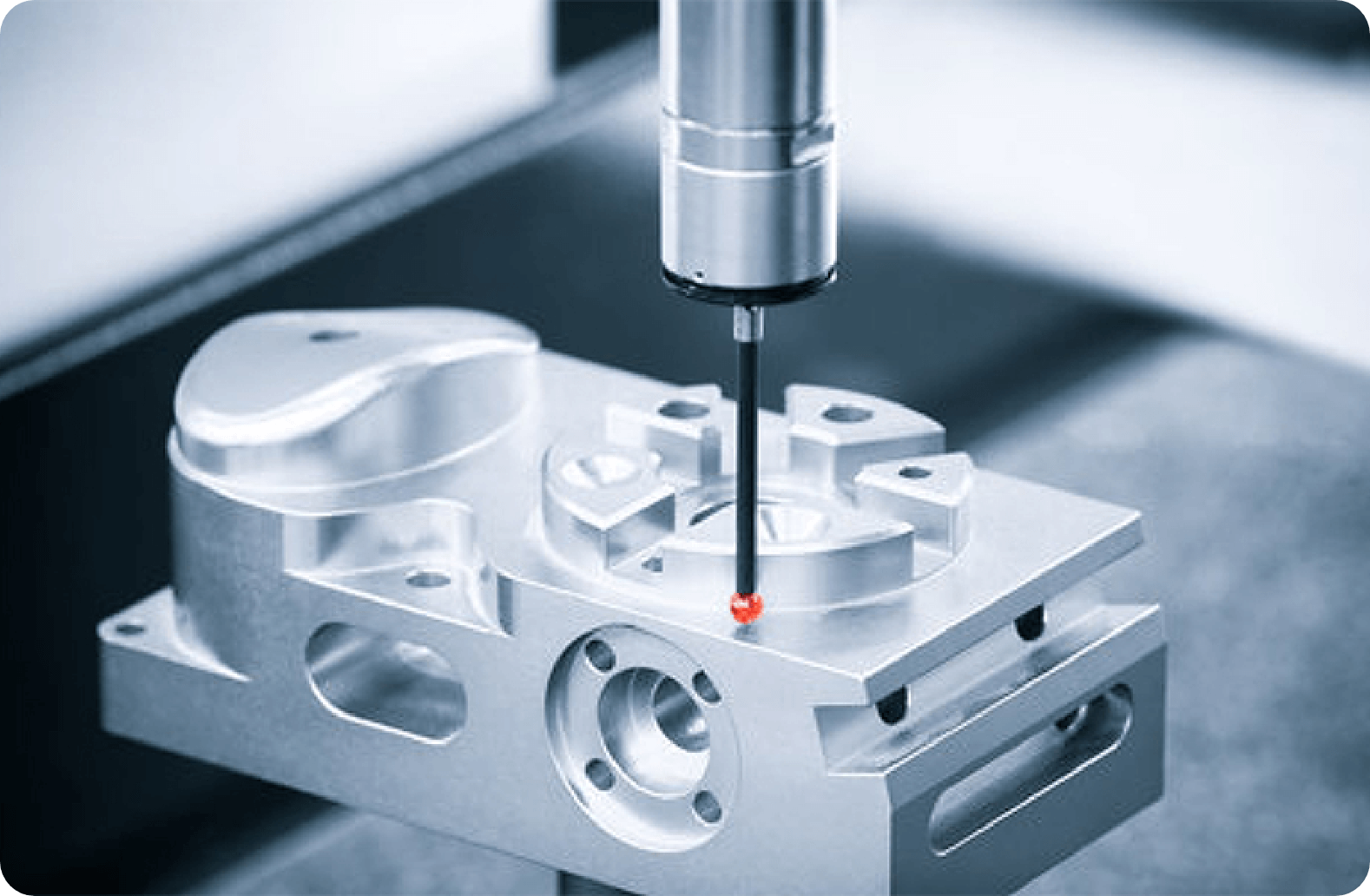

High-precision optical coordinate measuring machines with granite guideways, air balanced z-axis and servo controlled motion provide fast, reliable and accurate inspection for manufacturing industries such as aerospace, automotive, heavy engineering and defence
How you can avoid them with the right tools and techniques
Explore SIPCONβs precision measurement solutions according to your requirements
Discover how Die Inspection microscope (USA) works accurately with their Advanced Features
A guide that helps to choose the right Drawing die inspector in USA
