The geometry of the drawing die directly reflects on surface finish, wire diameter and overall drawing efficiency. Even the small variation of in Die angle or bewaring length can result in

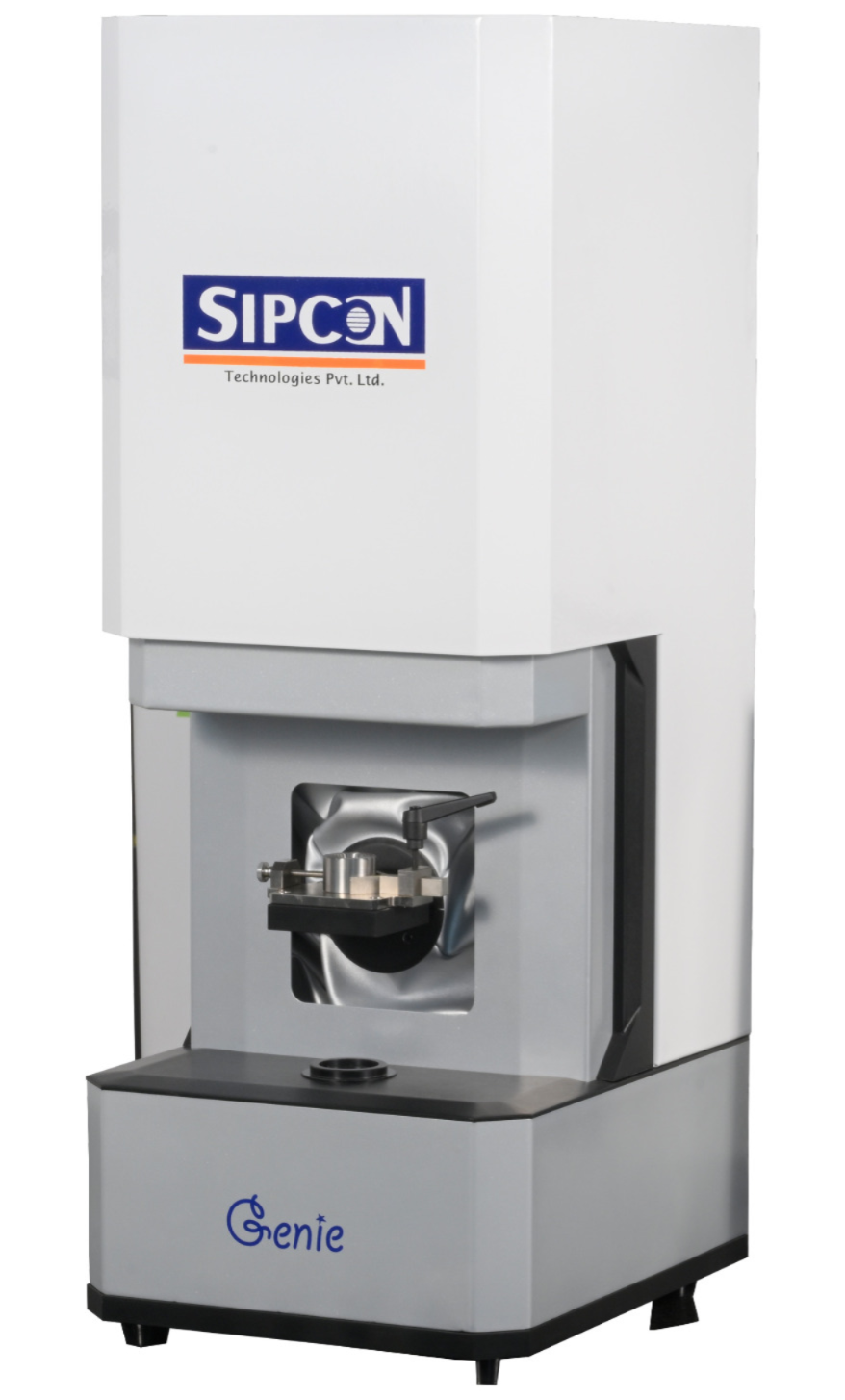

This system is the smart solution for drawing die geometry measurement for various types of dies and this can inspect the internal geometry easily as well
(1)(1).webp)
Advance Optical imaging technology enables accurate measurement and detailed analysis of the dieβs internal geometry
.webp)

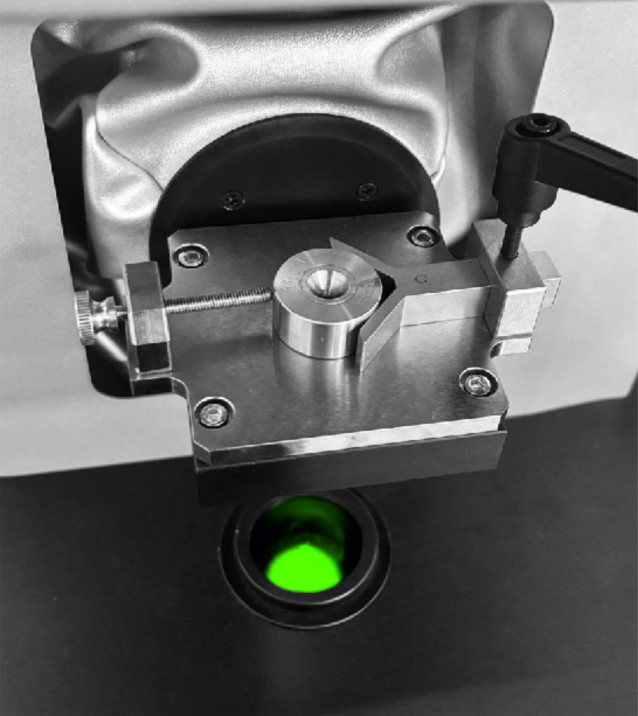

Specialized green collimated lighting provides clear die profile visualization and improves measurement reliability
Exports detailed inspection reports in both Excel and PDF formats for seamless documentation and analysis
By measuring the critical diameters, manufacturers can ensure the die meets drawing specifications and maintains consistent wire quality and production efficiency
(1)(1).webp)
Observe how the system measures drawing die profiles with high precision
Connect with our expert and discover the right way to handle them
With Die Genie, measure shaped dies confidently. Even the complex profiles can be measured effortlessly, delivering reliable, consistent and repeatable results every time while minimizing operator error

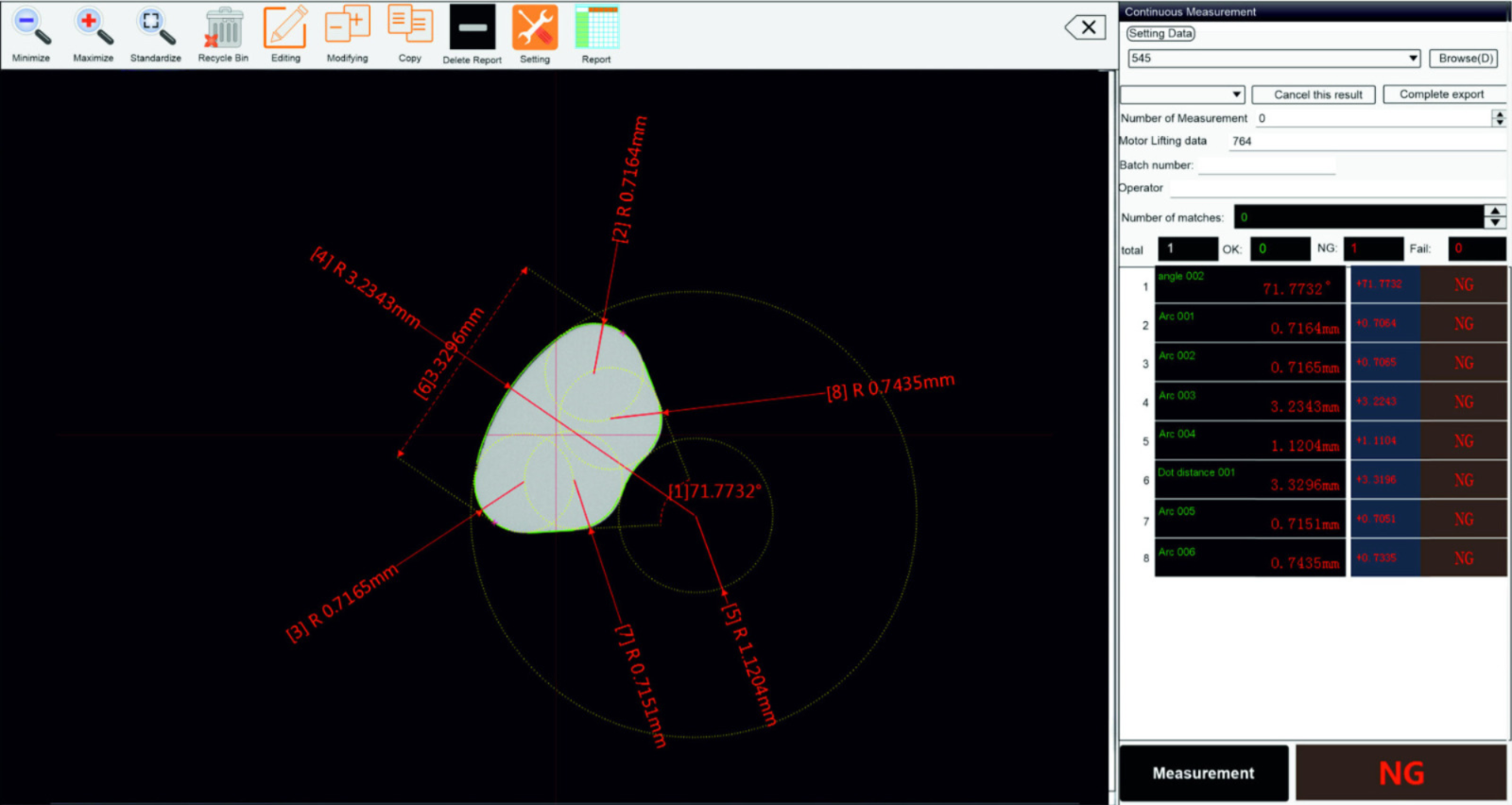

Trapezoidal Die

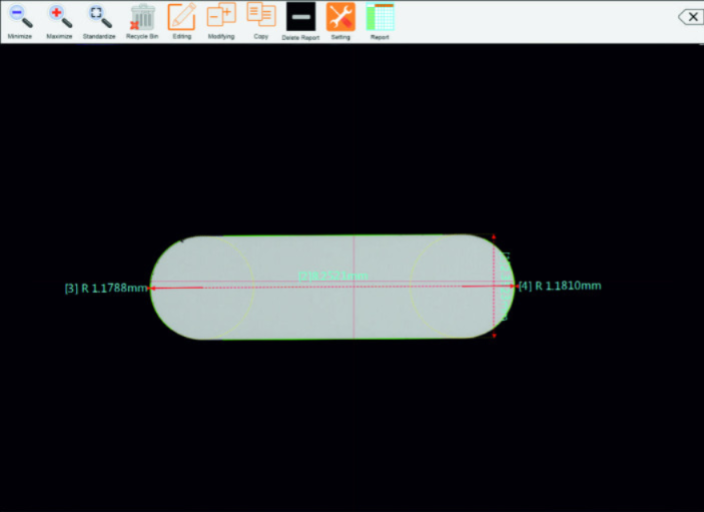

Slot Die
Circle Die

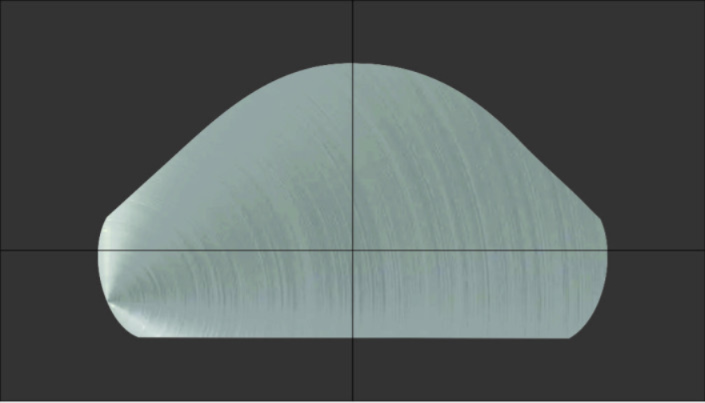

Triangle Die

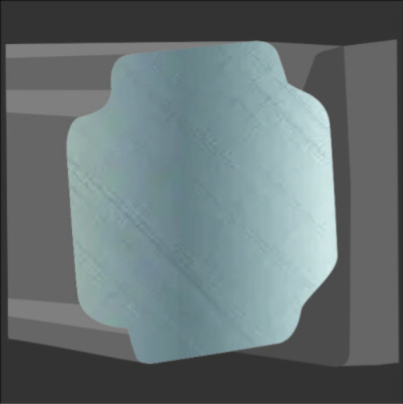

Square Bar Die
.png)

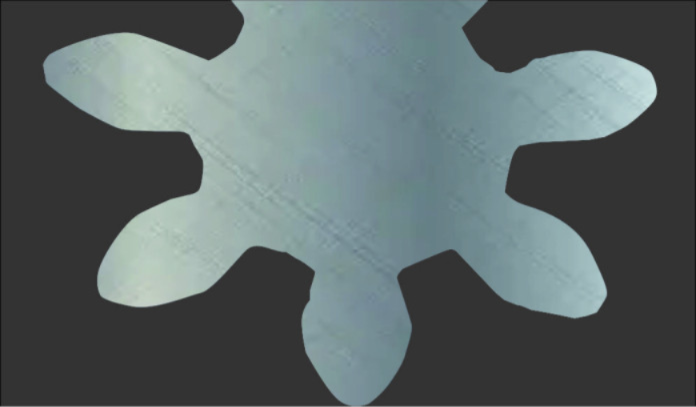

Star Die
.png)
Explore SIPCONβs Complete Range of Precision Measurement Solutions
Discover the Drawing Die Measurement system in Australia for precise geometry analysis
Some Important point you consider before buying drawing die measurement in Australia
In simple terms, it measures the inside of a drawing dieβthe profile that controls how the wire or tube is shaped. A Drawing Die Measurement Machine reaches the entrance, approach angle, bearing, and back relief that hand tools can't.
Because the die's internal geometry decides product quality and tool life. If the geometry drifts, defects show up. Reliable die geometry measurement catches that early, before it affects production.
Yes. A Drawing Die 3D Profile Measurement System maps the entire internal contour and turns it into a 3D profile, so every critical dimension can be measured from one accurate model.
It comes down to the measuring range, resolution, software, and how detailed the 3D profile needs to be. Every die application is a little different, so pricing varies with the configuration.
SIPCON is a name Australian industries trust as a Drawing Die Measurement System Manufacturer, offering machines built for precise drawing die measurement and profile inspection.
