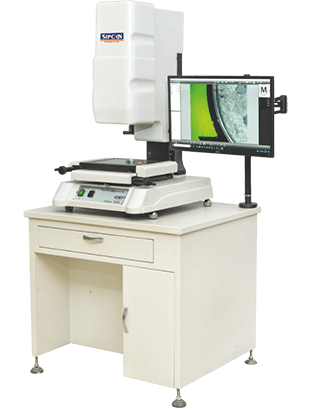

Designed for large parts spanning automotive, aerospace and manufacturing

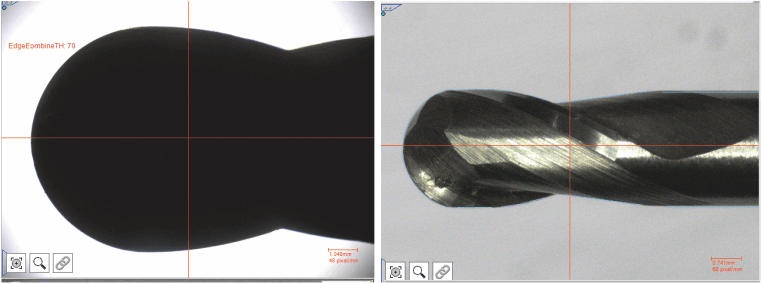

It has a Four-zone lighting controller with programmable settings for each signal strength, which is stored in the program and automatically recalled during the operation.

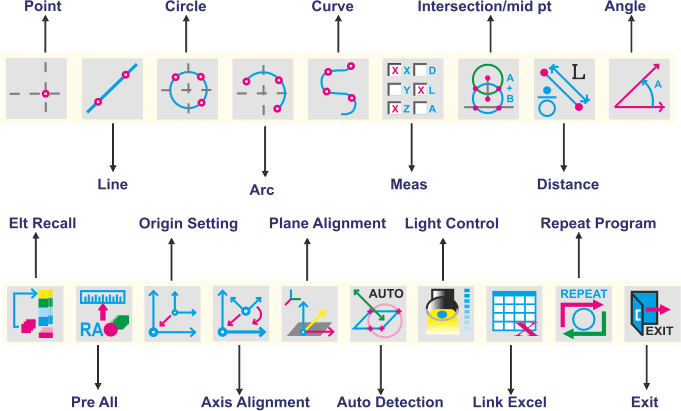

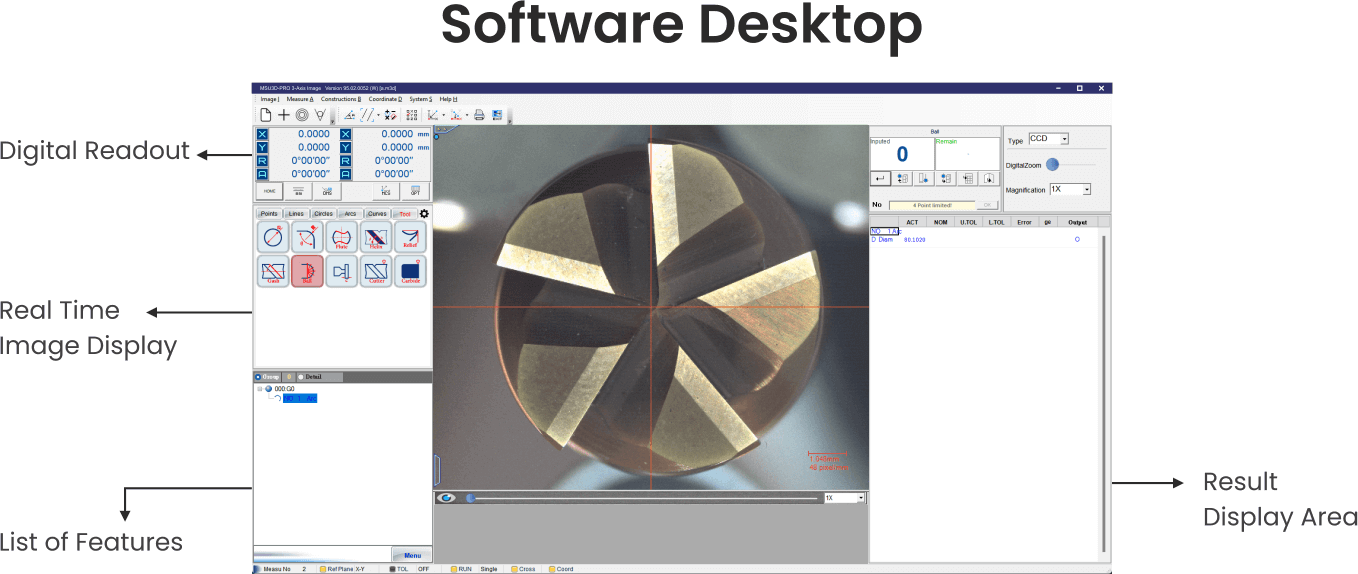

A one-click menu bar allows you to access all the Physical Dimensions and origin settings, align the axes, export Excel data, and program a measurement with ease.

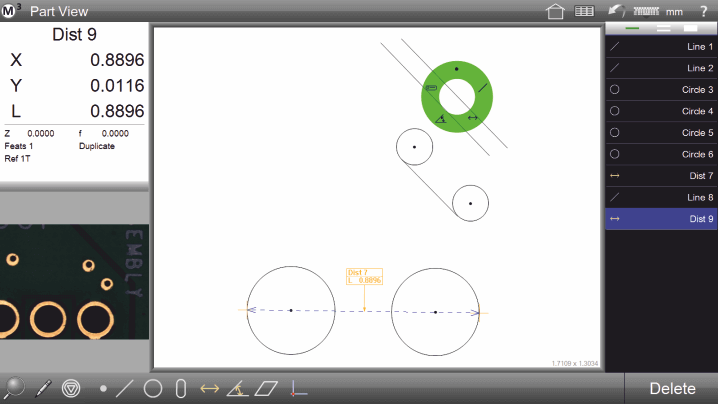

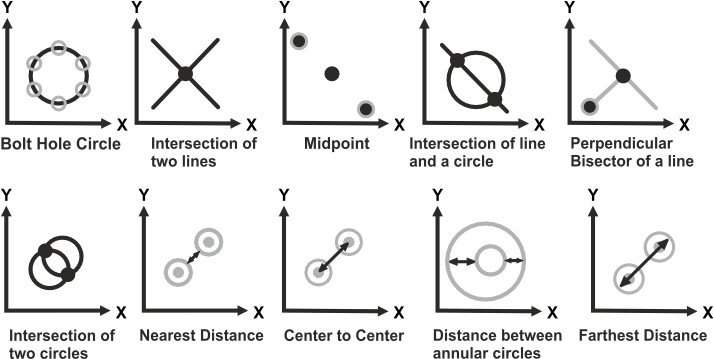

All you must do is choose two or more features, and the system will form intersections or constructions. This is quick and easy, without the need for heavy and confusing construction menus, satisfying even the user with strict requirements.

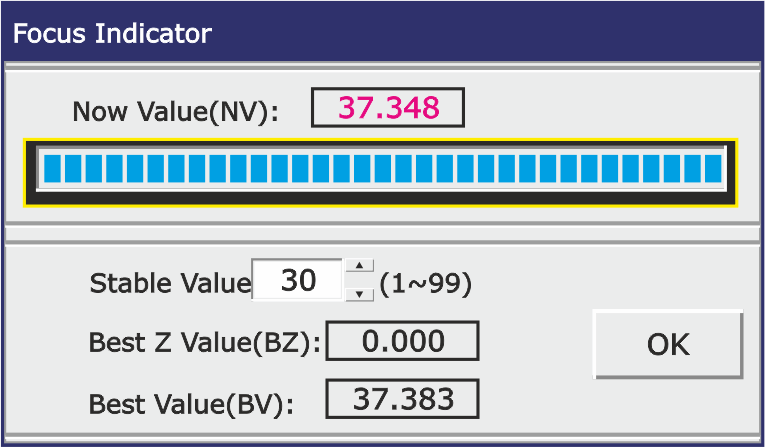

The system highlights the best focus value and matching Z value, helping you make sure you ensure transparency and sharp an image to the fullest before performing your scale. Focus is critical for 3D accuracy.

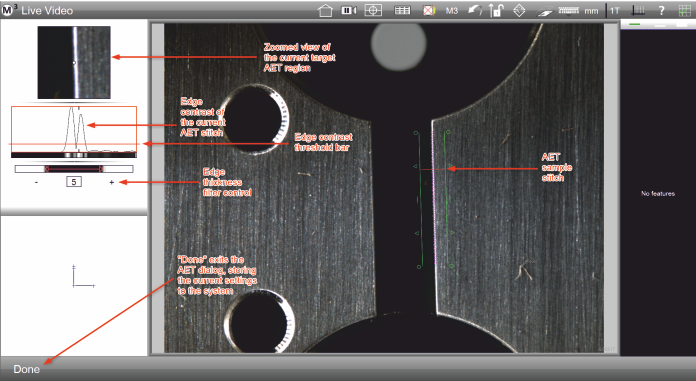

Enhance Edge Detection is capable of handling varying lighting and images, allowing you to quickly capture features with poor contrast or close spacing.

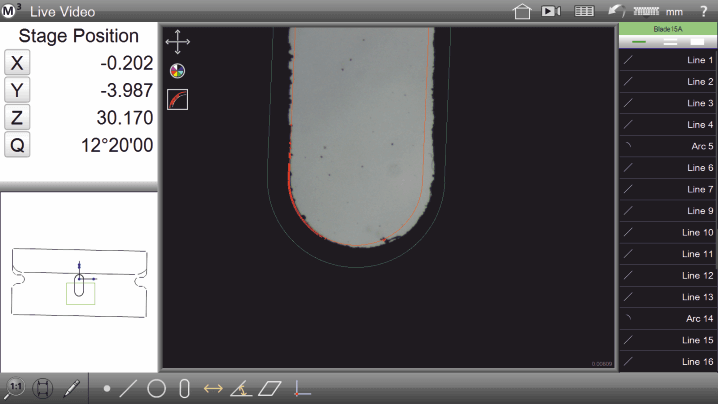

Easily import your CAD overlays (DXF files) to compare features and inspect parts. Any tolerances that were violated will be identified and shown so you can easily see where it deviated, with a live error whisker display.

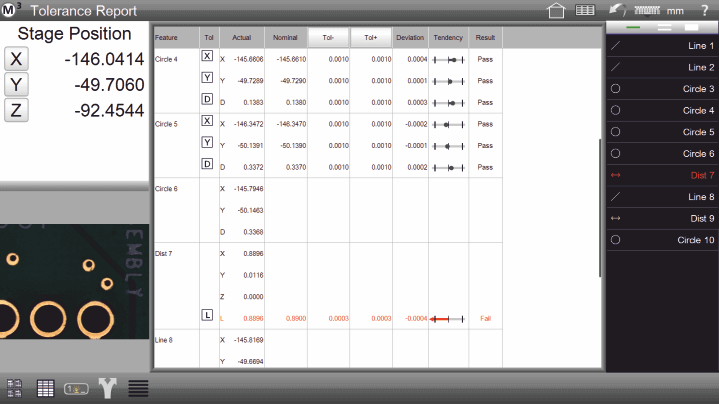

• Data formats with flexibility
• Custom header with company name
• Header and footer graphics with logo and page numbers
• Include part view graphics for visuals in reporting
• Automatic time and date stamps for traceability
• Include user or component details

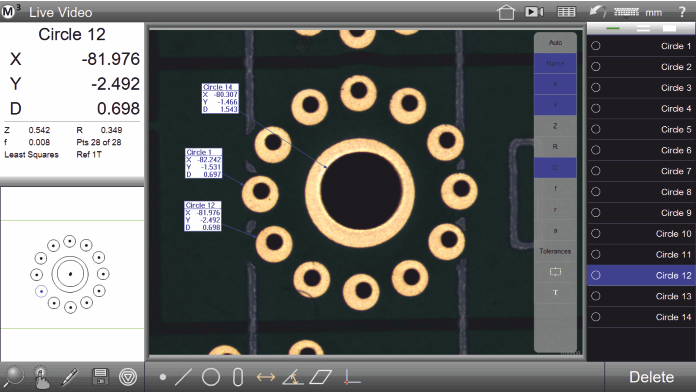

From the part view, quickly access feature tools directly from the Gesture Menu. include personalized feature data to your live video or part view, depending on only the data you need.
Measurements include Size: X/Y/Z positional, Diameter, Radius, Length, Width, Angle (Theta) Form: Straightness, Roundness, Flatness Orientation: Parallelism, Perpendicular, Angularity
Position: True position (LMC/MMC modifiers) Concentricity, Symmetry, Runout.
Download the combined catalogue to check advanced dimensional measurement machines for multiple industries
Discover your best fit video measuring system for rubber and plastic parts. If facing problem do contact to us

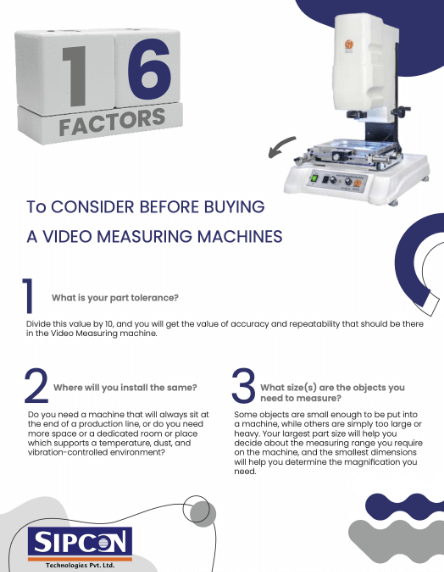

As we are manufacturers of Video measuring machine we have found out some factors that are important before buying
