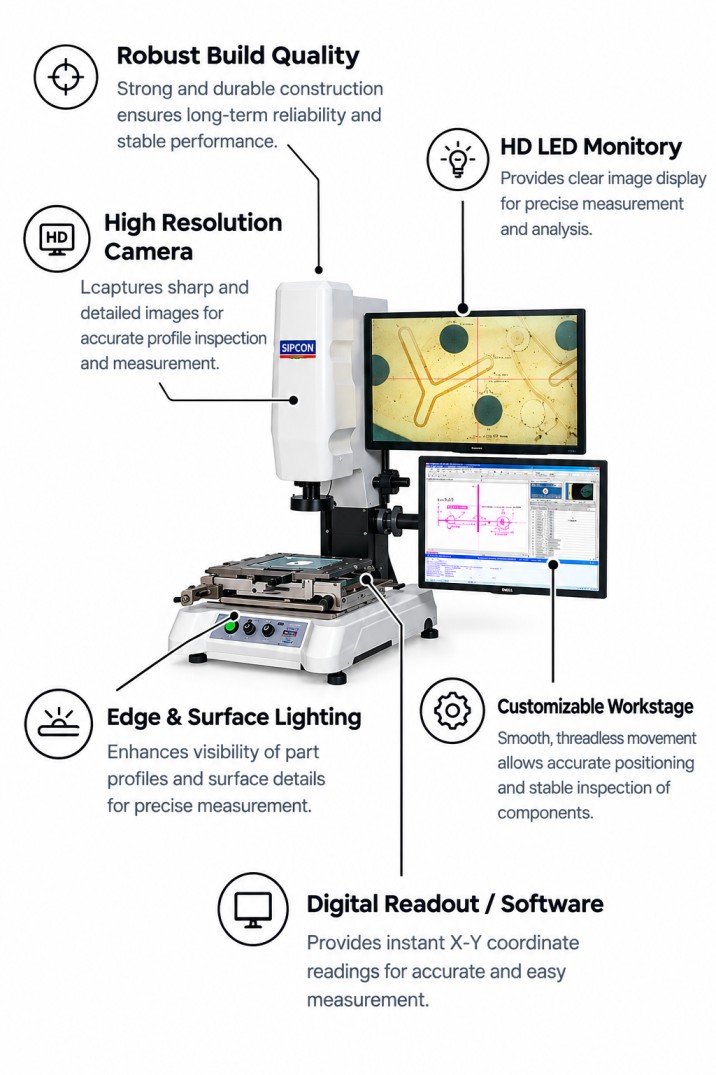

Strong and durable construction ensures long-term reliability and stable performance
Captures sharp and detailed images for accurate profile inspection and measurement
Enhances visibility of part profiles and surface details for precise measurement
Ensures clear image display for precise measurement and analysis
Provides instant X-Y coordinate readings for accurate and easy measurement
Smooth, threadless movement allows accurate positioning and stable inspection of components
Aluminium extrusion
Automotive
Brass
Electrical
.jpg)
Fastener and Gears
Medical
Pharma Packaging Industry
Rubber Industry
Inaccurate angle checks, inconsistent measurements and dependency on skilled operators can lead to tool rejection, poor machining quality and production losses
| Field | Details |
|---|---|
| MEASURING RANGE | Size: 100 Γ 100 mm Opt: X-Axis upto 500 mm, Y-Axis upto 400 mm |
| OPTIONALS | Optional (Binocular / Trinocular) |
| RESOLUTION | 0.001 / 0.0005 mm |
| MEASURING SYSTEM |
GEO D.R.O. / SIPMEAS / M2 Software Opt: X-axis upto 350mm, Y-axis upto 250mm |
| FOCUSSING RANGE | 100 mm (without encoder) |
| POWER SUPPLY | 220β240 V Β±5%, 50/60 HZ |
| LINEAR ACCURACY | (3 + L/200) micron |
| REPEATABILITY | Β± (0.002 mm) |
| VISION | 1/3" High resolution CCD Camera |
| MAGNIFICATION | Optical Magnification 0.7X β 4.5X |
| MEASUREMENT METHOD | With Cross-Hair on Screen |
| BASE PLATFORM | Metal |
| OPERATION | Manual with Quick Release Knob |
| LOAD CAPACITY | 10 KGs |
| ILLUMINATION |
Surface: LED Contour: LED |
| JOYSTICK | Optional |
Readout Solution
| Parameter | DRO | Software |
|---|---|---|
| Economics | Economical solution | Expensive as you require a pc or a tablet to run the same |
| Reverse engineering | Expert to CAD for reverse engineering is not possible | Its possible |
| Reporting | Either take a print out or notes the results and then make the report PC | Direct Transfer to Excel or PDF |
| Color Coded Pass and Fail | Its and LCD/LED display so no colors | Possible |
| Tolerancing | Not Possible in simple DRO but only in high end like QC 2005 | Possible |
| Graphical View | Very Limited | Fully editable graphical view with dimension marking |
| Data Transfer | Limited though USB or Hyper terminal into PC | Seamless data transfer in any format .xls, PDF, IGS, DXF |
| Maintenance | Hardware cost is high | Even if the software is corrupted, reinstall the same |
| CNC option | Cannot be used with CNC profile Projectors | Can be used in both manual and CNC option |
| Profile tolerance (Comparison) | Not Possible | Not Possible |
| Environmental Factors | DRO is an industrial equipment can work at extreme temperatures as well as in dusty conditions | Since the software runs on a PC which needs a dust free environment |
| Ergonomics | Since its portable so it makes it handy and easy to operate just besides the projector | Operating mouse can be slight inconvenient but a touch screen option can remove this disadvantage |
Discover our trusted dimensional measurement systems for high-precision inspection
Explore SIPCONβs Profile Projector - 2D profile projectors, Shadowgraph and Camera Based Profile Projector
An expert guide by top Camera based Profile Projectors manufacturers to choose the best system
Get in touch with us, our experts will get back to you
