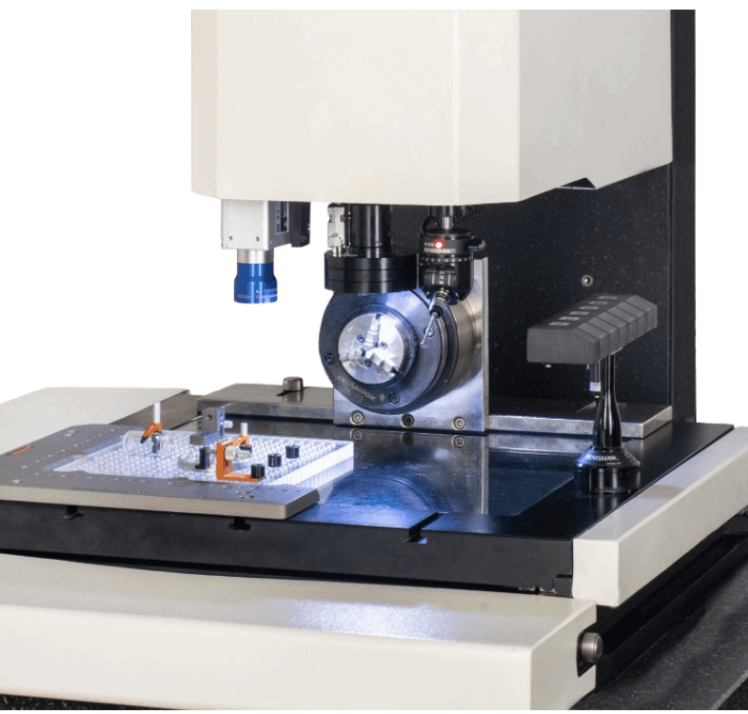

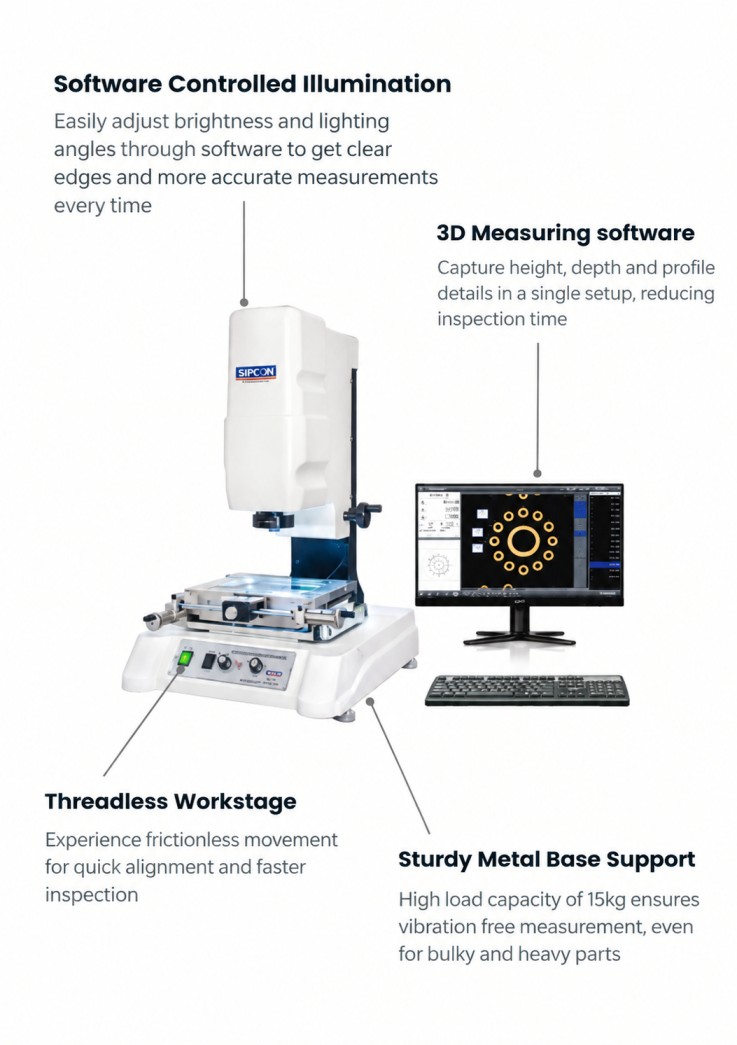

Easily adjust brightness and lighting angles through software to get clear edges and more accurate measurements every time
Experience frictionless movement for quick alignment and faster inspection of inspection
Capture height, depth and profile details in a single setup, reducing inspection time
High load capacity of 15kg ensures vibration free measurement, even for bulky and heavy parts

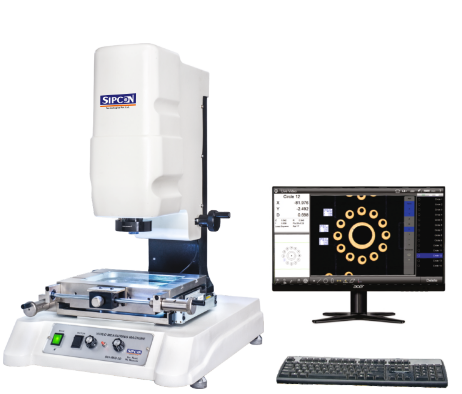

SIPCON is the leading vision measuring machine manufacturer in India, offering advanced optical measurement machines and video measuring systems designed for high precision industrial inspection. Our VMM ensures accurate, fast and non-contact measurement for complex components

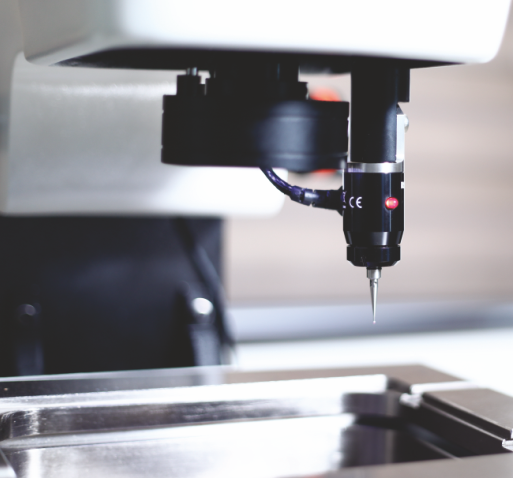

Go beyond 2D inspection. Accurately measure height, depth and complex geometries with a high-precision probe β ensuring complete dimensional validation in one setup
Adjust lighting instantly based on component type of archive edge clarity β eliminating guesswork and ensuring consistent, repeatable measurement every time
| Field | Details |
|---|---|
| Software | SIPMEAS / M3 |
| Measuring Range |
Standard: 150 x 100 x 100 mm Optional: X-Axis up to 500 mm, Y-Axis up to 400 mm, Z-Axis up to 300 mm |
| Resolution | 0.001 / 0.0005 / 0.0001 mm |
| Linear Accuracy | (3 + L/200) micron |
| Repeatability | Β± (0.002 mm) |
| Vision | 1/3" High resolution CMOS camera |
| Magnification |
Optical: 0.7X - 4.5X On Monitor: 35X - 225X |
| Video Edge Detection | Standard |
| Illumination |
Surface: LED Contour: LED |
| Operation | Manual with quick release knob |
| Base Platform | Metal base / Granite base |
| Platform Load Capacity | 15 Kgs |
| Power Supply | AC - 110/220V (50/60 Hz), single phase |
| Optional Features |
β’ Motion control through joystick β’ Touch probe β’ Autofocus |
Explore our several range of Measurement solutions for accurate inspections
Discover our models of Vision measurement systems for effortless measurements
An expert guide that helps you to choose the best system according to your needs
A vision measuring machine is used to accurately measure the dimensions and features of objects using a vision camera and specialized software. It helps in quality control, precision engineering, and ensuring accurate manufacturing by providing precise measurements quickly and efficiently.
Look for certifications from recognized organizations in the industry, such as ISO certifications or compliance with standards like ASTM or NIST. Verified manufacturers often display these credentials on their websites or product information. Additionally, check customer reviews and feedback.
Vision measuring machine prices range from βΉ3.5 lakh to βΉ20 lakh in India. The price can vary based on the model, features, and technical specifications.
To buy a vision measuring instrument from a genuine manufacturer, there are many suppliers and traders in the industry that provide cheap, low-quality products. But we always recommend that customers purchase measuring instruments that adhere to ISO, JIS standards, etc. These instruments must be purchased only from a genuine manufacturer that provides prompt service and has a dedicated service team.
