What is the use of horizontal profile projector?

A horizontal profile projector is used for precise measurement and inspection of the dimensions and contours of small mechanical parts. It projects an enlarged shadow of the part onto a screen for accurate assessment of its features, making it easier to measure and ensure the part meets specifications.

How to identify verified horizontal profile projector manufacturers?

Look for certifications like ISO, check industry directories and online platforms for reviews and ratings, and directly communicate with manufacturers while requesting product samples or a factory visit to ensure credibility.

What is the price of horizontal profile projector in India?

horizontal profile projectors in India typically range from 2 -90 lakhs, but prices vary based on brand and features.

From where to buy genuine horizontal profile projector machine?

To buy horizontal profile projector machine from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.

How to get a free quotation for horizontal profile projector?

To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.

Horizontal Profile Projector Price, Manufacturer in India

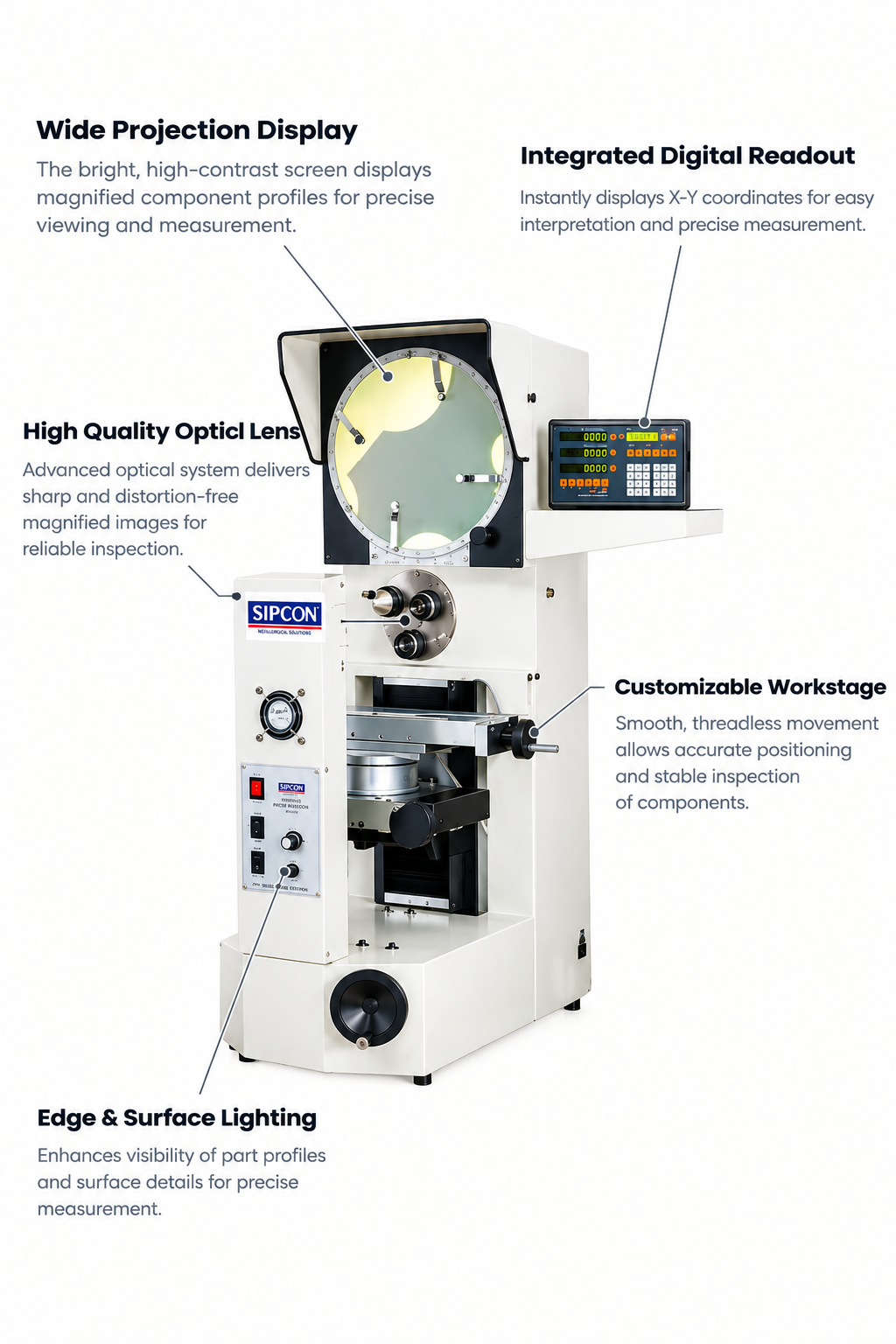

Wide Projection Display

The bright, high-contrast screen displays magnified component profiles for precise viewing and measurement

High Quality Optical Lens

Advanced optical system delivers sharp and distortion-free magnified images for reliable inspection.

Edge & Surface Lighting

Enhances visibility of part profiles and surface details for precise measurement

Integrated Digital Readout

Instantly displays X-Y coordinates for easy interpretation and precise measurement.

Customizable Workstage

Smooth, threadless movement allows accurate positioning and stable inspection of components.

Industry We Serve

Aluminium extrusion

Automotive

Brass

Electrical

Fastener and Gears

Medical

Pharma Packaging Industry

Rubber Industry

Technical Details

Field	Details
Screen Size	300 / 400 mm
Construction	Opaque glass screen with 90° cross line, L.C. 1 min
Workstage Size	Std: (400 x 150) / (450 x 200) mm
Measuring Range	Std: (150 x 100) / (200 x 100) mm (200 x 150) mm Opt: X-axis up to 350 mm, Y-axis up to 250 mm
Light Axis	Horizontal
Focusing	75 mm / 100 mm
Linear Measurement	Built-in glass scale / linear encoder
Optics	Std: 10X Opt: 20X, 50X, 100X Mount: Turret with click stop
Projection Accuracy	±0.05% (Contour / Surface)
Helix Range	±12° / ±15°
Measuring System	D.R.O / PC Based Software
Cooling System	Fan
Illumination	Contour: 24V / 150W halogen lamp with condenser unit Surface: Twin 24V / 150W halogen lamp
Motorized Movement	Optional: X, Y, focusing with speed control
Optional Hardware	Profile charts, rotary table, V-block, centre holding device, edge sensor, rotary encoder
Power Supply	AC 110 / 220V (50 / 60 Hz), single phase

Still Measuring One Feature at a Time on VMM?

Parameter	DRO	Software
Economics	Economical solution	Expensive as you require a pc or a tablet to run the same
Reverse engineering	Expert to CAD for reverse engineering is not possible	Its possible
Reporting	Either take a print out or notes the results and then make the report PC	Direct Transfer to Excel or PDF
Color Coded Pass and Fail	Its and LCD/LED display so no colors	Possible
Tolerancing	Not Possible in simple DRO but only in high end like QC 2005	Possible
Graphical View	Very Limited	Fully editable graphical view with dimension marking
Data Transfer	Limited though USB or Hyper terminal into PC	Seamless data transfer in any format .xls, PDF, IGS, DXF
Maintenance	Hardware cost is high	Even if the software is corrupted, reinstall the same
CNC option	Cannot be used with CNC profile Projectors	Can be used in both manual and CNC option
Profile tolerance (Comparison)	Not Possible	Not Possible
Environmental Factors	DRO is an industrial equipment can work at extreme temperatures as well as in dusty conditions	Since the software runs on a PC which needs a dust free environment
Ergonomics	Since its portable so it makes it handy and easy to operate just besides the projector	Operating mouse can be slight inconvenient but a touch screen option can remove this disadvantage
