What is the use of shadowgraph profile projector?

A shadowgraph profile projector is used to magnify and measure the profiles of objects by projecting their shadows onto a screen for detailed examination. It's handy in manufacturing for checking dimensions and shapes of parts to ensure they meet specifications.

How to identify verified shadowgraph machine manufacturers?

Look for the ISO certifications, positive customer reviews, and a strong industry presence. Reliable manufacturers offer detailed specs, good customer support, and warranties for their shadowgraph machines.

What is the price of shadowgraph machine in India?

Shadowgraph machines in India can vary widely based on size, features, and brand. Their price range might be from ₹70,000 to ₹1,00,000 INR and go up significantly depending on specifications and quality.

From where to buy genuine shadowgraph machine?

To buy shadowgraph machine from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.

How to get a free quotation for shadowgraph machine?

To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.

Shadowgraph Profile Projector

From the World’s Leading Manufacture in High-Precision
Optical Measurement for Every Industry

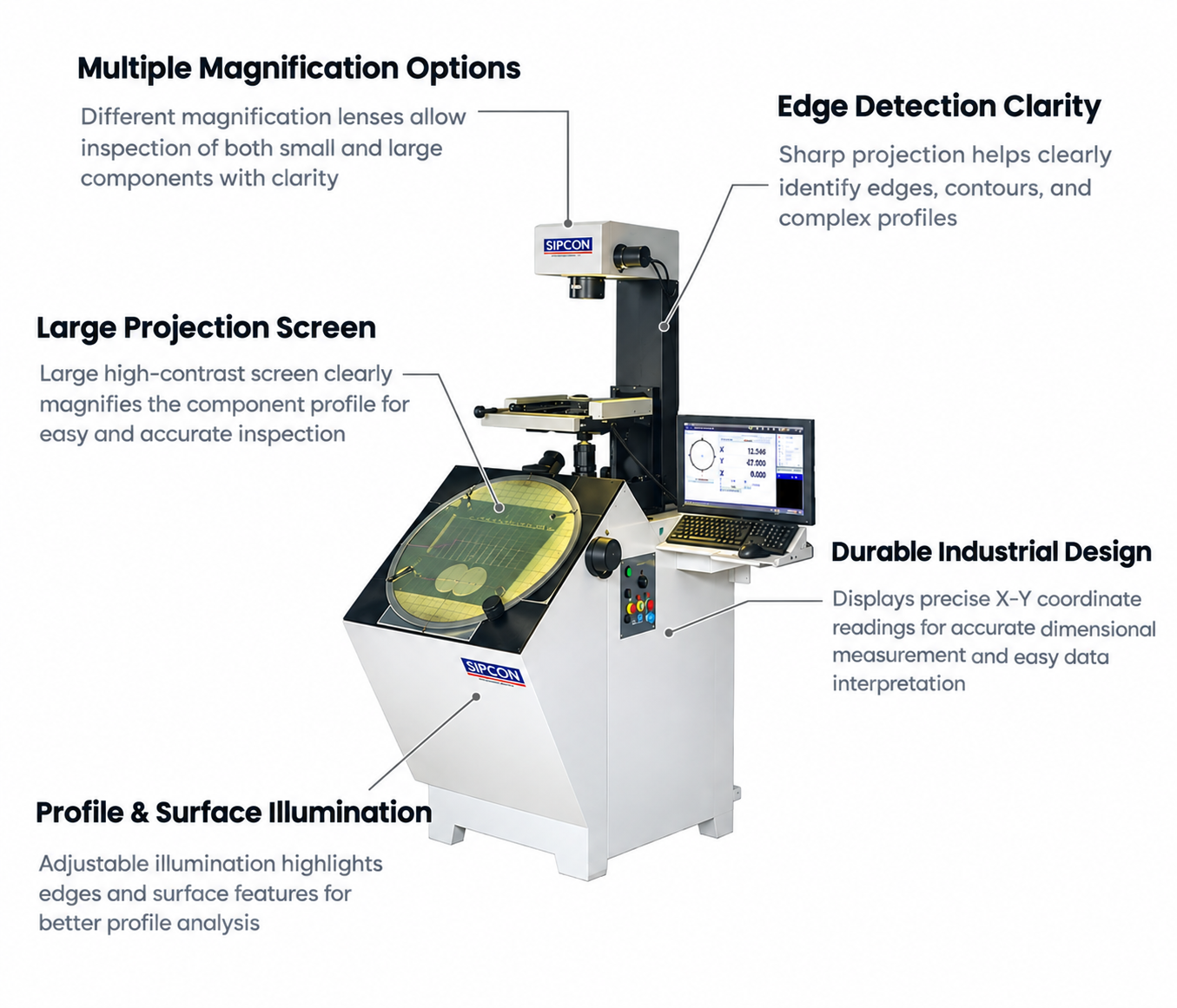

Multiple Magnification Options

Different magnification lenses allow inspection of both small and large components with clarity

Large Projection Screen

Large high-contrast screen clearly magnifies the component profile for easy and accurate inspection

Profile & Surface Illumination

Adjustable illumination highlights edges and surface features for better profile analysis

Edge Detection Clarity

Sharp projection helps clearly identify edges, contours, and complex profiles

Durable Industrial Design

Displays precise X-Y coordinate readings for accurate dimensional measurement and easy data Interpretation

Industry We Serve

Aluminium extrusion

Automotive

Brass

Electrical

Fastener and Gears

Medical

Pharma Packaging Industry

Rubber Industry

Technical Details

Field	Details
Screen Size	300 / 400 / 600 / 800 mm dia
Construction	Opaque glass screen with 90° cross line fitted with L.C. 1 min
Workstage Size	Standard: 160 × 160 mm, 200 × 200 mm, 260 × 260 mm Optional: X-axis up to 350 mm, Y-axis up to 250 mm
Measuring System	Micrometers / D.R.O. / PC-based software
Focusing	100 mm
Linear Measurement	0–25 µm with LC 0.001 mm 0–25 µm micrometers / Built-in glass scale
Projection Accuracy	±0.05% (Contour/Surface)
Cooling System	Fan
Light Axis	Vertical
Stand	Unique rigid pedestal system facilitates vibration-free handling of component
Illumination	Contour: 24V / 150W halogen lamp with illumination control & condenser unit Surface: Twin 24V / 150W halogen lamps
Motorized Movement	Optional (X, Y and focusing)
Optional Hardware	Profile charts, rotary table, V-block, centre holding device, opto edge sensor, rotary encoder
Power Supply	AC 110/220V (50/60 Hz), single phase

Unsure about choosing between DRO and Software?

Parameter	DRO	Software
Economics	Economical solution	Expensive as you require a pc or a tablet to run the same
Reverse engineering	Expert to CAD for reverse engineering is not possible	Its possible
Reporting	Either take a print out or notes the results and then make the report PC	Direct Transfer to Excel or PDF
Color Coded Pass and Fail	Its and LCD/LED display so no colors	Possible
Tolerancing	Not Possible in simple DRO but only in high end like QC 2005	Possible
Graphical View	Very Limited	Fully editable graphical view with dimension marking
Data Transfer	Limited though USB or Hyper terminal into PC	Seamless data transfer in any format .xls, PDF, IGS, DXF
Maintenance	Hardware cost is high	Even if the software is corrupted, reinstall the same
CNC option	Cannot be used with CNC profile Projectors	Can be used in both manual and CNC option
Profile tolerance (Comparison)	Not Possible	Not Possible
Environmental Factors	DRO is an industrial equipment can work at extreme temperatures as well as in dusty conditions	Since the software runs on a PC which needs a dust free environment
Ergonomics	Since its portable so it makes it handy and easy to operate just besides the projector	Operating mouse can be slight inconvenient but a touch screen option can remove this disadvantage
