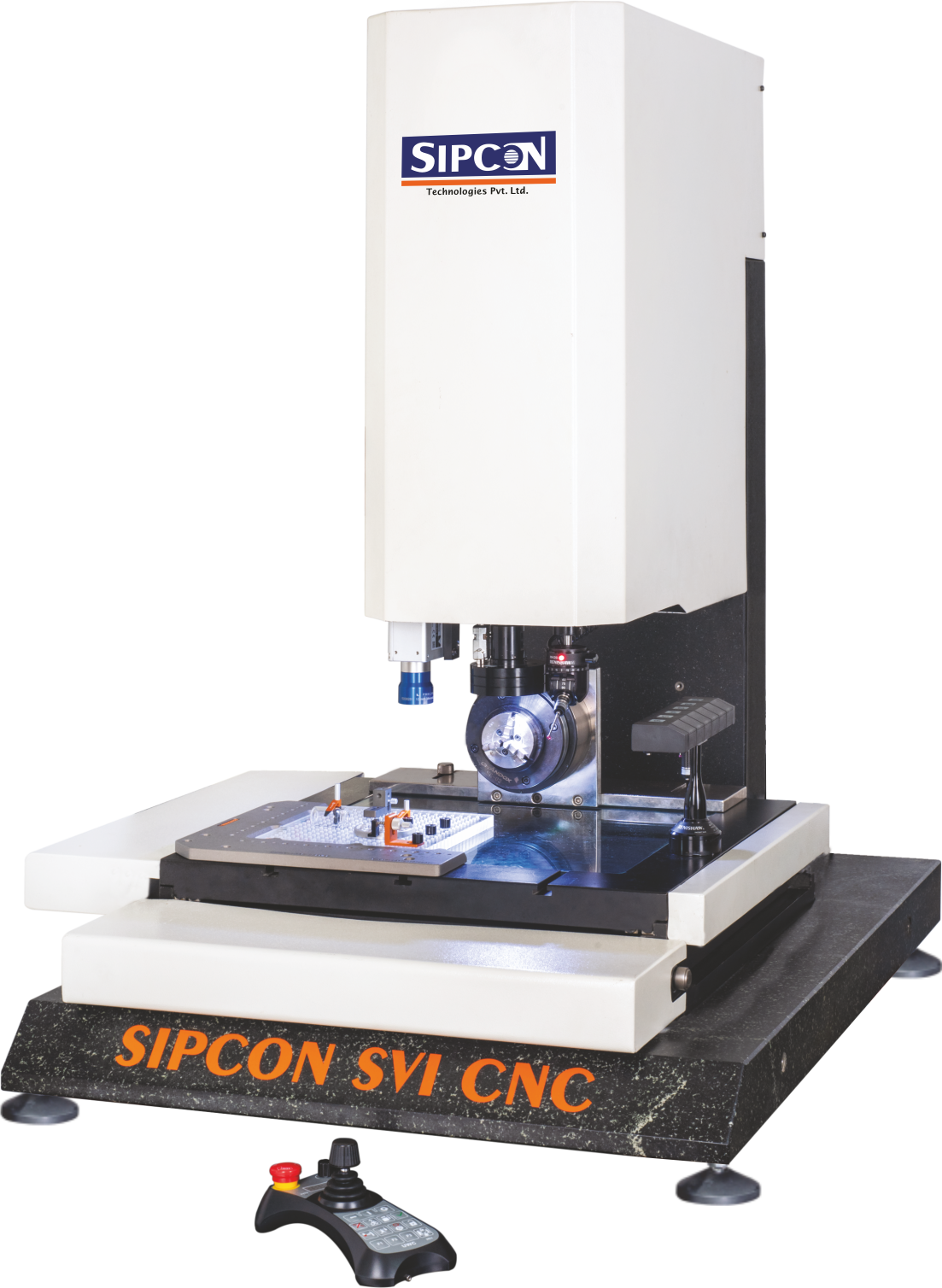

One System, Complete Inspection - Optical, Touch & CNC in One VMM

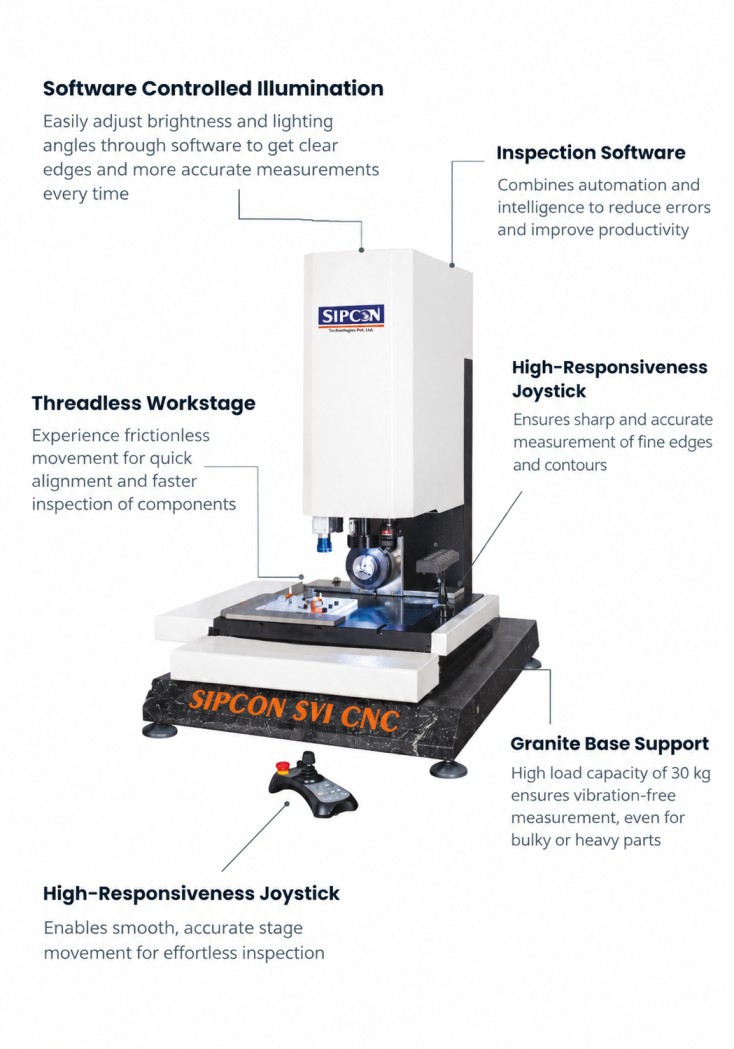

Easily adjust brightness and lighting angles through software to get clear edges and more accurate measurements every time
Experience frictionless movement for quick alignment and faster inspection of components
Enables smooth, accurate stage movement for effortless inspection
Combines automation and intelligence to reduce errors and improve productivity
Ensures sharp and accurate measurement of fine edges and contours
High load capacity of 30 kg ensures vibration-free measurement, even for bulky or heavy parts
Manual inspection slows you down, creates inconsistencies, and depends heavily on operator skill. With CNC inspection, achieve fast, repeatable, and fully automated measurementsβevery single time

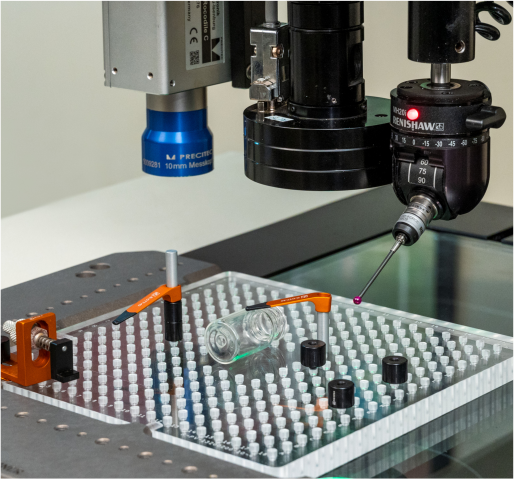

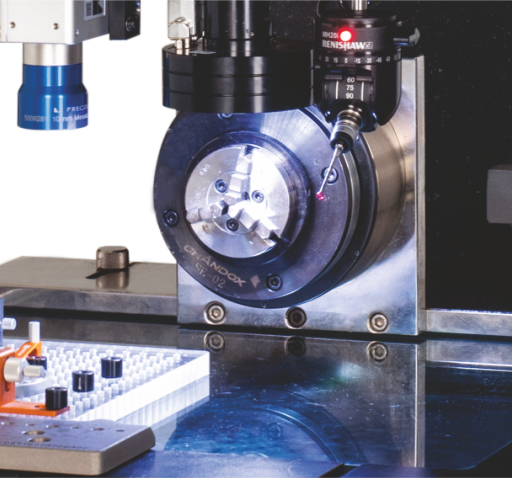

Move beyond 2D inspection. Accurately capture
height, depth, and complex geometries with a
high-precision probeβensuring complete
dimensional validation in a single setup
Instantly adjust lighting based on component requirements to achieve sharp edge clarityβ eliminating guesswork and delivering consistent, repeatable measurements
| Field | Details |
|---|---|
| Software | MSU-3DPro / M3 |
| Measuring Range |
Standard: 250 Γ 150 Γ 200 mm Optional: X-Axis up to 500 mm, Y-Axis up to 400 mm, Z-Axis up to 300 mm |
| Resolution | 0.001 / 0.0005 / 0.0001 mm |
| Linear Accuracy | (3 + L/200) micron |
| Repeatability | Β± (0.002 mm) |
| Vision | 1/3" High resolution CMOS camera |
| Magnification |
Optical: 0.7X - 4.5X On Monitor: 35X - 225X |
| Video Edge Detection | Standard |
| Illumination |
Surface: LED Contour: LED |
| Operation | CNC |
| Base Platform | Granite base |
| Platform Load Capacity | 30 Kgs |
| Power Supply | AC - 110/220V (50/60 Hz), single phase |
| Optional Features |
β’ Motion control through joystick β’ Touch probe β’ Autofocus |
Overlap comparison, intelligent light control, tolerance setting & instant result display, efficient data management & export, quick report generation, precise deviation analysis of point data
Geometric tolerancing, fully customizable reporting, datuming features, DXF overlay comparison, advanced edge detection, one-click thread measurement, touch probe support, statistical report generation
Explore our several range of Measurement solutions for accurate inspections
Discover our models of Vision measurement systems for effortless measurements
An expert guide that helps you to choose the best system according to your needs
A CNC video measuring machine is used to precisely measure the dimensions and inspect the features of objects or parts using a camera, computer software, and automated movement control.
To identify verified CNC video measuring machine manufacturers, look for certifications like ISO, check industry directories, read customer reviews, and verify their reputation through industry associations or trade shows.
The price of a CNC video measuring machine in India can vary widely based on brand, specifications, and features, but it generally ranges from βΉ9 lakh to βΉ80 lakh or even crores, depending on the complexity and precision required.
To buy a CNC video measuring machine from a genuine manufacturer, there are many suppliers and traders in the industry that provide cheap, low-quality products. But we always recommend that customers purchase measuring instruments that adhere to ISO, JIS standards, etc. These instruments must be purchased only from a genuine manufacturer that provides prompt service and has a dedicated service team.
To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.
