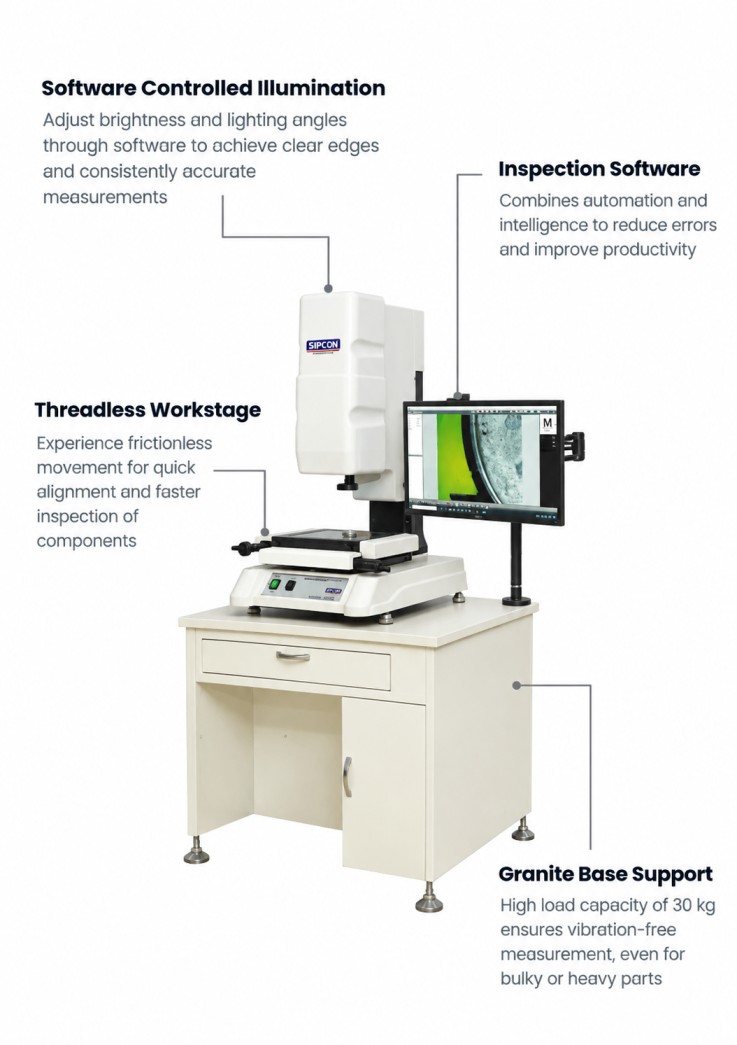

Adjust brightness and lighting angles through software to achieve clear edges and consistently accurate measurements
Experience frictionless movement for quick alignment and faster inspection of components
Combines automation and intelligence to reduce errors and improve productivity
High load capacity of 30 kg ensures vibration-free measurement, even for bulky or heavy parts
| Field | Details |
|---|---|
| SOFTWARE | M3 |
| Measuring Range |
Standard: 250 × 150 × 200 mm Optional: X-Axis upto 500 mm, Y-Axis upto 400 mm, Z-Axis upto 300 mm |
| Resolution | 0.001 / 0.0005 / 0.0001 mm |
| LINEAR ACCURACY | (3+L/200) micron |
| REPEATABILITY | ± (0.002 mm) |
| Vision | 1/3" High resolution CMOS camera |
| Magnification |
Optical: 0.7X - 4.5X On Monitor: 35X - 225X |
| Video Edge Detection | Standard |
| Illumination |
Surface: LED Contour: LED |
| Operation | CNC |
| Base Platform | Granite base |
| Platform Load Capacity | 30 Kgs |
| Power Supply | AC - 110/220V (50/60 Hz), single phase |
| Optional Features |
• Motion control through joystick • Touch probe • Autofocus |
Overlap comparison, intelligent light control, tolerance setting & instant result display, efficient data management & export, quick report generation, precise deviation analysis of point data
Geometric tolerancing, fully customizable reporting, datuming features, DXF overlay comparison, advanced edge detection, one-click thread measurement, touch probe support, statistical report generation
