Coaxial Profile Projectors

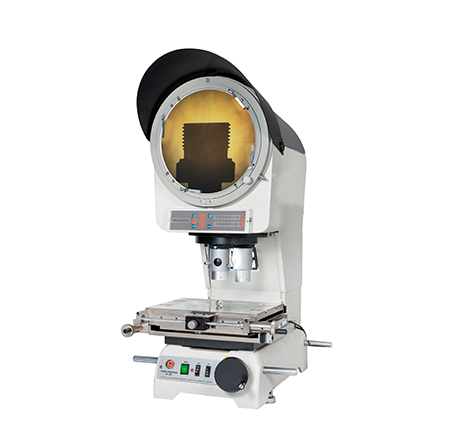

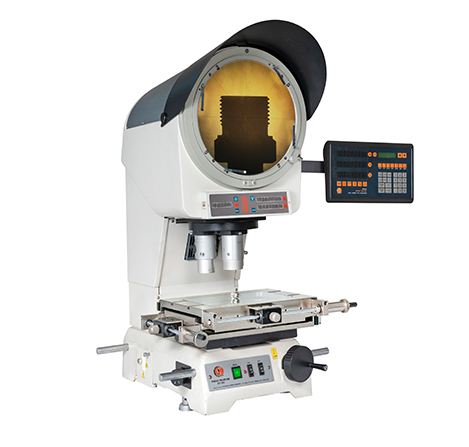

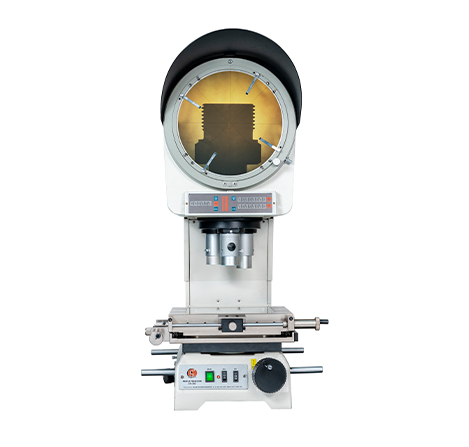

Sipcon coaxial profile projectors are most advanced form of profile projectors available in the market today. The projectors are shop floor environment friendly, providing an optimal balance between performance, cost, accuracy, and user-friendliness.

Salient Features
  • Erect and unreversed image
  • Up and down movement by movement of projection screen
  • Coaxial (through the lens lighting) Lens system
  • Magnification options – 5X,10X, 20X, 50X and 100X
  • Highly suitable for deep cavity inspection

Sipcon Profile Projectors comes with world finest projection lenses, optical components and outstanding Illumination that ensures a fully correct image, superb image contrast and resolution right to the edge of the screen.

The international standard calibration system assures highest level of accuracy with International and NPL traceability. With a network of fully trained marketing agents SIPCON provides full after sale service and support second to none.

Coaxial Profile Projectors
Pdf download icon

To know more about this product —

Download Product Catalogue

S. No Specifications SPN-300
1 SCREEN Size 300mm diameter
Construction Opaque fine grained ground glass screen with 90°,60°,30° cross line
Location Above the workstage,Ftted with graduated ring (0-360°) L.C. 1 min, through Digital Counter
Image Type Erect , not inverted
2 LIGHT AXIS Vertical
3 OPTICS Std 10X,20X - Parafocal optical system
Opt 50X, 100X
Mount 3 lens turret mount
4 WORKSTAGE SIZE Std 410mm x 310mm
Opt X Axis upto 550mm, Y axis upto 350mm
5 MEASURING RANGE Std 100mm x 100mm
Opt X axis upto 400mm, Y Axis upto 200mm
6 FOCUSING Travel 100mm
Method By raising & lowering the optical head
Movement Manual or Matorized
7 LINEAR MEASUREMENT Built in Glass Scale / Linear Encoder
8 Maginification ACCURACY Contour ± 0.05%
Surface ± 0.05%
9 ILLUMINATION Contour 24V/150W halogen lamp with illumination control with fan cooled system
Surface Twin 24V 150W halogen lamp - On axis vertical to provide coaxial light system with fan cooled system
10 Cooling System Fan

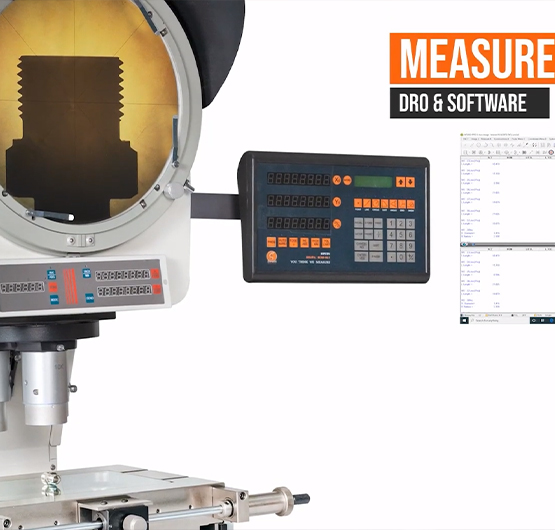

11 MEASURING SYSTEM D.R.O. / Software
12 RESOLUTION 0.001/0.005/0.0005 mm
13 MOTORIZED MOVEMENT Optional (X, Y and focusing with speed control)
14 STAND Unique rigid vibration free handling of component with adjusting feet
15 Optional Hardware Profile Charts, Rotary table, V-Block, Center Holding Device, Opto-edge Sensor

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Automobile Industry

Automobile Industry

Plastic Industry

Plastic Industry

Aerospace Industry

Aerospace Industry

Rubber Industry

Rubber Industry

Electrical Industry

Electrical Industry

Fasteners & Gears Industry

Fasteners & Gears Industry

Benefits of This Products

Deep Cavity Inspection

Due to through the lens lighting the deep blind holes are also illuminated fully.

True Colors on Screen

Coaxial illumination system projects true colors & contrast on the screen.

Erect Image

unlike traditional projectors the image in these projectors is true i.e left is projected on left and top on top side of mage makes it easier for operator to do the measurements.

No Focusing Movement

The up down movement is through movement of the projection screen so your part is stationary when you are focusing.

More Load Capacity

Due to stationary work table while focussing the load capacity is 20 kgs which is approximately double than the conventional projectors.

Thread Less Worktable

No threads for movements result in no wear and tear and because of this no backlash in movement.

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.
