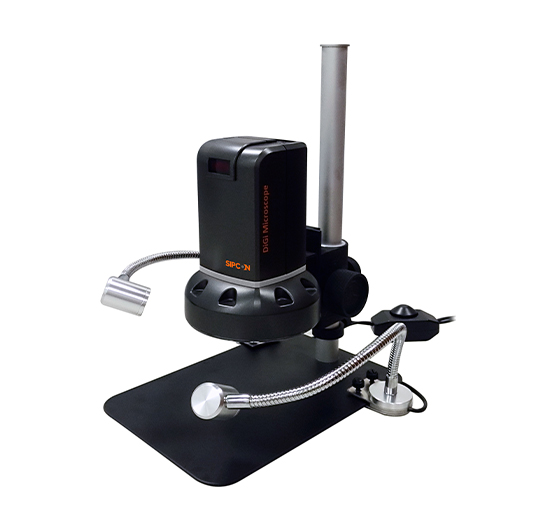

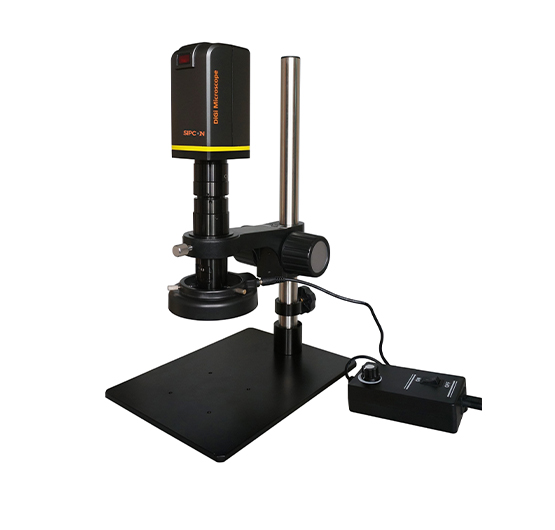

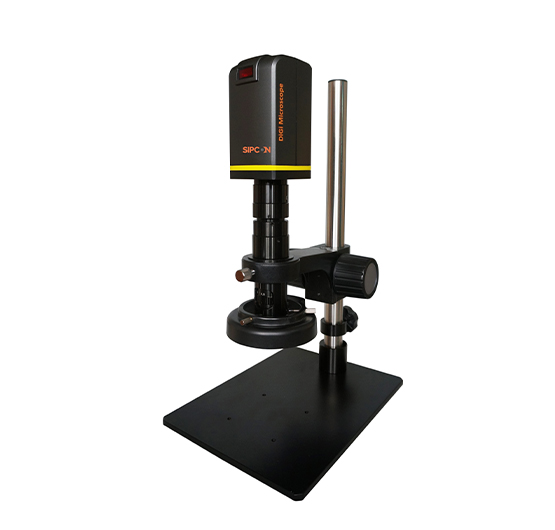

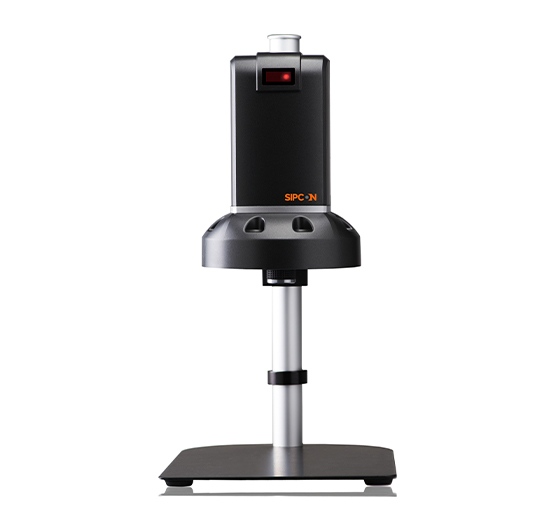

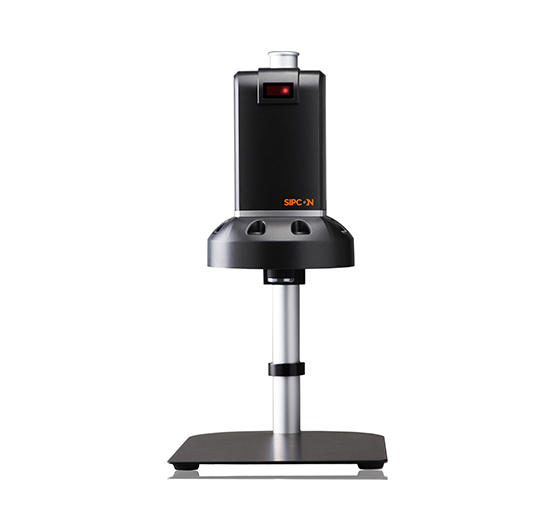

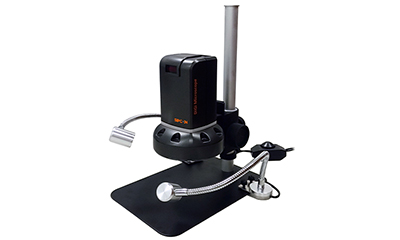

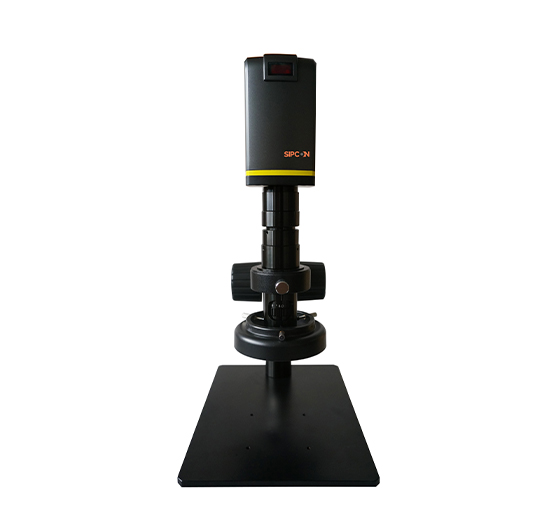

Digital Measuring Microscopes

Sipcon digital microscopes come with high resolution digital camera instead of an eyepiece so that you can easily view your parts on a monitor. With built in Autofocus function this microscope increases the throughput by reducing the time to focus the part every time.

Salient Features
  • Magnification range from 4X-132X
  • Built in Auto Focus
  • Multiple illumination options
  • Image capture option

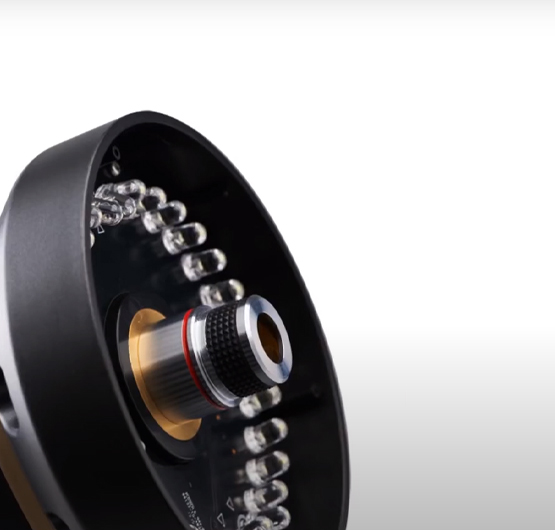

The microscope has built-in LED illuminator for surface inspection, ability to create auto-focus images and angled lighting options, provides more image resolution than eyepieces, and outstanding flexibility to handle a wide range of applications.

DMM
Pdf download icon

To know more about this product —

Download Product Catalogue

SPECIFICATIONS MAXY-140 MAXY-40
Magnification 3x - 43x on 24' monitor 12x - 132x on 21.5" monitor per 4x Lens
Working Distance 20mm - 300mm ( * ) 22.5mm - 226mm
Field of View 11 - 142 mm ( * ) 3.6 - 40 mm
CMOS Sensor 2M pixels 2M pixels
Signal Output Full HD 1080P Full HD 1080P & 60 fps
Dimension 68(L) x 66(W) x 169(H) mm 106 x 152(H)mm
Lens C-Mount Lens 4x Objective
Light Source Gooseneck light, adjustable Wide angle LED
Power Supply DC 5V/2A , Cable Length 180cm
Focus IR Remote Control Focus System for optional manual focus and Auto-focus

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Automobile Industry

Automotive

Chip

Chip

Cutting Tools

Cutting Tools

Electrical

Electrical

Electronics

Electronics

Large FOV

Large FOV

Medical

Medical

Pathology

Pathology

Plant Stem

Plant Stem

Precision Parts

Precision Parts

Rivets

Rivets

Benefits of This Products

Comfort

Sit comfortably and view on a monitor without getting fatigued.

Magnification

Both low and high to inspect big parts and minute details in the same setup.

Higher Quality Images

High dynamic range (HDR) for better contrast and color depth.

Image Storage

Images taken on a digital microscope can be saved on a computer hard drive or storage device.

Easy Operation

Increase the speed with ease of operation.

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.

The Biggest Range of Precise Measuring Solutions | Sipcon

The Biggest Range of Precise Measuring Solutions | Sipcon

Frequently Asked Questions

A digital microscope is used to magnify tiny objects and display them on a screen, making it easier to see details that might be difficult to observe with the naked eye. It's handy for scientific research, examining small objects like cells or minerals, and for educational purposes, allowing easy sharing and analysis of what's being seen.
Look for reputable manufacturers with certifications like ISO, CE, or FDA, indicating quality standards. Check reviews and feedback from users or experts to gauge credibility. Directly contacting the manufacturer for detailed information confirms authenticity and commitment to quality.
The price of a digital microscope in India can vary, starting from 70k and going up to 4 lakh or more, depending on the brand, features, and magnification capabilities.
To buy digital microscope from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.
To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.
×
