FOV based Video Measuring Machine

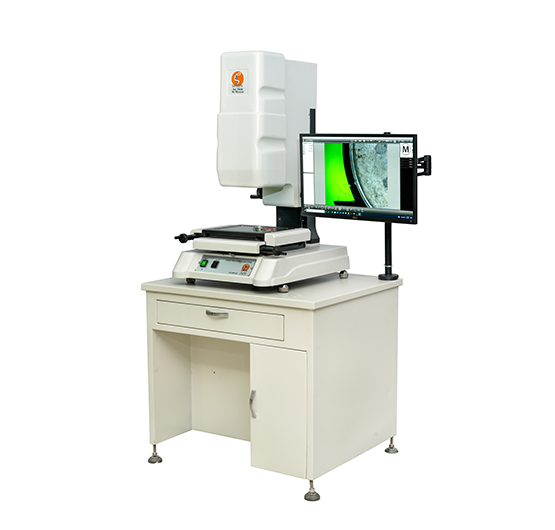

FOV based Video Measuring Machine is actually a video measuring machine with a large field of view that allows measuring parts up to 80 mm in one click. So you get both, the speed one click measurement machine for up to 80mm part area and you also have a big worktable to move and measure big parts up to 300 or 400mm.

Salient Features
  • Field of view up to 60/80mm
  • Measuring range from 100x100x100mm to 500x400x300mm
  • Full 2D software with least count – 1/0.5/0.1 micron
  • Fully integration with CAD for reverse engineering application

Sipcon Video Measuring machines comes with high-resolution telecentric lenses and a 12/16 Mp camera for bright and sharp images. The user-friendly 2D measurement software ensures the results are user-independent. Multiple report options to choose from make reporting very flexible and easy. Full GD&T measurement options enhance the capability of the system even further

FOV based video measuring system
Pdf download icon

To know more about this product —

Download Product Catalogue

Model No. SVI-CH-DR SVI-CH-QC SVI-CH-SW
Measuring System GEO D.R.O. Heidenhain ND1202 D.R.O. SIPMEAS Software
Measuring Range (Standard) 100mm X 100mm
(Optional) X-axis upto 500mm, Y-axis upto 400mm
Focusing Range 100mm (without encoder)
Resolution 0.005/ 0.001/ 0.0005mm
Linear Accuracy (3+L/200) micron
Repeatability ±(0.002mm)
Vision 1/3" High Resolution CCD Camera
Magnification Optical Magnification 0.7X - 4.5X
Measurement Method With the help of Cross-Hair on Screen
Optional Hardware PC +19' Monitor
Illumination Surface Fibre Optic/LED
Illumination Contour Halogen Lamp/LED
Operation Manual with Quick Release Knob
Base Platform & Column Metal Base
Platform Load Capacity 10Kg
Power Supply 220-240 V ± 5%, 50/60 Hz
Motion Control through Joystick Optional
Observation Head Optional(Binocular / Trinocular)
Focusing Slide Optional

Watch Live

View this video to learn how this product works?

This Product is Ideal For —

Automobile

Automobile

Cutting Tools

Cutting Tools

Aerospace

Aerospace

Rubber

Rubber

Electrical

Electrical

Fasteners & Gears

Fasteners & Gears

Benefits of This Products

GD&T Compliant

All GD&T tolerances like parallelism, perpendicularity, circularity and true position etc. can be measured in just one click.

One Click Measurement

80 mm part in oneclick in 5sesonds - Just keep on moving the work table and measure the complete part in just few clicks.

Measure Multiple Parts

Keep multiple parts on worktable and just bring them in field of view to measure the same in one click.

Reporting

Built-in 10 types of report format to choose from and also option to create your template.

Accurate Worktables

Worktable up to 500x400 mm with a load capacity of up to 25 kgs.

Reverse Engineering

Compatible with all CAD modeling software in the market.

Request a Quote

Fillup the form and our customer support manager helps you with pricing and more details about this product.
