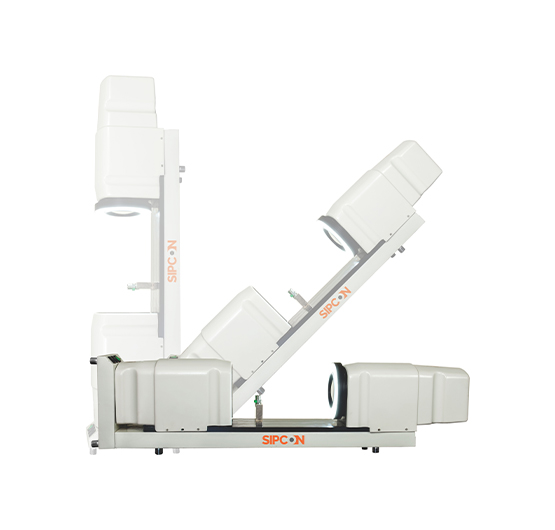

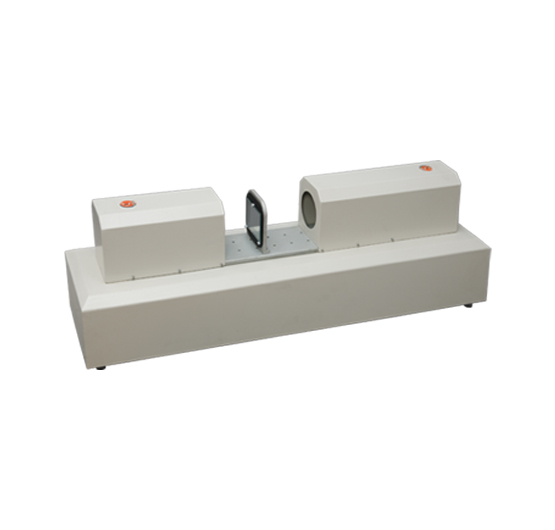

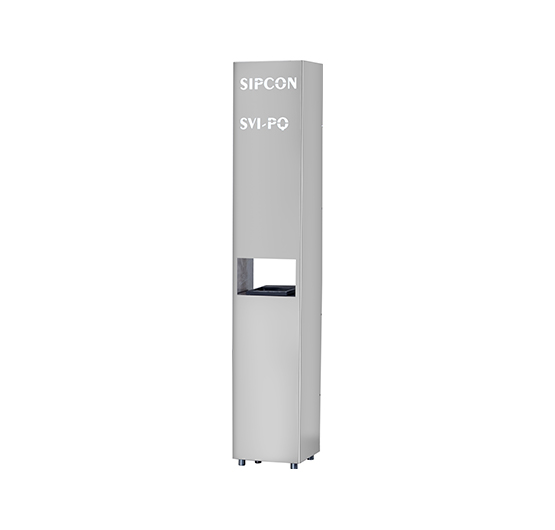

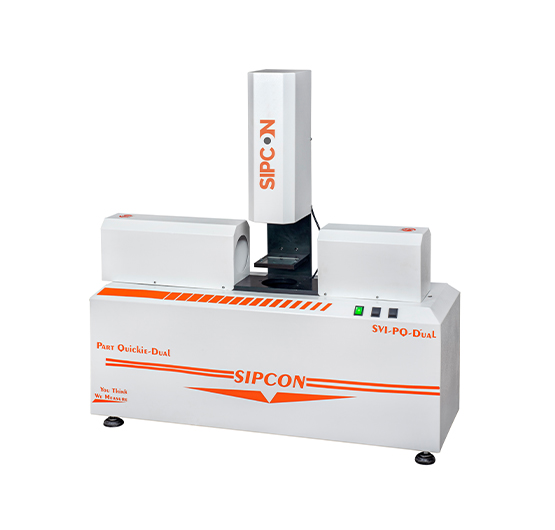

Sipcon introduces the fastest measurement system ever – Part Quickie. Now measure any kind of 2D geometry in parts with just one click. This ONE CLICK MEASUREMENT SYSTEM is cable of measuring points, lines, circles, angles, distances, pitch, positions, etc. Not only the above measurements but you can measure the various tolerance features like straightness, roundness, concentricity, parallelism, etc. The system comes in 2 versions horizontal and vertical to suit the requirement of the industry.

Salient Features
  • 10,000 points per feature for better accuracy and repeatability
  • Measurement time less than 3 seconds for 100 features
  • No orientation or reference required- 360 ⁰ compensation
  • Complete batch report with color coded pass and Fail in Excel or PDF

Part Genie- the fastest measurement system ever, This one click measurement solution for parts size and geometry measurements. This Automatic Optical Inspection or Optical profile inspection system is a great package of speed, accuracy, precision, operator independent results, and ease of use. The powerful software converts the image into real time dimensional data and measures the part to an accuracy of 3 microns.

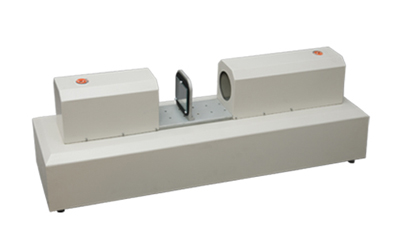

Part Genie
Pdf download icon

To know more about this product —

Download Product Catelogue

Model SVI-PQ-16 SVI-PQ-36 SCI-PQ-64 SVI-PQ-80 SVI-PQ-120 SVI-PQ-144
Field of View (W X H) 16x13mm 34x29mm 61x51mm 80x60mm 120x90mm 144x110mm
No. of Cameras 1
Camera 5MP Industrial Camera 12MP Industrial Camera
Accuracy ±3μm ±5μm
Repeatability ±2μm ±3μm
Least Count 0.1μm
Illumination-Surface (optional) LED
Illumination-Countour LED
Focusing Range(Optional) 30mm
Power Supply 110/220V @ 50Hz ±5%
Machine Weight 25Kgs to 50 Kgs
Interface USB/Ethernet
Optional Hardware Laptop/PC with WIN7/8/10 operating system
Base Platform & Column Metal
Auto Alignment 360° Compensation
Operating Temp. Range Ambient to 30°c
Max. Measurement Point 10,000
Batch Programming Optional
Touch Screen Monitor Optional
Table Optional N.A. (Floor Standing)
Software Features
Element Tools Point / Line / Circle / Arc / Distance / Angle
GD&T Parallelism / Perpendicularity / Concentricity / Eccentricity / Ovality / Straightness
Edge Detection AutoTools / Auto Edge Detection
Application Tools Pitch Measurement / Thickness Measurement / Width Measurement
Thread Analysis Minor Diameter / Major Diameter / Pitch / Thread Angle
Manual Measurement Yes
Coordinate System Configuration Yes
Batch Configuration of Tolerance Yes
Element List Editing Yes
Colour Measurement System Yes
CAD Interface DXF Overlay
Measurement of Images Yes

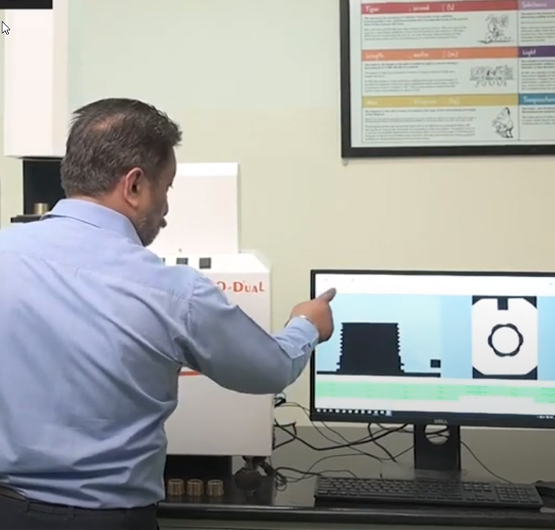

Watch Live

View this video to learn how this product works?
