India’s best measurement leader offering an image-based, one-click measurement system designed to solve dimensional inspection challenges across aerospace, automotive, rubber, electronics, brass, and other industries—complete your inspection tasks accurately in just one click
Perfect for top-view inspection offering quick and precise one-click measurement of flat and small-to-medium components

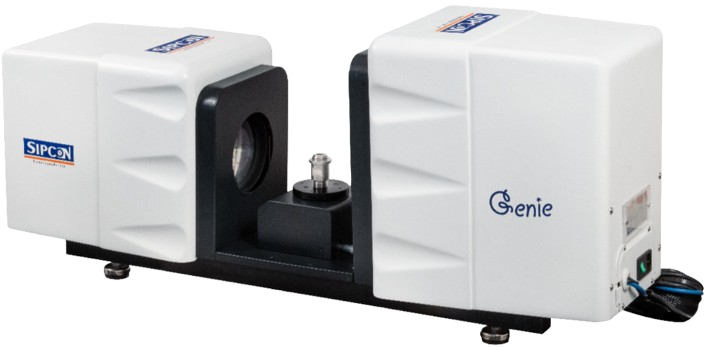

Built for detail side-profile and height inspection, delivering reliable accuracy for shafts and elongated components
.jpg)

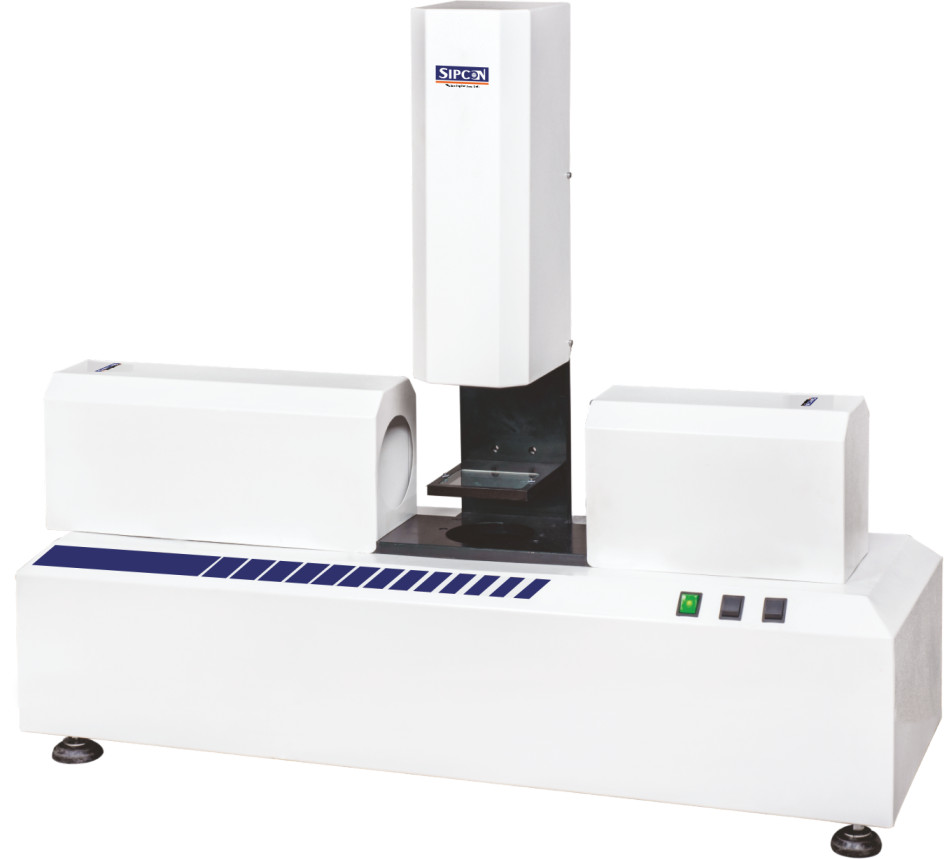

Designed for vertical and profile based measurement, ensuring precise evaluation of cylindrical and extended components
Trusted one-click measurement for rubber, cables, automotive parts, gears and brass parts - Ensuring accurate inspection of every part without causing any damage

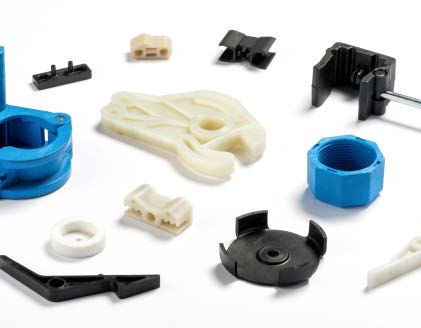

Plastic

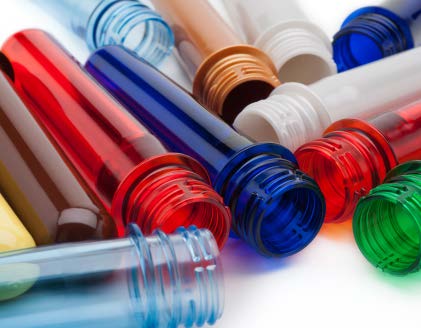

PET-Preform
Rubber
Gear
Bearings
Fasteners
Spring
Aerospace
Yes— One-Click Can Measure It
| Technical Specifications | SVI-VMPG-2020 | SVI-VMPG-3020 | ||
|---|---|---|---|---|
| Field | Wide Field | Small Field | Wide Field | Small Field |
| Measurement Range | 220 × 200mm | 140 × 130mm | 320 × 200mm | 250 × 130mm |
|
Accuracy
(w/o Movement)
(Movement)
|
±3µm ±(5+0.02L)µm |
±1µm ±(3+0.02L)µm |
±3µm ±(5+0.02L)µm |
±1µm ±(3+0.02L)µm |
|
Repeatability
(w/o Movement)
(Movement)
|
±1µm ±2µm |
±0.5µm ±1.5µm |
±1µm ±2µm |
±0.5µm ±1.5µm |
| FOV | 100 × 80mm | 20 × 6mm | 100 × 80mm | 20 × 6mm |
| Glass Size | 250 × 230mm | 315 × 265mm | ||
| Travel (X/Y/Z) | 120 / 125 / 75 mm | 205 / 125 / 75 mm | ||
| Machine Size | 580 × 450 × 800mm | 580 × 500 × 800mm | ||
|
Illumination
Top Light
Back Light
Optional
|
S/W Controlled – Intensity & Position 4 Quadrant White LED ring & low angle green ring Collimated green Coaxial |
|||
| Power Supply | 220V, 50Hz, 600W | |||
| Environmental Requirement | Temp: 20°C ±2°C, RH: 30%–80%, Vibration: <0.002G, Less than 15Hz | |||
| Load Capacity | 5 Kgs | |||
| Camera | 20MP | |||
| Machine Weight | Approx. 45 Kgs | |||
