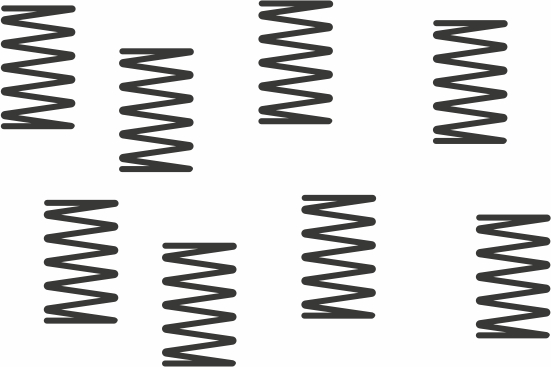

Auto Alignment β No Positioning Required
The position and orientation of the part are automatically detected and adjusted by the system. No manual alignment or jig/fixture preparation is required to begin measurement.

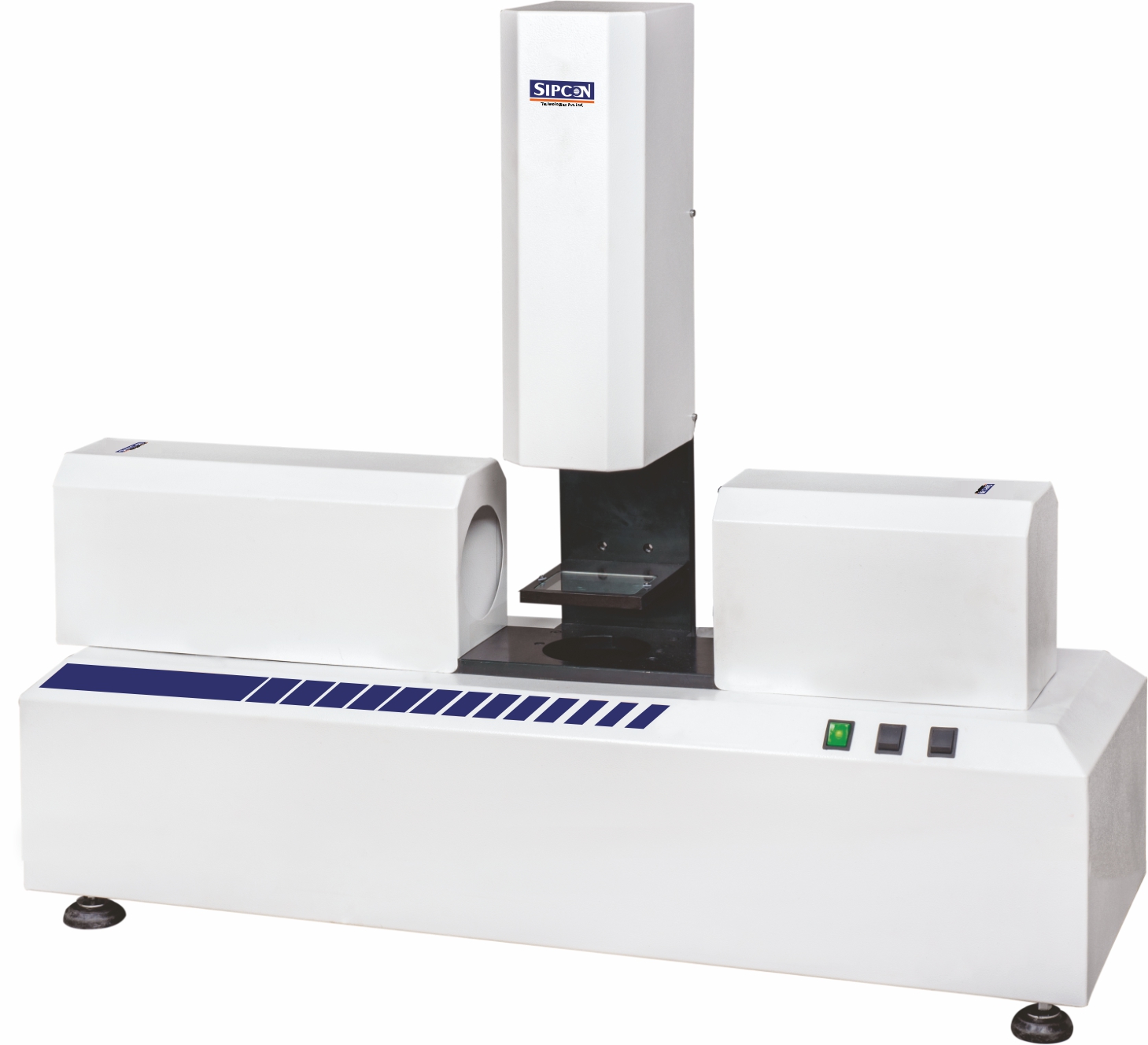

Measure all critical spring dimensions like outer diameter (OD), inner diameter (IN), pitch, wire diameter and free length instantly with a fully automatic spring measurement machine. Designed for high β speed inspection. This one click measurement system eliminates manual errors, ensures high repeatability and delivers accurate results in seconds β making it ideal for modern spring manufacturers focused on quality and productivity
The position and orientation of the part are automatically detected and adjusted by the system. No manual alignment or jig/fixture preparation is required to begin measurement.

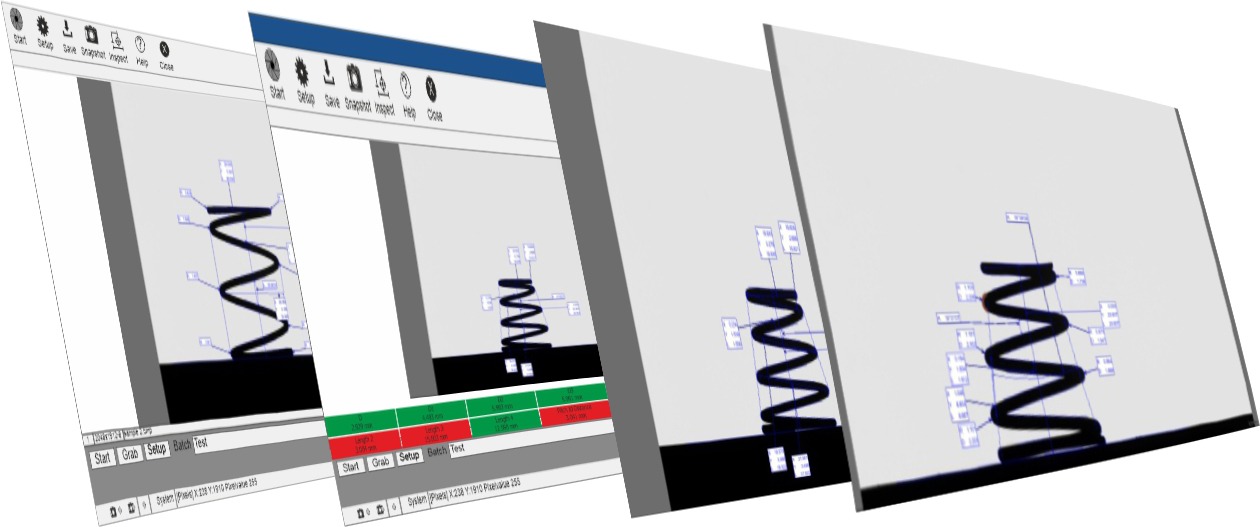

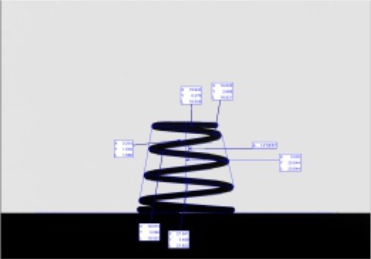

Profile deviation analysis is a key software feature that enables accurate comparison between the actual spring profile and the standard CAD drawing, ensuring precise quality validation.
| Model | SVI-PQ-16 | SVI-PQ-36 | SVI-PQ-64 | SVI-PQ-80 | SVI-PQ-120 | SVI-PQ-144 |
|---|---|---|---|---|---|---|
| Field of View (W X H) | 16x13mm | 34x29mm | 61x51mm | 80x60mm | 120x90mm | 144x110mm |
| No. of Cameras | 1 | |||||
| Camera | 5MP Industrial Camera | 12MP Industrial Camera | ||||
| Accuracy | Β±3Β΅m | Β±5Β΅m | ||||
| Repeatability | Β±2Β΅m | Β±3Β΅m | ||||
| Least Count | 0.1Β΅m | |||||
| Illumination-Surface (optional) | LED | |||||
| Illumination-Countour | LED | |||||
| Focusing Range (Optional) | 30mm | |||||
| Power Supply | 110/220V @ 50Hz Β±5% | |||||
| Machine Weight | 25Kgs to 50 Kgs | |||||
| Interface | USB/Ethernet | |||||
| Optional Hardware | Laptop with WIN7/8/10 operating system | |||||
| Base Platform & Column | Metal | |||||
| Auto Alignment | 360Β° Compensation | |||||
| Operating Temp. Range | Ambient to 30Β°C | |||||
| Max. Measurement Point | 10,000 | |||||
| Batch Programming | Optional | |||||
| Touch Screen Monitor | Optional | |||||
| Table | Optional | N.A. (Floor Standing) | ||||
with SIPCON Dimensional Measuring solutions for Spring Industry
| Parameter | Vision Measuring System (VMM) | One Click Measurement |
|---|---|---|
| Magnification Range | High magnification (adjustable depending on lens) | Fixed magnification (10xβ20x); Model 150 has dual camera, Model 100 has single |
| Chimera System | Single camera with zoom/focus | Dual Camera (Model 150); Single Camera (Model 100) |
| Part Measurement Time | 5β6 minutes even with pre-loaded programme | Few seconds, operator-free |
| Multi-Part Measurement | Not possible | Possible in single operation |
| Operator Dependency | Manual alignment, focus, and stage movement required | Fully automated, operator independent |
| Multi-view Reporting (Top, Side, etc.) | Requires separate programme and generates multiple reports | All views captured and reported in a single click |
| Sample Throughput | One sample at a time | Multiple samples at once |
| Reporting | One report per view/programme | Single consolidated report |
| Statistical Analysis (CP, CPK, Histogram) | Requires separate software and manual data entry β time consuming | Inbuilt support for CP, CPK (4Ο/6Ο) reporting with histogram charts |

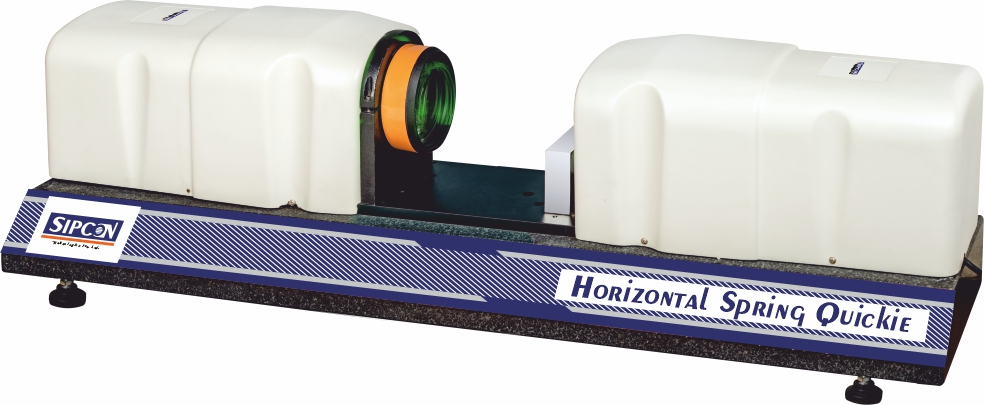

Explore our Dimensional measurement solutions for better quality control

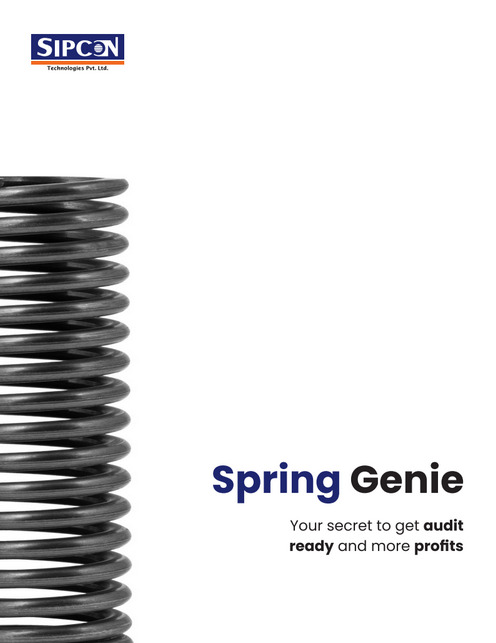

Discover how Spring Genie Measure Complex Dimensions in Seconds
.png)
Some key factors you must know before investing in Spring Genie
