What is the use of vertical profile projector?

A vertical profile projector is used to magnify and project the profile of an object onto a screen for accurate measurement and inspection of its dimensions, shapes, and angles. It helps in assessing the quality and precision of manufactured parts by comparing them to standard specifications.

How to identify verified vertical profile projector manufacturers?

Look for the certifications like ISO standards, reviewing their reputation through customer feedback, verifying authorized partnerships, assessing product quality, and ensuring reliable customer support.

What is the price of vertical profile projector in India?

A vertical profile projector in India can range from around 1.5 - 50 lakhs or more, depending on the brand, features, and specifications. Prices can vary based on the supplier and the specific model you're looking for.

From where to buy genuine vertical profile projector machine?

To buy vertical profile projector machine from a genuine manufacturer there are many suppliers and traders in the industry which provide cheap low- quality products. But we always recommend the customer purchase measuring instruments which can adhere to ISO, JIs standards etc. These instruments must be purchased only from a genuine manufacturer which provides prompt service and has a dedicated service team.

How to get a free quotation for vertical profile projector?

To receive a quote from Sipcon Technologies, just fill out the form with your requirements. Their sales team will call you back. You can also reach them at +91 82229 29966 or email info@sipconinstrument.com anytime.

Vertical Profile Projector

From the World’s Leading Manufacturer in High-Precision
Optical Measurement for Every Industry

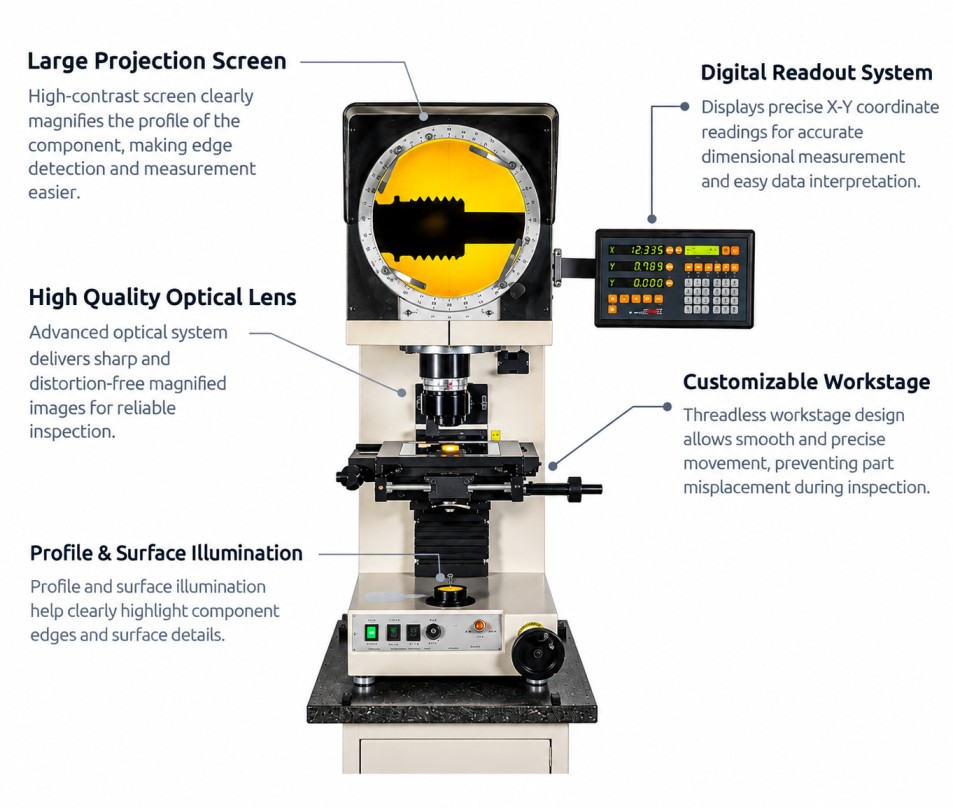

Large Projection Screen

High-contrast screen clearly magnifies the profile of the component, making edge detection and measurement easier.

High Quality Optical Lens

Advanced optical system delivers sharp and distortion-free magnified images for reliable inspection.

Profile & Surface Illumination

Profile and surface illumination help clearly highlight component edges and surface details.

Digital Readout System

Displays precise X-Y coordinate readings for accurate dimensional measurement and easy data interpretation.

Customizable Workstage

Threadless workstage design allows smooth and precise movement, preventing part misplacement during inspection.

Industry We Serve

Aluminium extrusion

Automotive

Brass

Electrical

Fastener and Gears

Medical

Pharma Packaging Industry

Rubber Industry

Technical Details

Inaccurate angle checks, inconsistent measurements and dependency on skilled operators can lead to tool rejection, poor machining quality and production losses

Field	Details
Screen Size	300 / 400 mm
Construction	Opaque glass screen with 90° cross line fitted with graduated rotary line (0–360°), operated by knob (L.C. 1 min)
Workstage Size	Standard: 100 mm × 250 mm Optional: X-axis up to 550 mm, Y-axis up to 200 mm
Light Axis	Vertical
Focusing	90 mm / 100 mm
Linear Measurement	Micrometers / Built-in glass scale
Optics	Standard: 10X Optional: 20X, 50X, 100X Mount: 3 lens turret mount / screw mount
Accuracy	Magnification: ±0.05% (Contour/Surface) Measurement: 3 + L/100 µ
Measuring System	Micrometer / D.R.O / PC-based software
Cooling System	Fan
Camera & Illumination	Contour: 24V / 150W halogen lamp with illumination control & condenser Surface: Twin 24V / 150W halogen lamps
Motorized Movement	Optional (X, Y, focusing with speed control)
Optional Hardware	Profile charts, rotary table, V-block centre holding device, Opto edge sensor, rotary encoder
Power Supply	AC 110/220V (50/60Hz), single phase
Stand	Unique rigid pedestal system for vibration-free handling of components
Resolution	Linear: 0.001 / 0.0005 mm Angular: 1 sec
Back Illumination	LED
